TEMPO 1155-5001 SIDEKICK PLUS KIT STANDARD (1155-5001) 52064728/783310013167
Available*
Item # 23649900
Model # 783310013167
$5,311.02
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Meters
Test Equipment
Subscriber Loop Tester
Multimeters-VOM-Brownie
Tempo Communications, Inc.
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

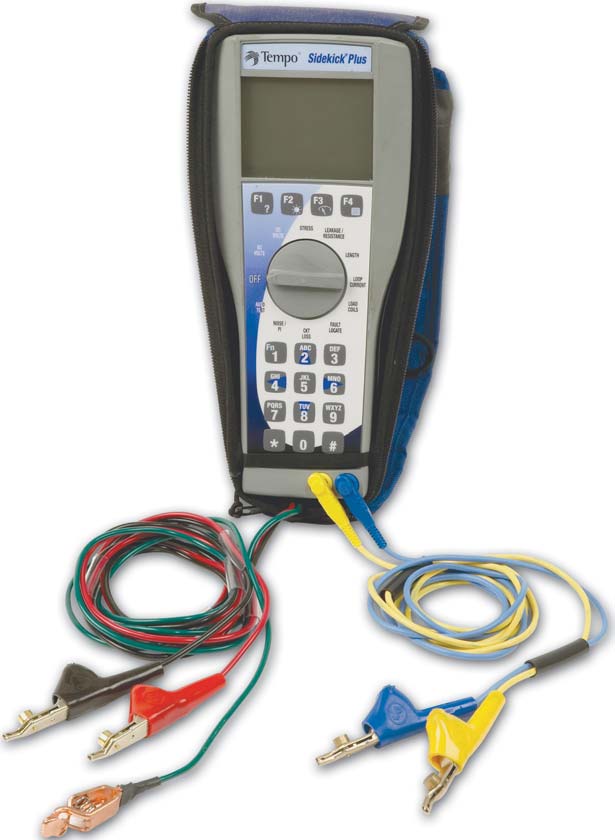

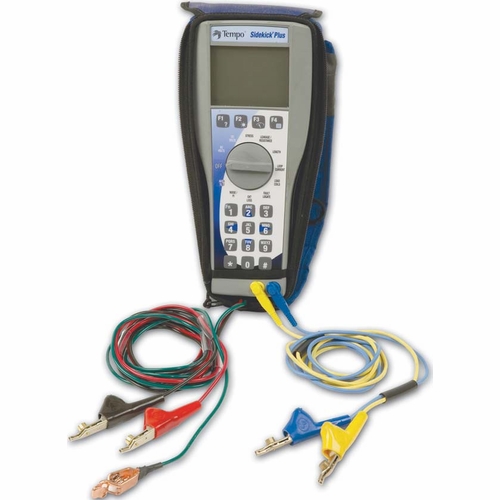

GREENLEE 1155-5001 SIDEKICK PLUS KIT STANDARD (1155-5001)
DESCRIPTION: -1 Gigaohm Insulation Resistance -Advanced Pulse TDR for improved accuracy (Step TDR option available) -Improved speed of test andmenu selection -Long lasting, Li-Ion Rechargeable Batteries -Complete metering of voltage, current and resistance on copper cables -Patented stress balance test -Measurement of distance to opens -Line quality tests for noise, loss and power influence -Multimode wire tracing tone -Resistance fault locator (RFL) and calculator -Powerful Time Domain Reflectometer (TDR) -Built-in loudspeaker dialing with phone book memory -Auto-test mode with Pass/Fail -USB download of test results and upload of software -Analog meter or digital display selectable -Big, easy-to-read 320 x 240 display with backlight -Readable in bright sunlight -Advanced cable diagnosis and troubleshooting in a single test set -Quick testing and fast repairs -Test data capture for sharing and records -Easy to learn, especially for Sidekick family users -Field upgradeable software -Grounding Resistance Testing -Optional Impulse Noise Testing to 30MHz -Optional Step Time Domain Reflectometer Upgrade
SPECIFICATIONS: -AC Voltage : 250V -Application : Diagnose and troubleshoot problems with twisted pair cable. -Battery Life : 8 Hours (Typical) -Circuit Loss : -70 to 3dBm -Circuit Noise : 0 to 90 dBrnC -DC Voltage : 300V -Environment : Rated BS EN 60529 level IP20CW -Leakage : 999 MO -Load Coil : 0 to 5 -Loop Current : 110 mA -Open : Up to 18.6 miles (30km) -Power : Li Ion -Resistance : 100 MO -RFL : yes -Storage/Operating Temperature : -Operates at -0.4 to 122° F (-18 to 50°C), 0 to 95% Humidity -Stress Balance : 0 to 82 dBrnC -Sub Brand : GREENLEE Communications -Weight : 3 lbs (1.4 kg) including battery
DESCRIPTION: -1 Gigaohm Insulation Resistance -Advanced Pulse TDR for improved accuracy (Step TDR option available) -Improved speed of test andmenu selection -Long lasting, Li-Ion Rechargeable Batteries -Complete metering of voltage, current and resistance on copper cables -Patented stress balance test -Measurement of distance to opens -Line quality tests for noise, loss and power influence -Multimode wire tracing tone -Resistance fault locator (RFL) and calculator -Powerful Time Domain Reflectometer (TDR) -Built-in loudspeaker dialing with phone book memory -Auto-test mode with Pass/Fail -USB download of test results and upload of software -Analog meter or digital display selectable -Big, easy-to-read 320 x 240 display with backlight -Readable in bright sunlight -Advanced cable diagnosis and troubleshooting in a single test set -Quick testing and fast repairs -Test data capture for sharing and records -Easy to learn, especially for Sidekick family users -Field upgradeable software -Grounding Resistance Testing -Optional Impulse Noise Testing to 30MHz -Optional Step Time Domain Reflectometer Upgrade
SPECIFICATIONS: -AC Voltage : 250V -Application : Diagnose and troubleshoot problems with twisted pair cable. -Battery Life : 8 Hours (Typical) -Circuit Loss : -70 to 3dBm -Circuit Noise : 0 to 90 dBrnC -DC Voltage : 300V -Environment : Rated BS EN 60529 level IP20CW -Leakage : 999 MO -Load Coil : 0 to 5 -Loop Current : 110 mA -Open : Up to 18.6 miles (30km) -Power : Li Ion -Resistance : 100 MO -RFL : yes -Storage/Operating Temperature : -Operates at -0.4 to 122° F (-18 to 50°C), 0 to 95% Humidity -Stress Balance : 0 to 82 dBrnC -Sub Brand : GREENLEE Communications -Weight : 3 lbs (1.4 kg) including battery
