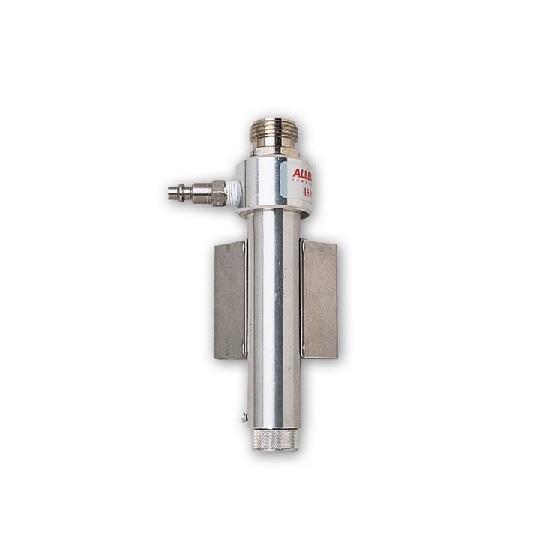

Allegro 9991 Personal Air Cooler W/ Belt & Hansen Fitting

Allegro 9991 Personal Air Cooler W/ Belt & Hansen Fitting

Vortex Tubes Are An Effective, Low Cost Solution To Respiratory Cooling Needs. With No Moving Parts, A Vortex Tube Spins Compressed Air To Separate The Air Into Cold And Hot Air Streams By Forcing The Compressed Air Through A Generation Chamber Which Spins The Air Centrifugally Along The Inner Walls At A High Rate Of Speed Toward The Control Valve. A Fraction Of The Hot Air Is Discharged At The Control Valve. The Remainder Of The Slower Air Stream Is Forced To Counter-Flow Up Through The Center Of The High-Speed Air Stream, Giving Up Heat, Through The Center Of The Generation Chamber Finally Exiting Through The Opposite End As Extremely Cold Air.

Construction: Body: Aluminum Fitting: Hansen 1/4" (.63Cm) Plug (Series 1000) Stainless Steel Belt: Nylon

Benefits: Uses Filtered Compressed Air Provides Continuous Cool Air Delivery Easy Temperature Adjustment Even With Gloved Hands No Moving Parts Exceptionally Reliable A Control Valve Allows For Temperature Adjustment Will Cool Compressed Air By 25� F Requires An Air Supply Pressure Range From 50-115 PsiRead More
