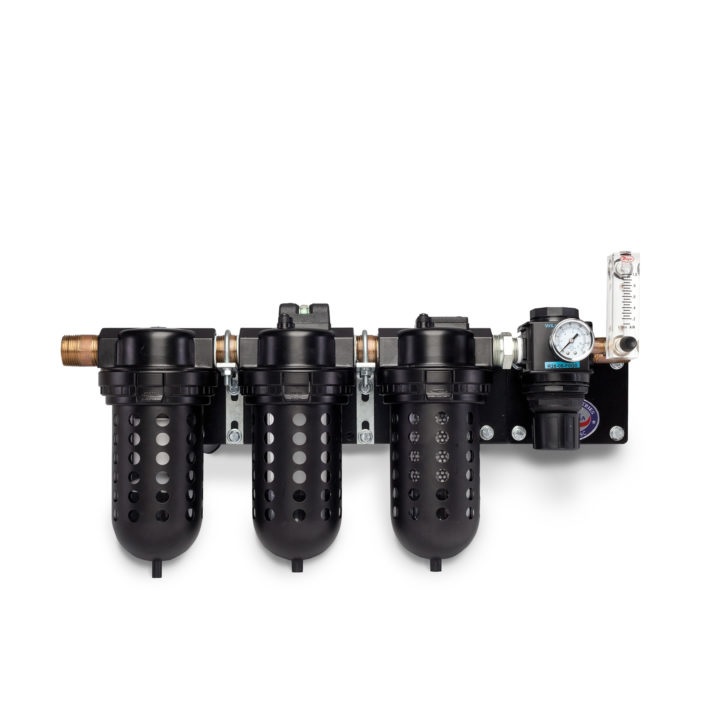

Allegro 9878-151 150 Cfm Wall Air Filter Panel W/O Co Monitor, Single Port

Allegro 9878-151 150 Cfm Wall Air Filter Panel W/O Co Monitor, Single Port Allegro Air Filtration Panels Filter Impurities And Hydrocarbons From An Air Compressor To Convert To Breathable Air. To Meet Osha Requirements, A Co Monitor Is Available For Continuous Monitoring Of Carbon Monoxide Levels. Panel Provides Up To 150 Cfm (254.8 M3 /Hr) Of Air Within A 5-125 Psi (.34-8.62 Bar) Range. Meets Niosh Requirements For Point-Ofattachment.

Construction: � 12 Gauge Black Powdered Coated Steel Mounting Bracket � All Brass Plumbing With Quick-Disconnect Hansen Couplers � Inlet Side: 1" Npt Male Nipple, Made Of Brass � Outlet Side: �" Npt Male Nipple, Made Of Brass

Filtration System: First Stage: 5 Micron Particulate Filter Element And Automatic Mechanical Drain Second Stage: 0.010 Micron Coalescing Filter Element And Manual Drain Third Stage: 0.003 Micron Activated Carbon Filter Element And Manual Drain Regulator: High Pressure, Adjusting Pressure Knob, 0-160 Psi (0-11.03 Bar) Pressure Gauge And External Relief Valve Flow Meter: Adjustable Metering Valve, Range From 0.0-1.0 Lpm

L 22" X W 10" X H 19"Read More
