Allegro 9878-150 150 CFM Wall Air Filter Panel w/ CO Monitor, Single Port

Allegro 9878-150 150 CFM Wall Air Filter Panel w/ CO Monitor, Single Port
Item# 80054610
$2,997.00
CA Prop 65 Warning Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov

Product Description

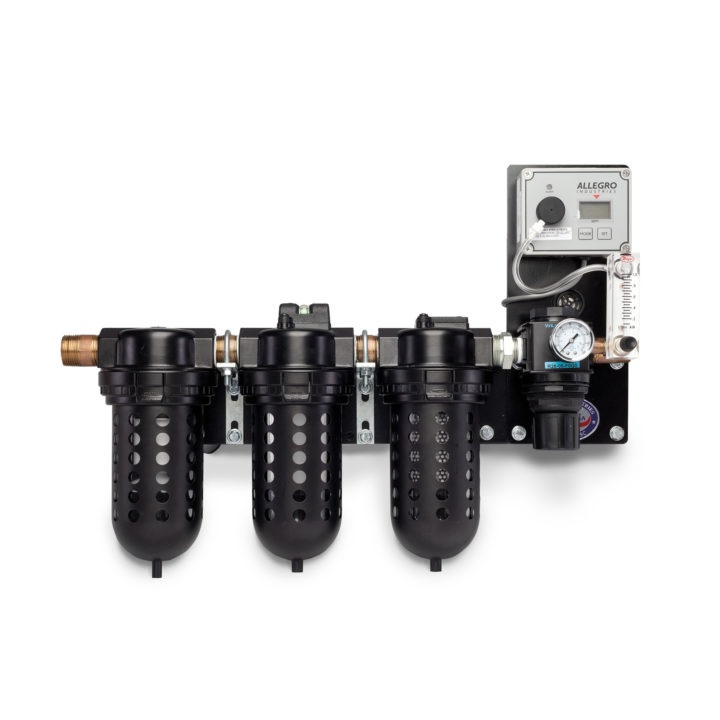

Allegro 9878-150 150 CFM Wall Air Filter Panel w/ CO Monitor, Single Port

Allegro air filtration panels filter impurities and hydrocarbons from an air compressor to convert to breathable air. To meet OSHA requirements, a CO monitor is available for continuous monitoring of carbon monoxide levels. Panel provides up to 150 CFM (254.8 m3 /hr) of air within a 5-125 PSI (.34-8.62 bar) range. Meets NIOSH requirements for point-ofattachment.

CONSTRUCTION: • 12 gauge black powdered coated steel mounting bracket • All brass plumbing with quick-disconnect Hansen couplers • Inlet side: 1" NPT male nipple, made of Brass • Outlet side: ľ" NPT male nipple, made of Brass

CO MONITOR: (Included in 9878-150 model) Power source: 115V AC to 9V DC power adapter for continuous power supply. 9V DC Alkaline battery (primary or as back-up for AC adapter). Alarm Setting: 10 PPM (Canada: 5PPM) External Connections: Optional Strobe Light Alarm. Audible: 90 decibel Piezo Alarm. Visual: External power LED light signal. Sensor: Electrochemical replaceable Display: Liquid crystal Keys: Mode & Set Modes: Normal Operation, Peak, Battery Charge and Calibration mode. Calibration: Self adjusting calibration to 20 PPM CO

FILTRATION SYSTEM: First Stage: 5 micron particulate filter element and automatic mechanical drain Second Stage: 0.010 micron coalescing filter element and manual drain Third Stage: 0.003 micron activated carbon filter element and manual drain Regulator: High pressure, adjusting pressure knob, 0-160 psi (0-11.03 bar) pressure gauge and external relief valve Flow Meter: Adjustable metering valve, range from 0.0-1.0 LPM

L 22" x W 10" x H 19"

If items is in stock it will ship same day- Images may not be of the actual item being sold.
