Allegro 9404-04 Sludge Dewatering Pump
Available*
Item # 80051970
Model # 9404-04
$522.45
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Pump Ele 2
Tools
Manhole- Confined Space
Pumps- Submersible- 110-220v
Allegro Industries
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

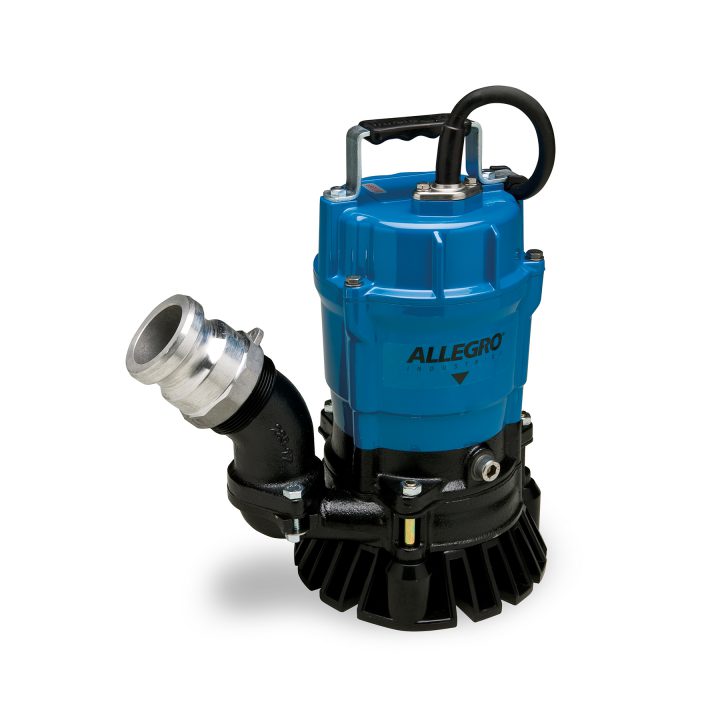

Allegro 9404-04 Sludge Dewatering Pump
Our Sludge Pump with 1/2 hp motor is excellent for pumping standing water containing sand, solids, leaves or debris at a maximum of 50 gallons per minute. Submersible to 39 feet and continuous running water level to 3 1/2 inches.
FEATURES: Impeller: Semi-vortex Urethane rubber impeller with agitator suspends solids and allows for pumping of sand and stringy material Seal: Double inside mechanical seals with silicon carbide faces, (top and bottom) Shaft: 403 stainless steel sleeve, the most durable seal design available Motor: Continuous air filled, copper wound motor with class B insulation Protection: Built in thermal & amperage sensing, protector prevents failure due to overloading or accidental run-dry conditions Bearings: Double shielded, permanently lubricated, high temperature C3 ball bearings rated for a B-10 life of 60,000 hours Discharge: Top, flow-through design, with solids handling capability 1" x 3/8" Connection: Fire hose style quick connect fittings (Cam-Lock design) Elastomers: NBR (Nitril Buna Rubber)
SPECIFICATIONS: Motor: 1/2 HP (0.4 kW) 3600 RPM 60 Hz 115V AC Single Phase Power Cable: Submersible 20’ (6.1 m) Performance Range: 53 GPM (0.2 m3/min) Head: 39 ft. (11.9 m) Max Water Temp: 104° F (40° C)
CONSTRUCTION: Casing: Ductile cast iron Impeller: Urethane rubber Shaft: 403 stainless steel Motor Frame: Aluminum alloy Fasteners: 304 stainless steel
Our Sludge Pump with 1/2 hp motor is excellent for pumping standing water containing sand, solids, leaves or debris at a maximum of 50 gallons per minute. Submersible to 39 feet and continuous running water level to 3 1/2 inches.
FEATURES: Impeller: Semi-vortex Urethane rubber impeller with agitator suspends solids and allows for pumping of sand and stringy material Seal: Double inside mechanical seals with silicon carbide faces, (top and bottom) Shaft: 403 stainless steel sleeve, the most durable seal design available Motor: Continuous air filled, copper wound motor with class B insulation Protection: Built in thermal & amperage sensing, protector prevents failure due to overloading or accidental run-dry conditions Bearings: Double shielded, permanently lubricated, high temperature C3 ball bearings rated for a B-10 life of 60,000 hours Discharge: Top, flow-through design, with solids handling capability 1" x 3/8" Connection: Fire hose style quick connect fittings (Cam-Lock design) Elastomers: NBR (Nitril Buna Rubber)
SPECIFICATIONS: Motor: 1/2 HP (0.4 kW) 3600 RPM 60 Hz 115V AC Single Phase Power Cable: Submersible 20’ (6.1 m) Performance Range: 53 GPM (0.2 m3/min) Head: 39 ft. (11.9 m) Max Water Temp: 104° F (40° C)
CONSTRUCTION: Casing: Ductile cast iron Impeller: Urethane rubber Shaft: 403 stainless steel Motor Frame: Aluminum alloy Fasteners: 304 stainless steel
