Allegro 9404-02 Standard Dewatering Pump
Available*
Item # 80051965
Model # 9404-02
$616.01
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Pump Ele 2
Tools
Manhole- Confined Space
Pumps- Submersible- 110-220v
Allegro Industries
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

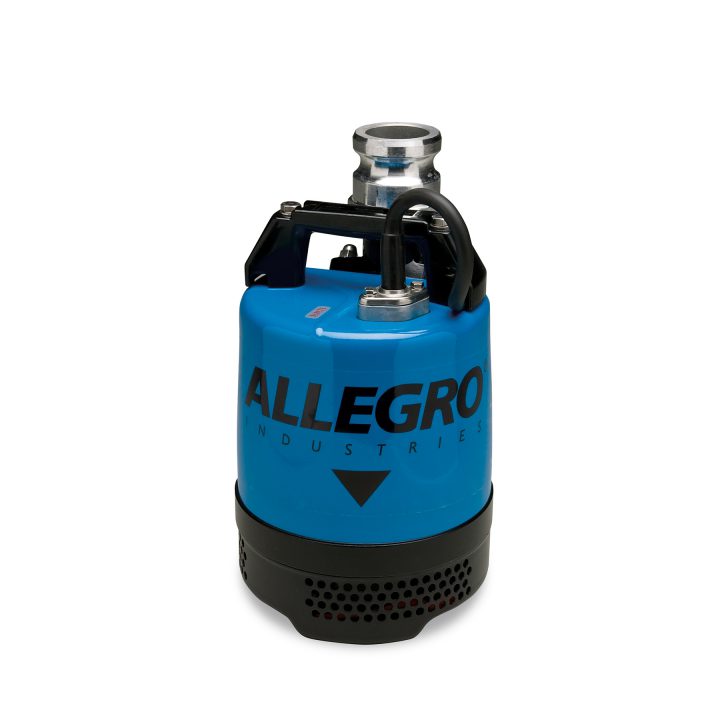

Allegro 9404-02 Standard Dewatering Pump
Our Standard Dewatering Pump is excellent for manholes, vaults, construction sites, and all dewatering needs. Offers top discharging while allowing continuous operation in low water levels. Includes synthetic rubber wear parts, vortex impeller, and fire hose quick connect fitting. Easy disassembly with one 12mm box/socket wrench.
FEATURES: Impeller: Simi-Vortex, urethane rubber with ethylene propylene rubber casing Seal: Double inside mechanical seals with silicon carbide faces (top and bottom) Shaft: 403 stainless steel sleeve Motor: Continuous air filled, copper wound motor with class B insulation Protection: Built in thermal and amperage sensing, protector prevents failure due to overloading or accidental run dry conditions Bearings: Double-shielded, permanently lubricated, high temperature C3 ball bearings rated for B-10 life of 60,000 hours Discharge: Top, flow-through design with solids handling capability Connection: Fire hose-style quick connect fittings (cam-lock design) Elastomers: NBR (Nitril Buna Rubber)
SPECIFICATIONS: Motor: 2/3 HP (0.4 kW) 3600 RPM 60 Hz 115V AC Single Phase Power Cable: Submersible 32’ (9.75 m) Performance Range: 63.4 GPM (0.24 m3/min) Head: 39.5 ft. (12 m) Maximum Water Temp: 104° F (40° C)
CONSTRUCTION: Casing: Ethylene propylene rubber Impeller: Urethane rubber Shaft: 403 stainless steel Motor Frame: Aluminum alloy Fasteners: 304 stainless steel
Our Standard Dewatering Pump is excellent for manholes, vaults, construction sites, and all dewatering needs. Offers top discharging while allowing continuous operation in low water levels. Includes synthetic rubber wear parts, vortex impeller, and fire hose quick connect fitting. Easy disassembly with one 12mm box/socket wrench.
FEATURES: Impeller: Simi-Vortex, urethane rubber with ethylene propylene rubber casing Seal: Double inside mechanical seals with silicon carbide faces (top and bottom) Shaft: 403 stainless steel sleeve Motor: Continuous air filled, copper wound motor with class B insulation Protection: Built in thermal and amperage sensing, protector prevents failure due to overloading or accidental run dry conditions Bearings: Double-shielded, permanently lubricated, high temperature C3 ball bearings rated for B-10 life of 60,000 hours Discharge: Top, flow-through design with solids handling capability Connection: Fire hose-style quick connect fittings (cam-lock design) Elastomers: NBR (Nitril Buna Rubber)
SPECIFICATIONS: Motor: 2/3 HP (0.4 kW) 3600 RPM 60 Hz 115V AC Single Phase Power Cable: Submersible 32’ (9.75 m) Performance Range: 63.4 GPM (0.24 m3/min) Head: 39.5 ft. (12 m) Maximum Water Temp: 104° F (40° C)
CONSTRUCTION: Casing: Ethylene propylene rubber Impeller: Urethane rubber Shaft: 403 stainless steel Motor Frame: Aluminum alloy Fasteners: 304 stainless steel
