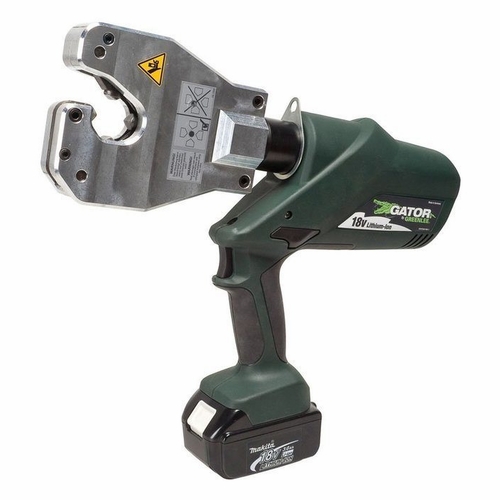

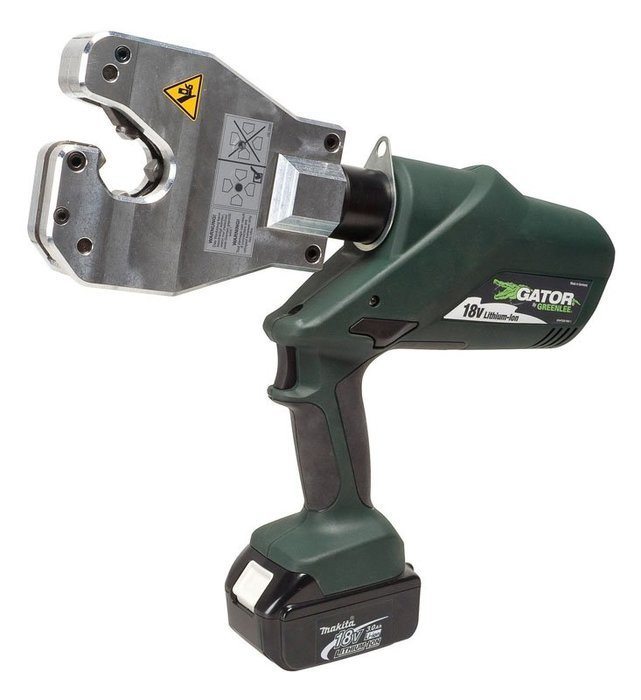

GREENLEE EK06ATCL120 CRIMP TOOL INSULATED DIELESS AT 120V AC ADPT 52048095/783310520610
Available*
Item # 80006324
Model # 783310520610
$5,744.72
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Htap
Tools
Hand Tools
Connectors- Ctap-Crimp-on
Greenlee Textron
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GREENLEE EK06ATCL120 CRIMP TOOL,INSUL DIELESS AT 120V AC ADPT 52048095/783310520610 NEW
DESCRIPTION: CRIMP TOOL,INSUL DIELESS AT 120V AC ADPT
Intelligent Crimping SystemTechnology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy LED light provides the operator with the battery charge and tool maintenance status Two-stage hydraulic system provides fast advance and power speeds, saving time Forward handle position improves tool balance One trigger controls all tool functions Crimping head rotates 350° Tools automatically retract when the crimping cycle is complete Overmolded tacky grip areas make gripping the tool easier and more comfortable LED work light illuminates dark work areas GREENLEE battery-powered crimping tools now use bio-degradable oil Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life Utilizes four indentors to make the crimp Flip-top style uses a pull pin to open head for easy removal from the connector U.S. Patents #6,206,663 and #6,065,326 Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger
SPECIFICATIONS:
Accessory : 52178 UPC 52178 120 V Charger Battery : 18 V, 3.0 AMP-HR Lithium-Ion Battery Charge Time : 1 HR Crimping Capacity : 6 AWG - 500 KCMIL Copper Lugs And Copper Splices, 6 AWG - 400 KCMIL Aluminum Lugs And Aluminum Splices Crimping Force : 12400.000 LB (55.000 KN) Overall Length : 14.000 IN (355.000 MM) Replacement Part : 52176 UPC 52176 18 V 3.0 AMP-HR Li-ion Battery, 10118 UPC 10118 Carrying Case, 12274 UPC 12274 Carrying Strap, 52178 UPC 52178 120 V Charger, 52179 UPC 52179 12 V Charger, 52180 UPC 52180 230 V Charger Standard : C/US UL Listed Sub Brand : Gator Type : Battery Powered, Quad Point Dieless
WEIGHT: 12.000 LB (5.400 KG)
CAT #: EK06ATCL120 UPC #: 52048095/783310520610
PRODUCTS > Cable Termination > CCX TOOLS > 12T Corded Crimper/Cutters > CRIMP TOOL,INSUL DIELESS AT 120V AC ADPT
DESCRIPTION: CRIMP TOOL,INSUL DIELESS AT 120V AC ADPT
Intelligent Crimping SystemTechnology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy LED light provides the operator with the battery charge and tool maintenance status Two-stage hydraulic system provides fast advance and power speeds, saving time Forward handle position improves tool balance One trigger controls all tool functions Crimping head rotates 350° Tools automatically retract when the crimping cycle is complete Overmolded tacky grip areas make gripping the tool easier and more comfortable LED work light illuminates dark work areas GREENLEE battery-powered crimping tools now use bio-degradable oil Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life Utilizes four indentors to make the crimp Flip-top style uses a pull pin to open head for easy removal from the connector U.S. Patents #6,206,663 and #6,065,326 Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger
SPECIFICATIONS:
Accessory : 52178 UPC 52178 120 V Charger Battery : 18 V, 3.0 AMP-HR Lithium-Ion Battery Charge Time : 1 HR Crimping Capacity : 6 AWG - 500 KCMIL Copper Lugs And Copper Splices, 6 AWG - 400 KCMIL Aluminum Lugs And Aluminum Splices Crimping Force : 12400.000 LB (55.000 KN) Overall Length : 14.000 IN (355.000 MM) Replacement Part : 52176 UPC 52176 18 V 3.0 AMP-HR Li-ion Battery, 10118 UPC 10118 Carrying Case, 12274 UPC 12274 Carrying Strap, 52178 UPC 52178 120 V Charger, 52179 UPC 52179 12 V Charger, 52180 UPC 52180 230 V Charger Standard : C/US UL Listed Sub Brand : Gator Type : Battery Powered, Quad Point Dieless
WEIGHT: 12.000 LB (5.400 KG)
CAT #: EK06ATCL120 UPC #: 52048095/783310520610
PRODUCTS > Cable Termination > CCX TOOLS > 12T Corded Crimper/Cutters > CRIMP TOOL,INSUL DIELESS AT 120V AC ADPT
