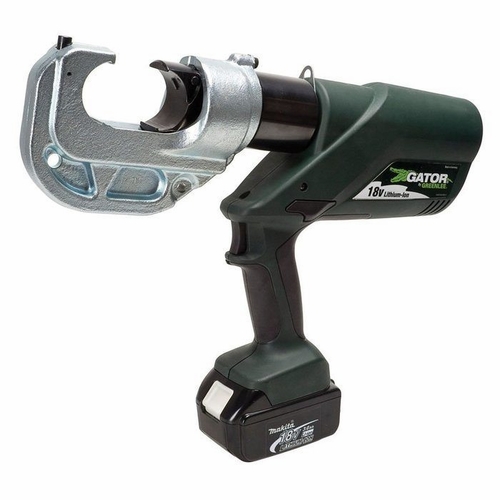

EK1240L11 Crimp Tool, 12T-LI Battery 120V Charger 52047187/783310102274 n
Available*
Item # 80006355
Model # 783310102274
$5,020.96
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Htap
Tools
Hand Tools
Connectors- Ctap-Crimp-on
Greenlee Textron
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

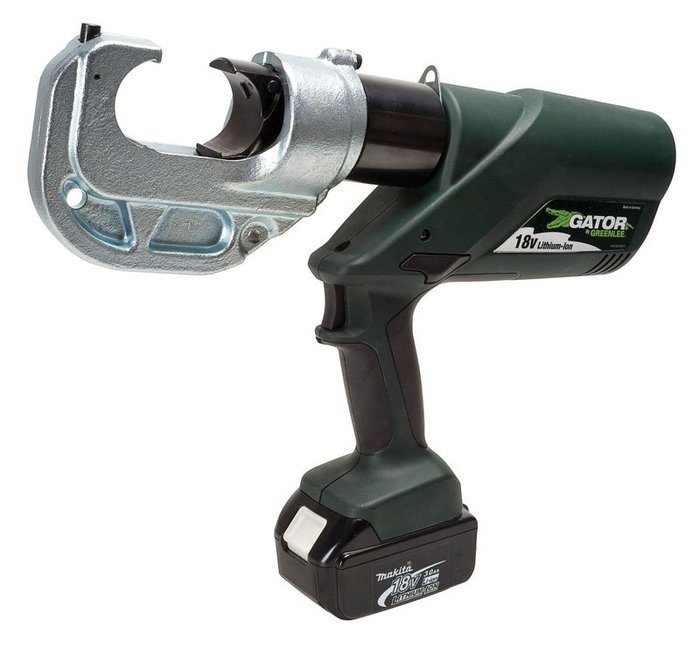

GREENLEE EK1240L11 Crimp Tool, 12T-LI Battery 120V Charger 52047187/783310102274
EKL11 Crimp Tool, 12T-LI Battery 120V Charger 52047187/783310102274 new
DESCRIPTION: CRIMP TOOL,K12T-230VAC ADPT
Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy LED light provides the operator with the battery charge and tool maintenance status Two-stage hydraulic system provides fast advance and power speeds, saving time Forward handle position improves tool balance One trigger controls all tool functions Crimping head rotates 350° Tools automatically retract when the crimping cycle is complete Overmolded tacky grip areas make gripping the tool easier and more comfortable LED work light illuminates dark work areas GREENLEE battery-powered crimping tools now use bio-degradable oil Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger Three crimping head choices: EK1230L with 1.20 IN (30mm) opening uses GREENLEE KC12, KA12 & KD12 crimping dies plus all industry U style crimping dies, EK1240L with 1.65 IN (42mm) opening uses GREENLEE KC12, KA12 & KD12 crimping dies plus all industry U style crimping dies, EK1240KL uses Kearney PH2 style crimping dies Covered head models have two layers of PVC that total approximately 3/16 IN (4.8 mm) thick. The outer layer is black and the inner layer is red U.S. Patents #6,206,663 and #6,065,326
SPECIFICATIONS:
Accessory : 12274 UPC 12274 Carrying Strap Battery : 18 V, 3.0 AMP-HR Lithium-Ion Crimping Capacity : 8 AWG - 750 KCMIL Copper Color Coded Lugs And Splices Crimping Force : 24000.000 LB (106.000 KN) Estimated Cycles per Charge : 90 Opening Size : 1.650 IN (42.000 MM) Overall Length : 16-1/4 IN (413.000 MM) Replacement Part : 52176 UPC 52176 18 V 3.0 AMP-HR Li-ion Battery, 10118 UPC 10118 EK1230L & EK1240L Carrying Case, 52178 UPC 52178 120 V Charger, 52179 UPC 52179 12 V Charger, 52180 UPC 52180 230 VCharger Rotation : 350° Standard : C/US UL Listed Sub Brand : Gator Type : Battery Powered
WEIGHT: 15.000 LB (6.800 KG)
CAT #: EK1240L11 UPC #: 52047187/783310102274
PRODUCTS > Cable Termination > DIE CABLE CRIMPERS > Battery-12 Ton > CRIMP TOOL, 12T-LI BAT 120V CHRG
EKL11 Crimp Tool, 12T-LI Battery 120V Charger 52047187/783310102274 new
DESCRIPTION: CRIMP TOOL,K12T-230VAC ADPT
Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy LED light provides the operator with the battery charge and tool maintenance status Two-stage hydraulic system provides fast advance and power speeds, saving time Forward handle position improves tool balance One trigger controls all tool functions Crimping head rotates 350° Tools automatically retract when the crimping cycle is complete Overmolded tacky grip areas make gripping the tool easier and more comfortable LED work light illuminates dark work areas GREENLEE battery-powered crimping tools now use bio-degradable oil Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger Three crimping head choices: EK1230L with 1.20 IN (30mm) opening uses GREENLEE KC12, KA12 & KD12 crimping dies plus all industry U style crimping dies, EK1240L with 1.65 IN (42mm) opening uses GREENLEE KC12, KA12 & KD12 crimping dies plus all industry U style crimping dies, EK1240KL uses Kearney PH2 style crimping dies Covered head models have two layers of PVC that total approximately 3/16 IN (4.8 mm) thick. The outer layer is black and the inner layer is red U.S. Patents #6,206,663 and #6,065,326
SPECIFICATIONS:
Accessory : 12274 UPC 12274 Carrying Strap Battery : 18 V, 3.0 AMP-HR Lithium-Ion Crimping Capacity : 8 AWG - 750 KCMIL Copper Color Coded Lugs And Splices Crimping Force : 24000.000 LB (106.000 KN) Estimated Cycles per Charge : 90 Opening Size : 1.650 IN (42.000 MM) Overall Length : 16-1/4 IN (413.000 MM) Replacement Part : 52176 UPC 52176 18 V 3.0 AMP-HR Li-ion Battery, 10118 UPC 10118 EK1230L & EK1240L Carrying Case, 52178 UPC 52178 120 V Charger, 52179 UPC 52179 12 V Charger, 52180 UPC 52180 230 VCharger Rotation : 350° Standard : C/US UL Listed Sub Brand : Gator Type : Battery Powered
WEIGHT: 15.000 LB (6.800 KG)
CAT #: EK1240L11 UPC #: 52047187/783310102274
PRODUCTS > Cable Termination > DIE CABLE CRIMPERS > Battery-12 Ton > CRIMP TOOL, 12T-LI BAT 120V CHRG
