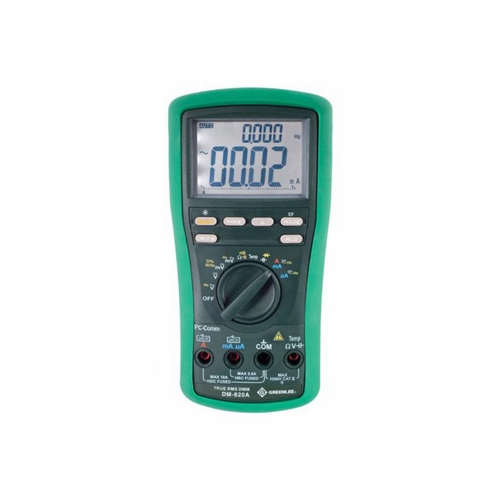

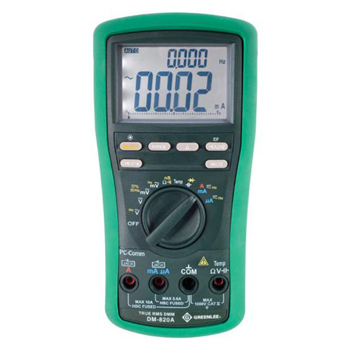

GREENLEE DM-820A-C DMM TRMS AC/DC(DM-820A)(CALIB) 52047813/783310357605
Available*
Item # 80006277
Model # 783310357605
$394.73
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Multimeter
Test Equipment
Multimeters-VOM-Brownie
Digital
Greenlee Textron
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GREENLEE DM-820A-C DMM,TRMS,AC/DC(DM-820A)(CALIB) 52047813/783310357605 NEW
DESCRIPTION: DMM,TRMS,AC/DC(DM-820A)(CALIB)
True RMS for no-compromise accuracy Measures voltage, current, resistance, capacitance and frequency Tests continuity and diodes Backlit LCD With Dual 10,000 Count Displays BeepJack warns when test leads are incorrectly inserted in current measurement terminals Automatic and manual range selection Relative offset mode to see changes in measurements Data hold Use optional USB interface DMSC-9U for direct-to-PC logging Lifetime Limited Warranty Crest Capture (Peak Hold) Plus Recording Of Max, Min, Max-Min Average Two Voltage Detection Modes - Non-Contact Or Using A Single Test Lead One Temperature Measurement Using A Type K Thermocouple Conductance Measurement Accessories included: (1)9V battery, bead temperature probe (DM-820A, DM-830A only, 400°F/204°C max), test leads, protective boot, carrying case Includes Certificate of Calibration
SPECIFICATIONS:
Amperage Measurement : 600, 6000?A; 60, 600mA; 6, 10A Battery : (1) 9 V Capacitance : 60, 600nF; 6, 60, 600?F; 6, 25 mF Conductance : 99.99 nS Display : Backlit LCD With Dual 10,000 Count Frequency Measurement : 15Hz- 50kHz Sine Wave, 5Hz - 1MHz Logic Level Square Wave Includes : (1) 9V Battery, Bead Temperature Probe (DM-820A, DM-830A Only, 400°F/204°C Max), Test Leads, Protective Boot, Carrying Case Measurement Category : CAT IV, 1000 V Replacement Part : TC-20 Carrying Case, TSG-3 Sure-Grip Test Leads, TPB Bead Temperature Probe (Included With DM-820A, DM-830A) Resistance Measurement : 600?; 6, 60, 600 k?; 6, 60 M? Standard : CAT IV, C/UL US Listed, TRUE RMS, CE Listed Temperature Rating : K Type, -58 To 1832°F (-50 To 1000°C) Type : Digital Voltage Measurement : 60, 600 mV, 9.999, 99.99, 999.9 V
WEIGHT: 2.43 lbs
CAT #: DM-820A-C UPC #: 52047813/783310357605
PRODUCTS > Electric Test Instruments > MULTIMETERS > C/I Digital Multimeters > DMM,TRMS,AC/DC(DM-820A)(CALIB)
DESCRIPTION: DMM,TRMS,AC/DC(DM-820A)(CALIB)
True RMS for no-compromise accuracy Measures voltage, current, resistance, capacitance and frequency Tests continuity and diodes Backlit LCD With Dual 10,000 Count Displays BeepJack warns when test leads are incorrectly inserted in current measurement terminals Automatic and manual range selection Relative offset mode to see changes in measurements Data hold Use optional USB interface DMSC-9U for direct-to-PC logging Lifetime Limited Warranty Crest Capture (Peak Hold) Plus Recording Of Max, Min, Max-Min Average Two Voltage Detection Modes - Non-Contact Or Using A Single Test Lead One Temperature Measurement Using A Type K Thermocouple Conductance Measurement Accessories included: (1)9V battery, bead temperature probe (DM-820A, DM-830A only, 400°F/204°C max), test leads, protective boot, carrying case Includes Certificate of Calibration
SPECIFICATIONS:
Amperage Measurement : 600, 6000?A; 60, 600mA; 6, 10A Battery : (1) 9 V Capacitance : 60, 600nF; 6, 60, 600?F; 6, 25 mF Conductance : 99.99 nS Display : Backlit LCD With Dual 10,000 Count Frequency Measurement : 15Hz- 50kHz Sine Wave, 5Hz - 1MHz Logic Level Square Wave Includes : (1) 9V Battery, Bead Temperature Probe (DM-820A, DM-830A Only, 400°F/204°C Max), Test Leads, Protective Boot, Carrying Case Measurement Category : CAT IV, 1000 V Replacement Part : TC-20 Carrying Case, TSG-3 Sure-Grip Test Leads, TPB Bead Temperature Probe (Included With DM-820A, DM-830A) Resistance Measurement : 600?; 6, 60, 600 k?; 6, 60 M? Standard : CAT IV, C/UL US Listed, TRUE RMS, CE Listed Temperature Rating : K Type, -58 To 1832°F (-50 To 1000°C) Type : Digital Voltage Measurement : 60, 600 mV, 9.999, 99.99, 999.9 V
WEIGHT: 2.43 lbs
CAT #: DM-820A-C UPC #: 52047813/783310357605
PRODUCTS > Electric Test Instruments > MULTIMETERS > C/I Digital Multimeters > DMM,TRMS,AC/DC(DM-820A)(CALIB)
