GREENLEE 6001-22 PULLER ASSEMBLY CABLE-220V 50314661/783310314660
Available*
Item # 80004927
Model # 783310314660
$13,048.80
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Tuggers
Tools
Line Construction- Placing
Puller- Tuggers- Winches
Greenlee Textron
Pullers-Tuggers-Winches
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

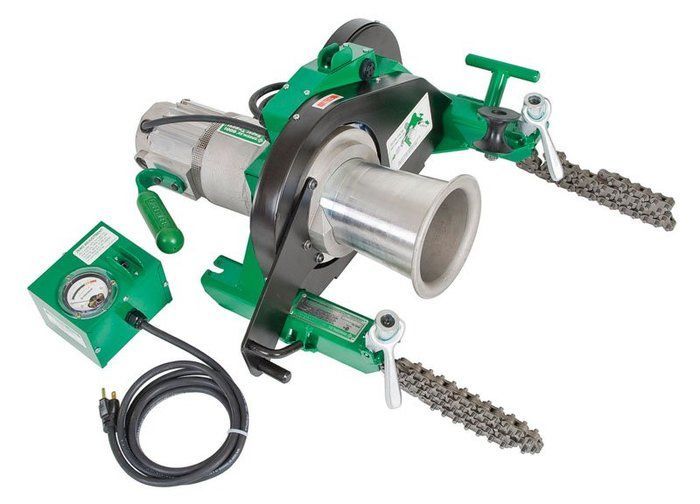

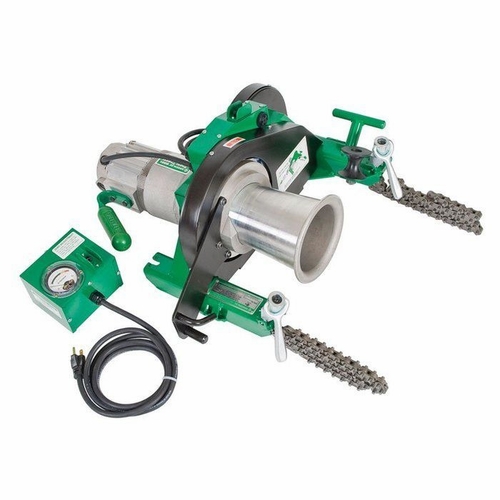

GREENLEE 6001-22 PULLER ASSEMBLY,CABLE-220V 50314661/783310314660 NEW
DESCRIPTION: PULLER ASSEMBLY,CABLE-220V
Pull up to 6,500 lbs. (28.9 kN) with less than 27 lbs. (120 N) of operator effort Unique floor mounting attachment for quick, reliable setup Leaf-type mounting chains won't twist when tightening Heat-treated steel serrated gripper feet for secure mounting to conduit Force Gauge included to constantly monitor the pull Right-angle sheave allows the operator to stand out of the direct line of force Audio alarm high force warning and circuit breaker shut off at maximum force for added safety Tapered capstan and patented rope guidance system for better control of the rope when feeding onto the capstan Patented
SPECIFICATIONS:
Accessory : 35098 UPC 35098 Double-Braided Composite Rope 3/4 IN x 300 FT (19.100 MM x 91.000 M), 35100 UPC 35100 Double-Braided Composite Rope 3/4 IN x 600 FT (19.100 MM x 182.000 M), 35101 UPC 35101 Double-Braided Composite Rope 3/4 IN x 1,200 FT (19.100 MM x 365.0 M) Drive Motor : 1-1/2 hp, 220 VAC, 50 Hz Includes : Force Gauge And Vise Chains Pulling Force : 6500.000 LB (28.900 KN) Maximum, 4500.000 LB (20.000 KN) Continuous Pulling Rope : 3/4 IN (19.100 MM) Double-Braided Composite, Rated At 26000LB (115.600 KN) Pulling Speeds : 16.5 FTPM At No Load, (8.800 KN) - 11 (3.4) At 2000 LB, (17.900 KN) - 7.5 (2.3) At 4000 LB, (26.700 KN) - 6 (1.8) At 6000 LB Sub Brand : Super Tugger
WEIGHT: 108 LB (49 KG)
CAT #: 6001-22 UPC #: 50314661/783310314660
PRODUCTS > Pulling > CABLE PULLERS > 6000 Series Super Tuggers > PULLER ASSEMBLY,CABLE-220V
DESCRIPTION: PULLER ASSEMBLY,CABLE-220V
Pull up to 6,500 lbs. (28.9 kN) with less than 27 lbs. (120 N) of operator effort Unique floor mounting attachment for quick, reliable setup Leaf-type mounting chains won't twist when tightening Heat-treated steel serrated gripper feet for secure mounting to conduit Force Gauge included to constantly monitor the pull Right-angle sheave allows the operator to stand out of the direct line of force Audio alarm high force warning and circuit breaker shut off at maximum force for added safety Tapered capstan and patented rope guidance system for better control of the rope when feeding onto the capstan Patented
SPECIFICATIONS:
Accessory : 35098 UPC 35098 Double-Braided Composite Rope 3/4 IN x 300 FT (19.100 MM x 91.000 M), 35100 UPC 35100 Double-Braided Composite Rope 3/4 IN x 600 FT (19.100 MM x 182.000 M), 35101 UPC 35101 Double-Braided Composite Rope 3/4 IN x 1,200 FT (19.100 MM x 365.0 M) Drive Motor : 1-1/2 hp, 220 VAC, 50 Hz Includes : Force Gauge And Vise Chains Pulling Force : 6500.000 LB (28.900 KN) Maximum, 4500.000 LB (20.000 KN) Continuous Pulling Rope : 3/4 IN (19.100 MM) Double-Braided Composite, Rated At 26000LB (115.600 KN) Pulling Speeds : 16.5 FTPM At No Load, (8.800 KN) - 11 (3.4) At 2000 LB, (17.900 KN) - 7.5 (2.3) At 4000 LB, (26.700 KN) - 6 (1.8) At 6000 LB Sub Brand : Super Tugger
WEIGHT: 108 LB (49 KG)
CAT #: 6001-22 UPC #: 50314661/783310314660
PRODUCTS > Pulling > CABLE PULLERS > 6000 Series Super Tuggers > PULLER ASSEMBLY,CABLE-220V
