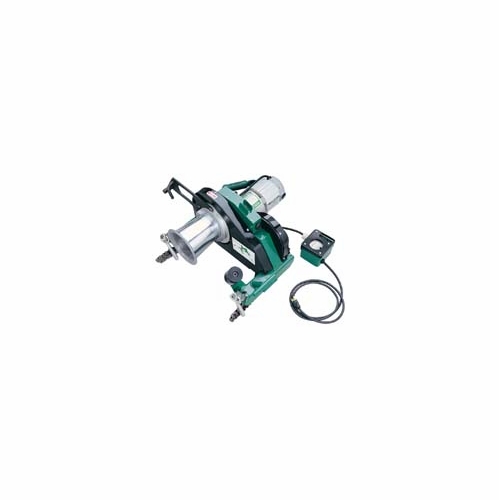

GREENLEE 6001 SUPER TUGGER CABLE PULLER POWER UNIT 50296272/ 783310296270 NEW
DESCRIPTION:
Pull up to 6,500 lbs. (28.9 kN) with less than 27 lbs. (120 N) of operator effort Unique floor mounting attachment for quick, reliable setup Leaf-type mounting chains won't twist when tightening Heat-treated steel serrated gripper feet for secure mounting to conduit Force Gauge included to constantly monitor the pull Right-angle sheave allows the operator to stand out of the direct line of force Audio alarm high force warning and circuit breaker shut off at maximum force for added safety Tapered capstan and patented rope guidance system for better control of the rope when feeding onto the capstan Patented
SPECIFICATIONS:
Accessory : 35098 UPC 35098 Double-Braided Composite Rope 3/4 IN x 300 FT (19.100 MM x 91.000 M), 35100 UPC 35100 Double-Braided Composite Rope 3/4 IN x 600 FT (19.100 MM x 182.000 M), 35101 UPC 35101 Double-Braided Composite Rope 3/4 IN x 1,200 FT (19.100 MM x 365.0 M) Drive Motor : 1-1/2 hp, 120 VAC, 16 Hz, 20 Amp Includes : Force Gauge And Vise Chains Pulling Force : 6500.000 LB (28.900 KN) Maximum, 4500.000 LB (20.000 KN) Continuous Pulling Rope : 3/4 IN (19.100 MM) Double-Braided Composite, Rated At 26000 LB (115.600 KN) Pulling Speeds : 16.5 FTPM At No Load, (8.800 KN) - 11 (3.4) At 2000 LB, (17.900 KN) - 7.5 (2.3) At 4000 LB, (26.700 KN) - 6 (1.8) At 6000 LB Sub Brand : Super Tugger Weight : 108.000 LB (49.000 KG)
Cat No: 6001 UPC No: 783310296270 Products > Pulling > CABLE PULLERS > 6000 Series Super Tuggers > PULLER, CABLE
DESCRIPTION:
Pull up to 6,500 lbs. (28.9 kN) with less than 27 lbs. (120 N) of operator effort Unique floor mounting attachment for quick, reliable setup Leaf-type mounting chains won't twist when tightening Heat-treated steel serrated gripper feet for secure mounting to conduit Force Gauge included to constantly monitor the pull Right-angle sheave allows the operator to stand out of the direct line of force Audio alarm high force warning and circuit breaker shut off at maximum force for added safety Tapered capstan and patented rope guidance system for better control of the rope when feeding onto the capstan Patented
SPECIFICATIONS:
Accessory : 35098 UPC 35098 Double-Braided Composite Rope 3/4 IN x 300 FT (19.100 MM x 91.000 M), 35100 UPC 35100 Double-Braided Composite Rope 3/4 IN x 600 FT (19.100 MM x 182.000 M), 35101 UPC 35101 Double-Braided Composite Rope 3/4 IN x 1,200 FT (19.100 MM x 365.0 M) Drive Motor : 1-1/2 hp, 120 VAC, 16 Hz, 20 Amp Includes : Force Gauge And Vise Chains Pulling Force : 6500.000 LB (28.900 KN) Maximum, 4500.000 LB (20.000 KN) Continuous Pulling Rope : 3/4 IN (19.100 MM) Double-Braided Composite, Rated At 26000 LB (115.600 KN) Pulling Speeds : 16.5 FTPM At No Load, (8.800 KN) - 11 (3.4) At 2000 LB, (17.900 KN) - 7.5 (2.3) At 4000 LB, (26.700 KN) - 6 (1.8) At 6000 LB Sub Brand : Super Tugger Weight : 108.000 LB (49.000 KG)
Cat No: 6001 UPC No: 783310296270 Products > Pulling > CABLE PULLERS > 6000 Series Super Tuggers > PULLER, CABLE
