GREENLEE 6004 PULLER PACKAGE CABLE (6004) 52026624/783310563587
Available*
Item # 80004948
Model # 783310563587
$15,173.84
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Tuggers
Tools
Line Construction- Placing
Puller- Tuggers- Winches
Greenlee Textron
Pullers-Tuggers-Winches
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

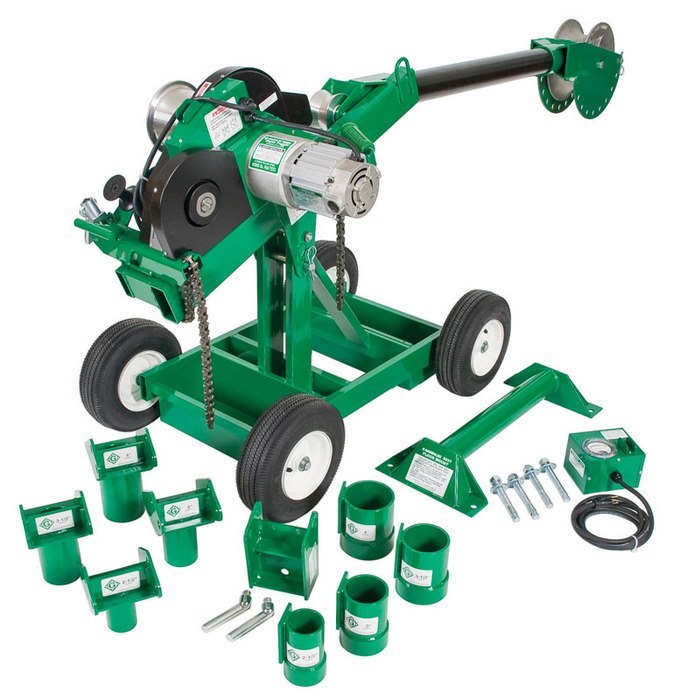

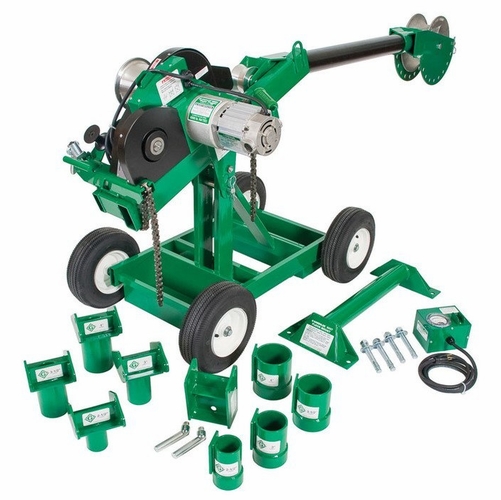

GREENLEE 6004 PULLER PACKAGE,CABLE (6004) 52026624/783310563587 NEW
DESCRIPTION: PULLER PACKAGE,CABLE (6004)
Pull up to 6,500 lbs. (28.9 kN) with less than 27 lbs. (120 N) of operator effort Unique floor mounting attachment for quick, reliable setup Leaf-type mounting chains won't twist when tightening Heat-treated steel serrated gripper feet for secure mounting to conduit Force Gauge included to constantly monitor the pull Right-angle sheave allows the operator to stand out of the direct line of force Audio alarm high force warning and circuit breaker shut off at maximum force for added safety Tapered capstan and patented rope guidance system for better control of the rope when feeding onto the capstan Patented
SPECIFICATIONS:
Accessory : 35098 UPC 35098 Double-Braided Composite Rope 3/4 IN x 300 FT (19.100 MM x 91.000 M), 35100 UPC 35100 Double-Braided Composite Rope 3/4 IN x 600 FT (19.100 MM x 182.000 M), 35101 UPC 35101 Double-Braided Composite Rope 3/4 IN x 1,200 FT (19.100 MM x 365.0 M) Drive Motor : 1-1/2 hp, 120 VAC, 16 Hz, 20 Amp Includes : 6001 Super Tugger, Floor Mount, Mobile Carriage, Boom Mount, 4.000 FT Boom Tube, Nose Unit, 2-1/2 IN , 3 IN, 3-1/2 IN, 4 IN Slip-In And Screw-On Couplings And Storage Trays Pulling Force : 6500 LB (28.9 KN) Maximum, 4500 LB (20 KN) Continuous Pulling Rope : 3/4 IN (19.1 MM) Double-Braided Composite, Rated At 26000 LB (115.6 KN) Pulling Speeds : 16.5 FTPM At No Load, (8.800 KN) - 11 (3.4) At 2000 LB, (17.900 KN) - 7.5 (2.3) At 4000 LB, (26.700 KN) - 6 (1.8) At 6000 LB Sub Brand : Super Tugger
WEIGHT: 453 lbs
CAT #: 6004 UPC #: 52026624/783310563587
PRODUCTS > Pulling > CABLE PULLERS > 6000 Series Super Tuggers > PULLER PACKAGE,CABLE (6004)
DESCRIPTION: PULLER PACKAGE,CABLE (6004)
Pull up to 6,500 lbs. (28.9 kN) with less than 27 lbs. (120 N) of operator effort Unique floor mounting attachment for quick, reliable setup Leaf-type mounting chains won't twist when tightening Heat-treated steel serrated gripper feet for secure mounting to conduit Force Gauge included to constantly monitor the pull Right-angle sheave allows the operator to stand out of the direct line of force Audio alarm high force warning and circuit breaker shut off at maximum force for added safety Tapered capstan and patented rope guidance system for better control of the rope when feeding onto the capstan Patented
SPECIFICATIONS:
Accessory : 35098 UPC 35098 Double-Braided Composite Rope 3/4 IN x 300 FT (19.100 MM x 91.000 M), 35100 UPC 35100 Double-Braided Composite Rope 3/4 IN x 600 FT (19.100 MM x 182.000 M), 35101 UPC 35101 Double-Braided Composite Rope 3/4 IN x 1,200 FT (19.100 MM x 365.0 M) Drive Motor : 1-1/2 hp, 120 VAC, 16 Hz, 20 Amp Includes : 6001 Super Tugger, Floor Mount, Mobile Carriage, Boom Mount, 4.000 FT Boom Tube, Nose Unit, 2-1/2 IN , 3 IN, 3-1/2 IN, 4 IN Slip-In And Screw-On Couplings And Storage Trays Pulling Force : 6500 LB (28.9 KN) Maximum, 4500 LB (20 KN) Continuous Pulling Rope : 3/4 IN (19.1 MM) Double-Braided Composite, Rated At 26000 LB (115.6 KN) Pulling Speeds : 16.5 FTPM At No Load, (8.800 KN) - 11 (3.4) At 2000 LB, (17.900 KN) - 7.5 (2.3) At 4000 LB, (26.700 KN) - 6 (1.8) At 6000 LB Sub Brand : Super Tugger
WEIGHT: 453 lbs
CAT #: 6004 UPC #: 52026624/783310563587
PRODUCTS > Pulling > CABLE PULLERS > 6000 Series Super Tuggers > PULLER PACKAGE,CABLE (6004)
