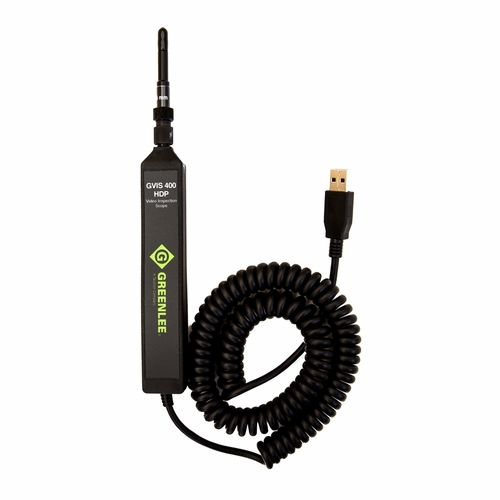

TEMPO GVIS 400-HDP GVIS400 MON W/PASS FAIL (GVIS400) 783310031789 /52068852
Available*
Item # 79992704
Model # 783310031789
$3,501.23
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Scope
Fiber Optic Products
OTDR- Power Meter- Light Source- Idenitifiers- VFL
Fiber Microscopes
Tempo Communications, Inc.
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GREENLEE GVIS 400-HDP GVIS400 MONITOR W/PASS FAIL (GVIS400) 783310031789 /52068852 NEW
DESCRIPTION The GREENLEE video inspection probe family consists of the GVIS 300 and the GVIS 400.
The GVIS 300 enables the technician to view the ferrule end-face or bulkhead after cleaning and before connecting. This will insure that the connectors are free from contamination and damage. If a connection point is damaged or contaminated, no further damage will occur and once the offending connection point is resolved, a high-performance fiber link can be commissioned.
The GVIS 400 can be interfaced directly to a computer, tablet, or cell phone and has the same feature set as the GVIS 300 and also automatically tests for conformance to IEC 61300-3-35 within the GVIS application. The GVIS application has full reporting and documentation with the GVIS 400 probe and the GRP 460 optical power meter so that fiber end-face data and optical power levels can be saved and recorded in a convenient PDF report.
The industry leading field of view on the GREENLEE video inspection probes allow the technician to confirm that there is no contamination outside of the four zones as defined by the IEC61300-3-35 specification. Contamination from outside the four zones can migrate into the contact zone due to vibration, and cause failures after installation.
The GPAD 250 allows the technician to create a Wi-Fi hotspot to connect the GVIS 400 probe to tablets and smart phones. The GVIS application is available in Windows, iOS, and Android versions.
Applications
Confirm bulkhead and connector condition
Benefits
Reduce and virtually eliminate truck rolls due to contaminated connectors
Features All common bulkheads and connectors are supported
Industry leading field of view 800 x 600 microns micron scratch resolution
Compliant to IEC 61300-3-35
Free GVIS application compatible with windows, iOS and Android
USB download of images to the GVIS application
Automated PASS/FAIL provides secure documentation for critical reports
Industry leading Field Of View 860um x 640um
Automatic PASS/FAIL analysis equipped to meet IEC 61300-3-35
USB or Wi-Fi streaming. Easily connects with laptops, smart phones, and tablets
GREENLEE GVIS application for analysis and reporting
Unique external focus system and enhanced magnification produce clear high-definition images
Voice command support for hands free imaging
SPECIFICATIONS:

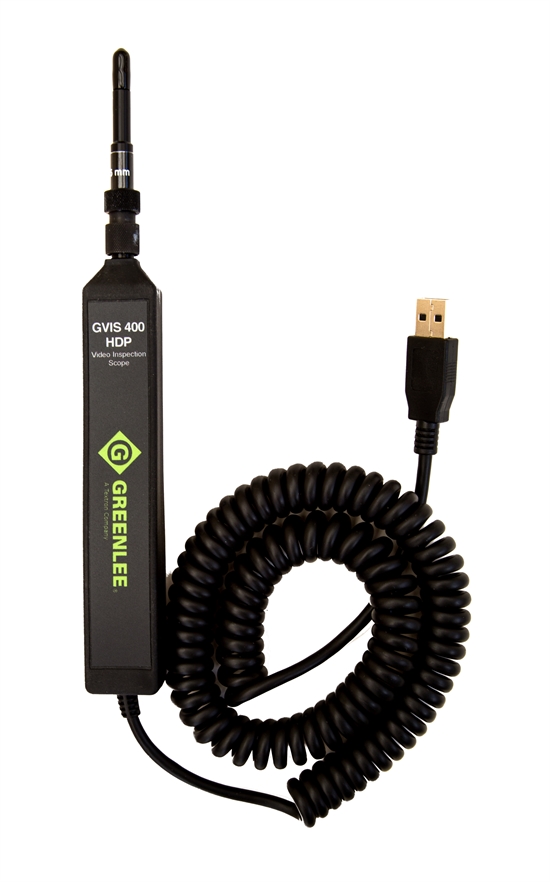

GVIS 400-HDP high definition probe (USB)
2.5 mm universal connector adapter tip
SC bulkhead adapter tip
Pen and square cleaning kit
Hard carry case
Instruction manual
Camera: Megapixel, high definition, CMOS sensor
FOV (Field of View): 860 ?m x 640 ?m
Resolution: <1 micron
Lighting Technique: Coaxial
Focus System: Proprietary external focus system
Probe Output: USB 2.0
PASS/FAIL Analysis: User-selectable or IEC 61300-3-35 compliant software Included
Probe Dimensions: 7" x 1" x 0.75" (180 mm x 25 mm x 19 mm)
Weight (probe, case, and tips): 1.2 lb (0.54 kg)
CAT #: GVIS 400-HDP UPC #: 783310031789 /52068852
