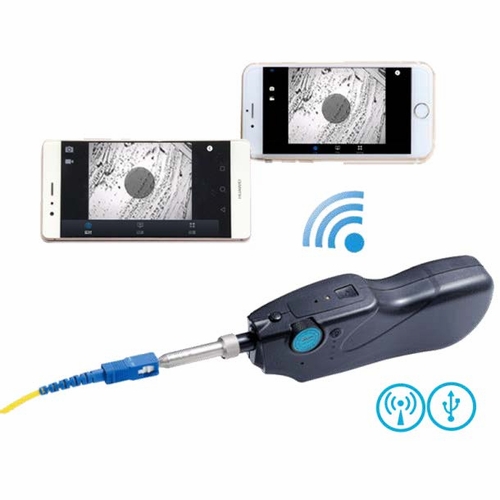

SHI AYTECH OCI-20BN-W WIRELESS OPTICAL CONNECTOR INSPECTOR
Available*
Item # 53287680
Model # OCI-20BN-W
$1,603.80
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Video Prob
Fiber Optic Products
OTDR- Power Meter- Light Source- Idenitifiers- VFL
Fiber Microscopes
Shineway Tech
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
Completely wireless, self-powered support fiber optic connector inspector, View the defect or scratch of the fiber end-face clearly on your phone with FiberEye2, View & save supported in Windows/Linux/Mac,including tips:AC-OCI-B-2.5PC-M,AC-OCI-B-FC-F,AC-OCI-B-SC-F,AC-OCI-B-LC-F.
? Completely wireless, self-powered support
? Image-capture capability for documentation
? 400×, High definition, clear image
? Ideal for all types of connectors test: APC, UPC, MTP and more
? USB interface compatible with various OS: Windows, Linux, Mac, Android
? View the defect or scratch of the fiber end-face clearly on your phone with FiberEye2
? The image can be captured, video recorded and stored in your phone
? View & save supported in Windows/Linux/Mac
? Pass/Fail Analysis supported in Windows7/8/10

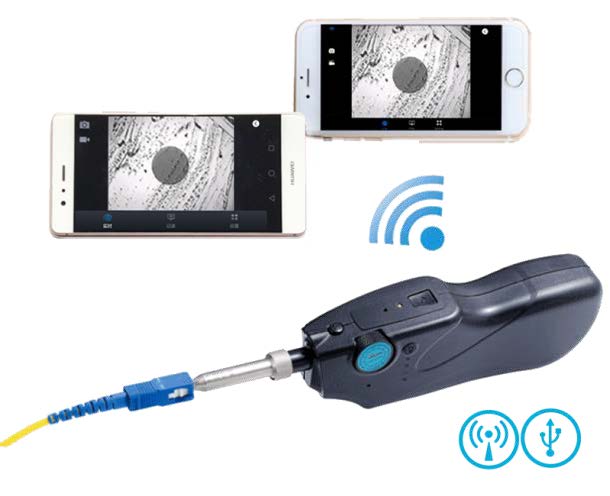

OCI-20BN-W is a portable optical fiber connector inspector for checking fiber and connector end-face cleanliness, ideal for bench top and fiber optic network installation technicians to eliminate error caused by poor quality or improper cleaning.OCI-20BN-W offers excellent viewing on connector/fiber end-face and is able to feature to record and save image/video of fiber end-face; It can be connected to PC or phone by WIFI.More than 40 assorted high-precision tips designed for inspection solutionsAngled/Lengthened tips for awkward positions.Connect smart phone for testing FiberEye2 is the application on an android or IOS smart phone to capture, display and record the fiber end-face image from the Wi-Fi probe.Connect tablet/laptop for testing EFD is the analysis software on Windows tablet/laptop to have dusts, and scratches on end face inspected, analyzed, compiled and reported
Specifications
Magnification 400X Definition <1µm Light source Blue LED View of field X: 0.3487mm Y: 0.2632 mm Focus wheel Single-way Focus speed 1-5s Alignment >98% Capture button Available Quick switch Wi-Fi/USB Connector Micro USB Connectivity Wi-Fi802.11/USB2.0 Frequency band 2.4GHz OS compatibility Android 4.4 and above IOS8.1 and above Voltage 5V Power support 3400mAh Li-ion Working time = 5h Recharge time = 5h Weight/Dimension 175g / 19x5x3cm
Configuration Probe To test the fiber end face on patch cords / connectors in patch panels, etc. 1pc Standard Tips SC-PC-F/M, FC-PC-F/M, LC-PC-F/M 1 pc/type USB cable USB to Micro USB cable For charging or data transfer Soft case For carrying the probe and accessories Application FiberEye2 on Android & IOS USB AC adapter(optional) 5V 1A charger USB adapter(optional) USB-C to USB-A adapter, applicable for USB2.0 and USB3.1 OTG smart devices Arm strap(optional) Outdoor arm strap holding Mobile Phone Software(optional) EFD end face data analysis software, free upgrade.
***PHONES ARE NOT INCLUDED***
