Product Description

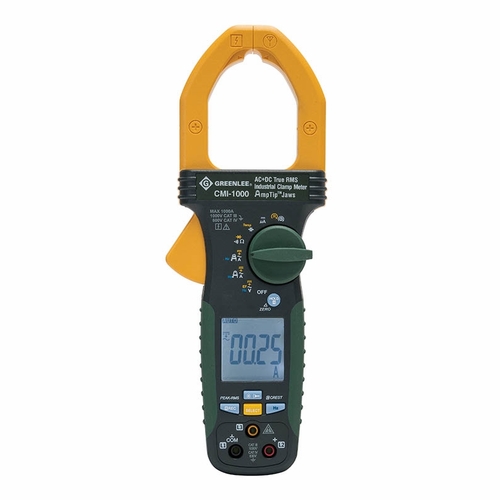

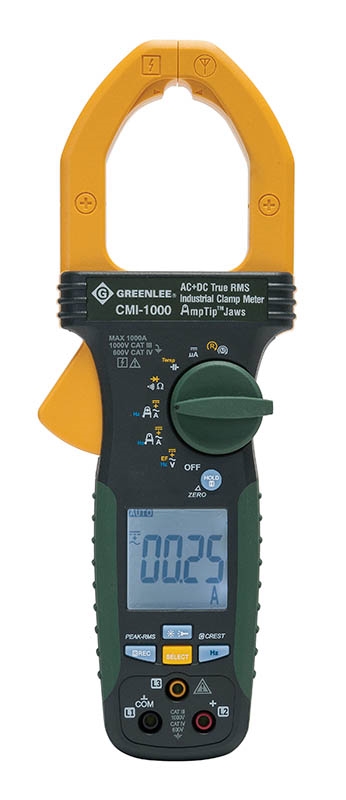

Greenlee Cmi-1000-C Clampmeter,Ac/Dc-Calibrated(Cmi-1000-C) 783310022121 /52066397 New
Description:
Cmi-1000 Clamp Meter With Certificate Of Calibration
Measures Ac+Dc Current And Dc Microamps
Ac And Ac+Dc Voltage Measurements With Digital Low Pass Filter For Accurate Readings On Variable Frequency Drives
Also Measures Dc Voltage, Resistance, Capacitance, Temperature And Frequency
Tests Continuity And Diodes
Phase Sequence & Motor Rotation Tests
Peak-Rms Measures Motor Inrush Current
Flashlight Inside Clamp Jaw For Easier Work In Dark Locations
Backlight & Relative Mode For Added Versatility
Amptip? Increases Accuracy On Small Wires And Low Current
Two Voltage Detection Modes - Non-Contact Or Using A Single Test Lead
Data Hold
Recording Of Maximum, Minimum, And Average Readings
Crest (Peak Hold) Feature Captures Current Or Voltage Peaks As Short As 5 Milliseconds
Lifetime Warranty
Specifications:
Amperage Measurement : 60, 600, 1000 Amps Ac+Dc
Display : Lcd, 6000 Count
Frequency Rating : Voltage: 50/60 Hz. Current: 40 To 400 Hz
Includes : (2) 1.5V Aa Batteries, Test Leads And Clips, Carrying Case
Jaw Opening : 2.0" (51 Mm)
Measurement Category : Cat Iii 1000V, Cat Iv 600V
Replacement Part : 02714 Test Leads And Clips, Tc-30 Carrying Case
Resistance Measurement : 600, 6K, 60K Ohms
Standard : Cat Iv, C/Us Ul Listed, Ce
True Power : Ac+Dc True Rms
Voltage Measurement : 600, 1000 Volts Ac+Dc
Cat No: Cmi-1000-C Upc No: 783310022121 /52066397
