Product Description

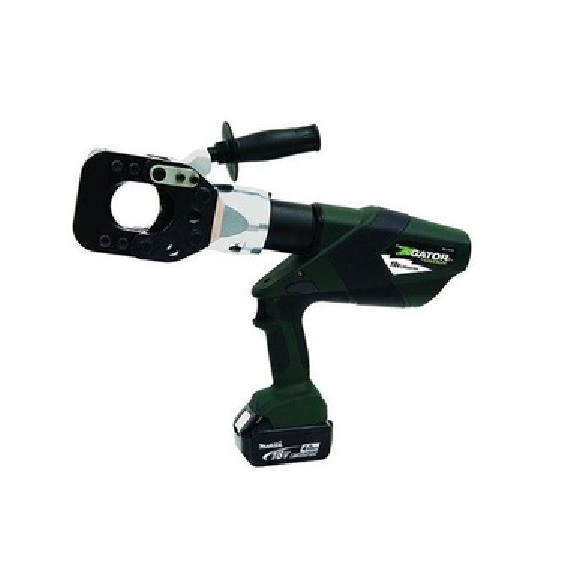

GREENLEE ESG55LX22 CUTTER WIRE, LI, 55MM STD, 230V 783310613015/52078915
GREENLEE ESG55LX22
CUTTER WIRE, LI, 55MM STD, 230V 783310613015/52078915
Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback.
Designed specifically to cut ACSR, guy strand and ground rods State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times Retraction Stop allows theoperator to stop the ram retraction at any point simply by tapping the trigger, and then starting the next cutting cycle from that point, saving time and energy LED light provides the operator with the battery charge and tool maintenance status Two-stage hydraulic system provides fast advance and power speeds, saving time Forward handle position improves tool balance One trigger controls all tool functions Cutting head rotates 350° Tools automatically retract when the cutting cycle is complete Overmolded tacky grip areas make gripping the tool easier and more comfortable LED work light illuminates dark work areas Greenlee battery-powered cutting tools now use bio-degradable oil Smart Chargers control the charging current, charging voltage and battery temperature to maximize battery life Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger U.S. Patents #6,206,663 and #6,065,326
Specifications
Sub Brand Gator
Type Guillotine Style Cutter
Application ACSR, Guy Strand, Steel
Cutting Edge Hard Metal, Steel
Cutting Range ACSR: Joree 76/19 AWG (2515KCMIL)
Cutting Range Standard Guy Strand: 5/8 IN Diameter
Cutting Range EHS Guy Strand: 9/16 IN Diameter
Cutting Range Ground Rod: 3/4 IN Diameter
Cutting Range Wire Rope: 1/2 IN (13.000 MM)Cu
Cutting Range Wire Rope: 5/8 IN Diameter
Cutting Range Soft Steel Bolts: 3/4 IN Diameter
Jaw Size 2.16 IN (55mm)
Overall Length 18.125 IN (460mm)
Handle Type Pistol style with over molded rubber grip
Finish Black
