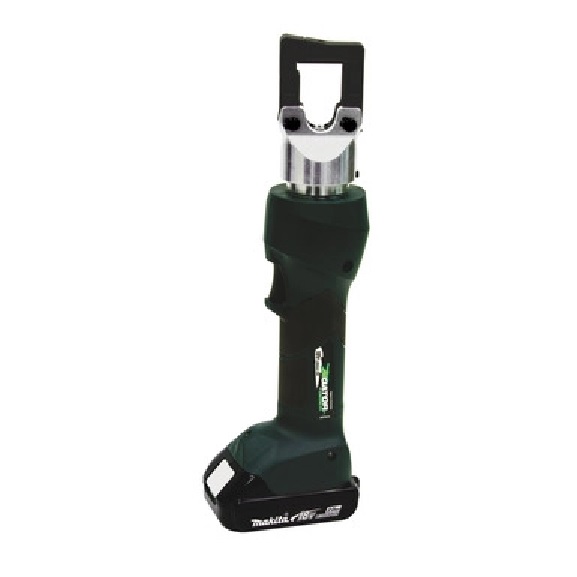

GREENLEE EK410LX12 CRIMPER, 4T LI, STD, 12V 783310609285/52078591

GREENLEE EK410LX12  CRIMPER, 4T LI, STD, 12V 783310609285/52078591
Item# 79990850
$2,176.27
CA Prop 65 Warning Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov

Product Description

GREENLEE EK410LX12 CRIMPER, 4T LI, STD, 12V 783310609285/52078591

GREENLEE EK410LX12 CRIMPER, 4T LI, STD, 12V 783310609285/52078591

Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback.

Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator with a visual and audible alert if the force is below specifications

State of the art 18 V Lithium Ion (Li-Ion) battery provides 70% more cycles per charge and faster cycle times

Retraction Stop Repeat (RSR) allows the operator to partially retract the ram and then the tool repeats the retraction for subsequent crimps

LED light provides the operator with the battery charge and tool maintenance status

Forward handle position improves tool balance One trigger controls all tool functions Crimping head rotates 350° Tools automatically retract when the crimping cycle is complete Overmolded tacky grip areas make gripping the tool easier and more comfortable LED work light illuminates dark work areas Greenlee battery-powered crimping tools now use bio-degradable oil Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life. Available with 120 V, 12 V or 230 V battery charger or with 120 V or 230 V corded adapter in place of batteries and charger use optional CCX Blades and adapters. U.S. Patent #6,206,663, #6,532,790, When used with Greenlee KC12 and KA12 dies in combination with Anderson®, Blackburn®, FCI Burndy®, ILSCO®, Panduit®, Penn-Union® and Thomas& Betts® color-coded connectors, crimps on connections up to750 kcmil are UL and cUL classified. The tools also accept all industry U type dies These tools drive knockout punches through 5-5/8" diameter.

Specifications Sub Brand Gator Type Die style crimper Application 4 Ton Crimping Standard C/US UL Listed Wire Size 8 AWG - 300 kcmil Cu Wire Size 8 AWG - 2/0 kcmil Al Overall Length 13.25 IN (337mm) Crimping Force 7,900 lbs. (35 kN) Crimping Capacity 300 kcmil (MCM) Copper Crimping Capacity 2/0 AWG Al Connector Type Color-coded lugs and splices Handle Type In-Line Style with over molded rubber grip

If items is in stock it will ship same day- Images may not be of the actual item being sold.
