GREENLEE DVM-25T DVM-25 W/TEST POINT 783310053484/52074164
GREENLEE DVM-25T DVM-25 W/TEST POINT 783310053484/52074164

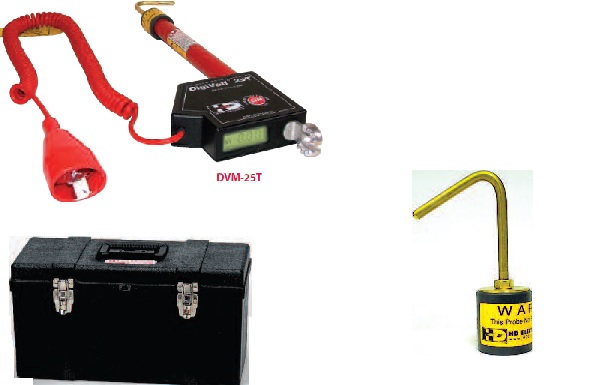

DigiVolt® Single Stick Digital Voltmeter TP, 25kV Measures voltage from 50V to 25kV Auto-ranging - no settings required Capacitive Test Point mode Auto-shutoff and low battery indicator features Versatile for overhead and underground applications
Specifications Sub Brand HDE Type Voltmeter Model DVM-25T Voltage Rating 50V - 25kV Accuracy Within 1% of reading +/- 3 counts (line-to-ground measurements) Display LCD indicates 3.5 digits Operating Temperature -13°F to +131°F (–25°C to +55°C) Dimensions 5" W x 4.25" L x 1.38" H (13 cm x 11 cm x 3.5 cm) Frequency Rating 25-1000Hz AC/DC Included Single stick voltmeter w/capacitive test point mode, 025-OLPS-5 overhead brass hook probe, CS-DVM case
OLPS-5 Overhead Hook Brass Probe Dimensions: 4.5" (11.4 cm) -Weight: 0.2 lbs. (0.09 kg)
CS-DVM Plastic Case for DVM-25T and DVM-80 models Dimensions: 20" x 10" x 10.5" (50 cm x 25 cm x 27 cm) Weight: 7 lbs. (3.17 kg)
