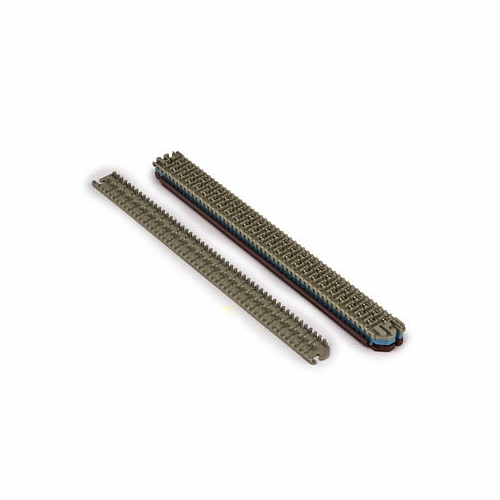

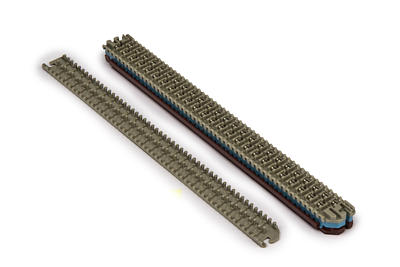

3M 4005DPM/FR MS2 MODULES CASE/120 FIRE RETARDENT DRY 80610156848

3M 4005DPM/FR MS2 MODULES CASE/120 FIRE RETARDENT DRY 80610156848 NEW Super Mate 25-pair Splicing Modules provide the reliability of soldered connections, the efficiency of multi-pair splicing, plus the proven performance of MS 2 splicing system. The MS 2 4000TR Series Super-Mini and 4005TR Series Super Mate Modules are the basic components of MS 2 Modular System Splicing from 3M. The modules are building blocks of a systematized splicing technology that can reduce installation time of outside or inside plant and in addition can reduce reworking demands, and save both time and effort in your construction and maintenance programs. Also, to make your job easier, all MS 2 modules are now transparent. U-shaped contacts enable solder-equivalent connections The MS 2 4000 TR 25-pair Series Super-Mini and MS 2 4005TR Super Mate Modules feature an array of U-shaped, phosphor-bronze contacts and stainless steel cut-off blades. As a module is crimped, each contact strips the insulation from the positioned wire and securely grips the conductor. During this crimping operation, the cut-off blades inside each module trim the excess wire. A single crimp completes a gas-tight connection on all 25-pairs in the module. It’s simple and fast, because there’s no need to strip or trim any of the individual pairs. Pair testing is easy Test entry ports on the front side of all modules provide access for testing individual pairs. All tests can be accomplished without opening the module, stripping insulation, or otherwise interrupting service. The rugged design and construction of the modules can withstand crimping and reopening to facilitate transfers or cable rearrangements at any time. 19 4005-DPM/16 16-Pair Pluggable Module The MS 2 ™ 4005-DPM/16 Pluggable Module is a fire-retardant, 16-pair dry pluggable module designed for installation and switching of cable pairs within the central office (CO) or PBX room. This module enables personnel to rearrange and transfer working circuits without interrupting service. 20 The 4005-DPM/16 module gives technicians the ability to perform cutovers quickly, at low cost, and without service interruption. Plus, each cutover is easily reversed. Modules are simply plugged or unplugged in 16-pair groups.

25 pair Dry Super Mate stackable module flame retardant.

Part Number: 4005-DPM/FR UPC: 0–00–54007–17352–6 3M ID: 80–6101–5684–8

The 3M™ MS²™ Fire Retardant Pluggable Module 4005-DPM/FR is a 25-pair module that features an array of U-shaped, phosphor-bronze contacts and stainless steel cut-off blades.

Full Description »

This is a flame retardant, pluggable dry module that's designed for use with in-building applications.It is suggested to use one of the 3M™ MS²™ Splicing Rigs along with this product.
