3M 4005DPM MS2 MODULES CASE/120 25 PAIR PLUGGABLE MS2
Available*
Item # 58410450
Model # 4005DPM
$300.00
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Connectors
Material and Supplies
Connectors-Terminators
MS2 25 Pair Modular
3M
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
3M 4005DPM MS2 MODULES CASE/120 25 PAIR PLUGGABLE MS2 NEW
3M 4005DPM MS2 MODULES CASE/120 25 PAIR PLUGGABLE MS2 NEW

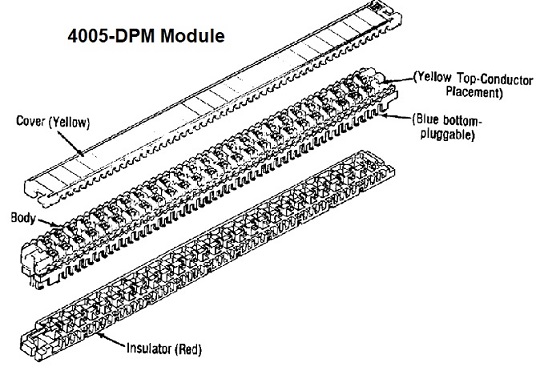

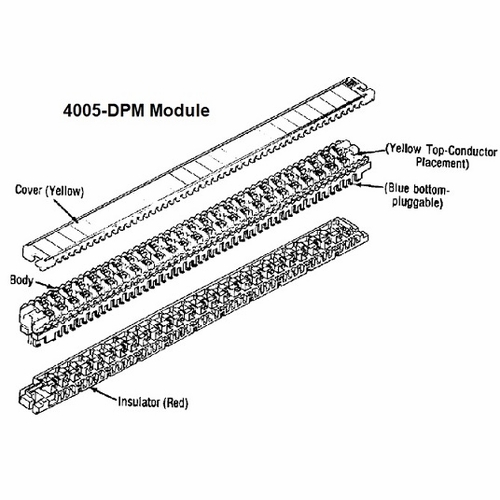

Cover Yellow Body Yellow Top-Conductor Placement and Blue Bottom-Pluggable Insulator Red UPC 0054007333029 Case/120
The 4005-DPM Super Mate pluggable module is part of 3M TelComm’s 25 pair Modular Splicing System (MS2). This module is used for adding, removing, transferring and rearranging circuits without interrupting service. These changes can be made 25 pairs at a time without cutting or resplicing conductors into new modules. The 4005-DPM Super Mate can terminate 25 conductor pairs and plug to either a 4000-D Super Mini splicing module or to another Super Mate. The Super Mate accommodates 22-28 AWG (0.8-0.32 mm) solid copper conductors with PIC, pulp or paper insulation in the element’s upper insulation displacement contact. The element has a 90. twist so that the bottom sliding contact can be plugged onto a element in a Super Mini or another Super Mate. The 4005-DPM Super Mate pluggable module can be stacked up to 7 modules high.
3M 4005DPM MS2 MODULES CASE/120 25 PAIR PLUGGABLE MS2 NEW
Cover Yellow Body Yellow Top-Conductor Placement and Blue Bottom-Pluggable Insulator Red UPC 0054007333029 Case/120
The 4005-DPM Super Mate pluggable module is part of 3M TelComm’s 25 pair Modular Splicing System (MS2). This module is used for adding, removing, transferring and rearranging circuits without interrupting service. These changes can be made 25 pairs at a time without cutting or resplicing conductors into new modules. The 4005-DPM Super Mate can terminate 25 conductor pairs and plug to either a 4000-D Super Mini splicing module or to another Super Mate. The Super Mate accommodates 22-28 AWG (0.8-0.32 mm) solid copper conductors with PIC, pulp or paper insulation in the element’s upper insulation displacement contact. The element has a 90. twist so that the bottom sliding contact can be plugged onto a element in a Super Mini or another Super Mate. The 4005-DPM Super Mate pluggable module can be stacked up to 7 modules high.
