JONARD RG-F81 CATV Female Splice Adapters (Pack of 2) 810053351703
Available*
Item # 55405600
Model # RG-F81
$4.95
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Connectors
Material and Supplies
Connectors-Terminators
Coaxial
Jonard Industries Corp
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

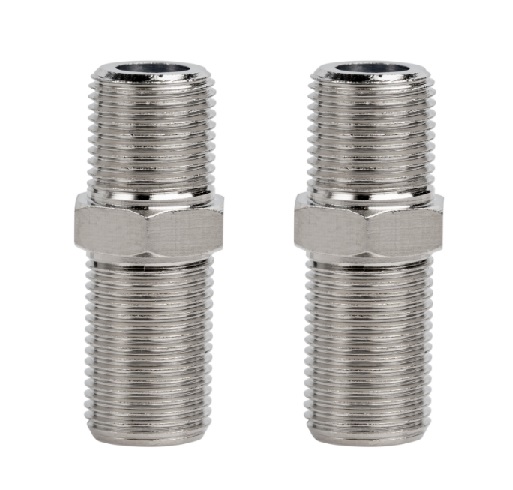

JONARD RG-F81 CATV Female Splice Adapters (Pack of 2) 810053351703
JONARD RG-F81 CATV Female Splice Adapters (Pack of 2) 810053351703
These adapters are designed to join two male RG6, RG6 Quad Shield, RG59, RG59 Quad Shield CATV F connectors. These adapters also feature the following:
- For performance up to 3.0 GHz - Gold-plated contacts for maximum performance - For use with male RG6, RG6 Quad Shield, RG59, RG59 Quad Shield CATV F connectors
Specifications
Connector Type F Female Splice Adapter
Standards IEC 60169-24
Temperature Range -40~+85?
Vibration 100 m/sē (10~500Hz)
Impedence 75 O
Frequency Range DC~1GHz
Working Voltage 170V
Withstand Voltage 500V
Center Contact Res. = 10 mO
Outer Contact Res. = 5 mO
Insulation Res. = 1000 MO
Return Loss = 25dB
Insertion Loss = 0.8 dB
Weight 0.02 lb (9.08 g)
UPC # 810053351703

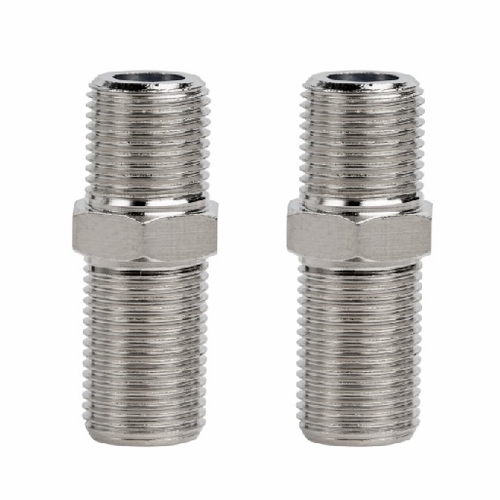

JONARD RG-F81 CATV Female Splice Adapters (Pack of 2) 810053351703
