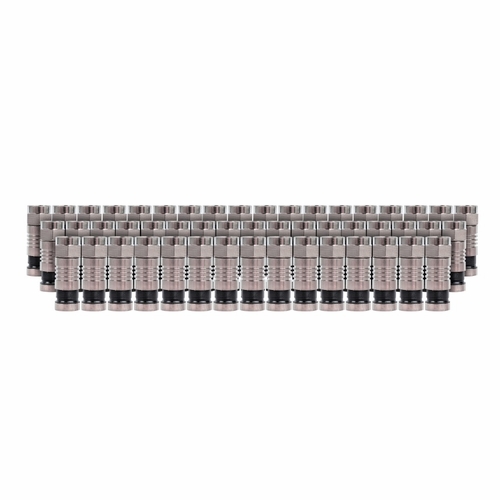

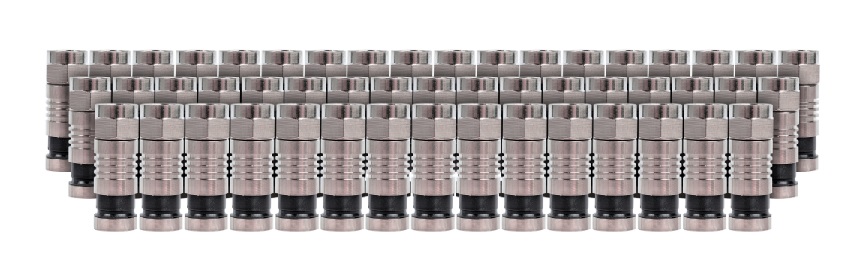

JONARD RG6-50 RG6 Connectors (50-Pack) UPC 810053350331
Available*
Item # 37303962
Model # RG6-50
$33.95
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Connectors
Material and Supplies
Connectors-Terminators
Coaxial
Jonard Industries Corp
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
JONARD RG6-50 RG6 Connectors (50-Pack) UPC 810053350331
JONARD RG6-50 RG6 Connectors (50-Pack) UPC 810053350331
These RG6 connectors are universal compression connectors, ideally suited for professional and consumer use. The one-piece design of these connectors makes them simple to use and provides a secure 360° compression seal, resulting in maximum RF shielding performance. The all-metal design of the connector body and nut allows for unparalleled electrical and mechanical performance. The detachably coupled advanced polymer compression system is pre-positioned to ensure a consistent fit with the cable. These connectors also feature the following:
The universal one-piece, all-metal design works with Standard, Trishield, and Quadshield RG6 cables Detachably coupled, advanced polymer compression system compresses the connector perfectly each time Triple internal weather sealing prevents moisture from entering cable without the use of an external weather grommet Standard 5/16" - 1/4" cable preparation using industry-standard preparation tools Superior RF performance at CATV and satellite TV frequencies QuickshieldŽ ground feature provides weather sealing to prevent signal ingress and egress Works with our CTF-200, CTF-230, and CT-200 COAX Compression Tools Package of: 50
Specifications
Connector Size RG6
Connector Type Q II F-Type Compression Connector (Series 6 Universal Design)
Plating Material Nickel
Return Loss > 30 dB (5-1000 MHz)
Shielding Effectiveness > 95 dB (0-300 MHz), > 70 dB (300 MHz - 1 GHz)
Screening Attenuation > 80 dB (3 MHz - 3.0 GHz)
Dielectric Strength > 1.0 kVAC for 1 minute
Insulation Resistance > 5000 MO@ 100 VDC
Product Material Nickel
Weight 1.0 lb
UPC # 810053351796
