JONARD FLC-1005 Singlemode Fiber Optic Launch Cable, 1000 m, SC/APC-SC/UPC 810053351888
Available*
Item # 55405535
Model # FLC-1005
$249.95
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Launch Cab
Fiber Optic Products
OTDR- Power Meter- Light Source- Idenitifiers- VFL
Fiber OTDR- OSA
Jonard Industries Corp
Fiber Launch Cable
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

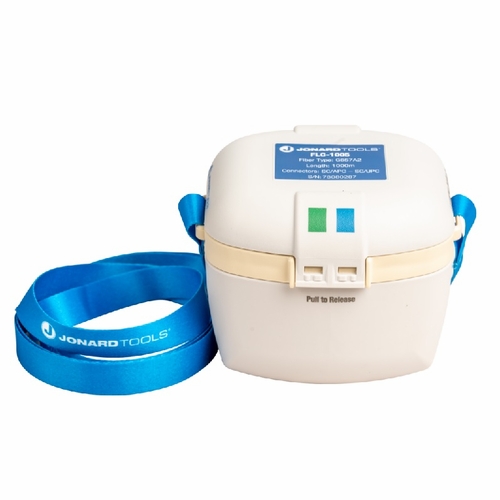

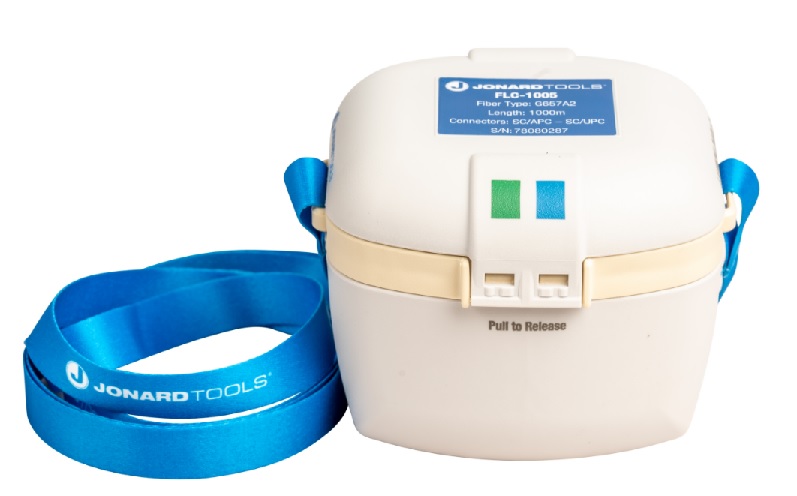

JONARD FLC-1005 Singlemode Fiber Optic Launch Cable, 1000 m, SC/APC-SC/UPC 810053351888
JONARD FLC-1005 Singlemode Fiber Optic Launch Cable, 1000 m, SC/APC-SC/UPC 810053351888
Designed with unique compact housing and 1000 meters of fiber, this launch cable is perfect for eliminating dead zones in reflectometric tests using an OTDR. This launch cable also features the following:
- Compact housing and shoulder strap make this perfect for on-the-go use - 6.56 ft (2 m) long pigtails are terminated with an SC/UPC connector on one side and an LC/UPC connector on the other side for versatility - Steel, interlocked armor under the fiber jacket protects the fiber from accidental damage - Polishing types are color coded for quick and easy identification of the launch cable - Convenient magnet on bottom of housing allows for quick and easy mounting to fiber racks - 3281 ft (1000 m) length of fiber is perfect for most OTDR testing applications
Specifications Cable Length 3281 ft (1000 m)
Connector Types SC/APC, SC/UPC
Input/Output Length 4.9 ft (1.5 m)
Max Insertion Loss @ 1310 nm = 0.35 dB/km
Max Insertion Loss @ 1550 nm = 0.22 dB/km
Max Insertion Loss @ 800 nm = 2.50 dB/km
Max Insertion Loss @ 1300 nm = 0.70 dB/km
SM Connector Insertion Loss = 0.1 dB
MM Connector Insertion Loss = 0.15 dB
Return Loss RL = 65 dB (APC); RL = 55 dB (UPC)
Product Main Color White Dimensions 3.75 in x 3.75 in x 3.46 in (9.53 cm x 9.53 cm x 8.79 cm) Weight 0.78 lb (353.80 g) UPC # 810053351888
JONARD FLC-1005 Singlemode Fiber Optic Launch Cable, 1000 m, SC/APC-SC/UPC 810053351888
Designed with unique compact housing and 1000 meters of fiber, this launch cable is perfect for eliminating dead zones in reflectometric tests using an OTDR. This launch cable also features the following:
- Compact housing and shoulder strap make this perfect for on-the-go use - 6.56 ft (2 m) long pigtails are terminated with an SC/UPC connector on one side and an LC/UPC connector on the other side for versatility - Steel, interlocked armor under the fiber jacket protects the fiber from accidental damage - Polishing types are color coded for quick and easy identification of the launch cable - Convenient magnet on bottom of housing allows for quick and easy mounting to fiber racks - 3281 ft (1000 m) length of fiber is perfect for most OTDR testing applications
Specifications Cable Length 3281 ft (1000 m)
Connector Types SC/APC, SC/UPC
Input/Output Length 4.9 ft (1.5 m)
Max Insertion Loss @ 1310 nm = 0.35 dB/km
Max Insertion Loss @ 1550 nm = 0.22 dB/km
Max Insertion Loss @ 800 nm = 2.50 dB/km
Max Insertion Loss @ 1300 nm = 0.70 dB/km
SM Connector Insertion Loss = 0.1 dB
MM Connector Insertion Loss = 0.15 dB
Return Loss RL = 65 dB (APC); RL = 55 dB (UPC)
Product Main Color White Dimensions 3.75 in x 3.75 in x 3.46 in (9.53 cm x 9.53 cm x 8.79 cm) Weight 0.78 lb (353.80 g) UPC # 810053351888
