Jonard Flc-1001 Singlemode Fiber Optic Launch Cable, 1000 M, Sc/Upc-Lc/Upc 810053351871

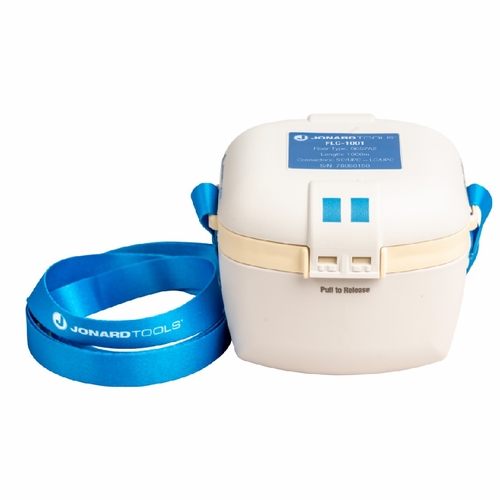

Jonard Flc-1001 Singlemode Fiber Optic Launch Cable, 1000 M, Sc/Upc-Lc/Upc 810053351871 Singlemode Fiber Optic Launch Cable, 1000 M, Sc/Upc-Lc/Upc Compact Housing And Shoulder Strap Make This Perfect For On-The-Go Use 6.56 Ft (2 M) Long Pigtails Are Terminated With An Sc/Upc Connector On One Side And An Lc/Upc Connector On The Other Side For Versatility Steel, Interlocked Armor Under The Fiber Jacket Protects The Fiber From Accidental Damage Polishing Types Are Color Coded For Quick And Easy Identification Of The Launch Cable Convenient Magnet On Bottom Of Housing Allows For Quick And Easy Mounting To Fiber Racks

Specifications Cable Length 3281 Ft (1000 M)

Connector Types Sc/Upc, Lc/Upc

Input/Output Length 4.9 Ft (1.5 M)

Max Insertion Loss @ 1310 Nm = 0.35 Db/Km

Max Insertion Loss @ 1550 Nm = 0.22 Db/Km

Max Insertion Loss @ 800 Nm = 2.50 Db/Km

Max Insertion Loss @ 1300 Nm = 0.70 Db/Km

Sm Connector Insertion Loss = 0.1 Db

Mm Connector Insertion Loss = 0.15 Db

Return Loss Rl = 65 Db (Apc); Rl = 55 Db (Upc)

Product Main Color White Dimensions 3.75 In X 3.75 In X 3.46 In (9.53 Cm X 9.53 Cm X 8.79 Cm) Weight 0.78 Lb (353.80 G) Upc # 810053351871Read More
