MACLEAN J6550C 5/8 inch THIMBLE EYELET BOLT EYES
Available*
Item # 54973800
Model # J6550C
$7.07
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Nut
Material and Supplies
Hardware- Screws- Bolts
Nuts - Bolts- Washers
Hubbell Power Systems
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

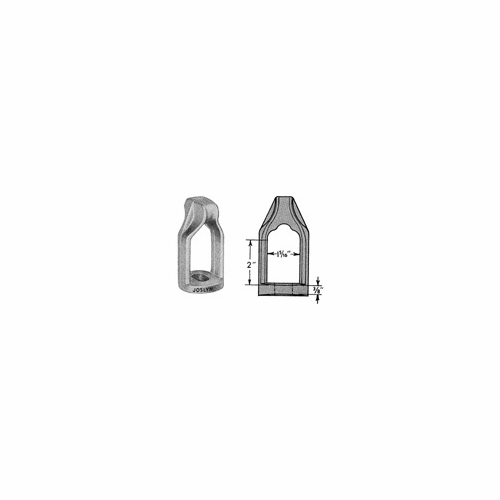

MACLEAN POWER SYSTEMS J6550C 5/8" THIMBLE EYELET BOLT EYES Features:
Eyelets, also known as Bolt Eyes, are used under the head or nut of a bolt. All are compatible with the strength of the bolts used with them.
Straight thimble eyelets are used for span guys while angle thimble eyelets are used for down guys.
Standard eyelets are used for deadending.
Standard eyelets and straight thimble eyelets have a slotted hole for ease in inserting the bolt.
Material:
Hot Dip Galvanized
Catalog Number Catalog Number (2) A B C D Mounting Bolt Hole Bolt Size (Inches) Weight/100 (lbs) J1126 BE-5 1-1/4 3 1/2 2-1/4 1-1/8 x 11/16 5/8 78 J1127 BE-6 1-1/4 3 1/2 2-1/4 1-1/8 x 13/16 3/4 70 J6550C TE-5 1-5/16 2 3/8 2-1/4 1 x 11/16 5/8 130 J6551 TE-6 1-5/16 2 3/8 2-1/4 1-1/8 x 13/16 3/4 125
Catalog Number Catalog Number (2) A B C D Mounting Bolt Hole Bolt Size (Inches) Weight/100 (lbs) J1126 BE-5 1-1/4 3 1/2 2-1/4 1-1/8 x 11/16 5/8 78 J1127 BE-6 1-1/4 3 1/2 2-1/4 1-1/8 x 13/16 3/4 70 J6550C TE-5 1-5/16 2 3/8 2-1/4 1 x 11/16 5/8 130 J6551 TE-6 1-5/16 2 3/8 2-1/4 1-1/8 x 13/16 3/4 125
Notes:
Hot Dip Galvanized
Catalog Number Catalog Number (2) A B C D Mounting Bolt Hole Bolt Size (Inches) Weight/100 (lbs) J1126 BE-5 1-1/4 3 1/2 2-1/4 1-1/8 x 11/16 5/8 78 J1127 BE-6 1-1/4 3 1/2 2-1/4 1-1/8 x 13/16 3/4 70 J6550C TE-5 1-5/16 2 3/8 2-1/4 1 x 11/16 5/8 130 J6551 TE-6 1-5/16 2 3/8 2-1/4 1-1/8 x 13/16 3/4 125
Catalog Number Catalog Number (2) A B C D Mounting Bolt Hole Bolt Size (Inches) Weight/100 (lbs) J1126 BE-5 1-1/4 3 1/2 2-1/4 1-1/8 x 11/16 5/8 78 J1127 BE-6 1-1/4 3 1/2 2-1/4 1-1/8 x 13/16 3/4 70 J6550C TE-5 1-5/16 2 3/8 2-1/4 1 x 11/16 5/8 130 J6551 TE-6 1-5/16 2 3/8 2-1/4 1-1/8 x 13/16 3/4 125
Notes:
