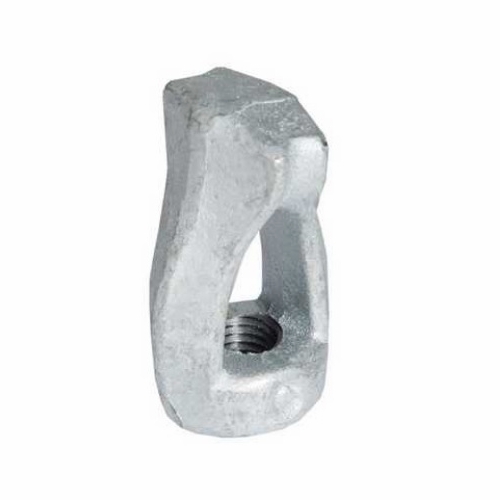

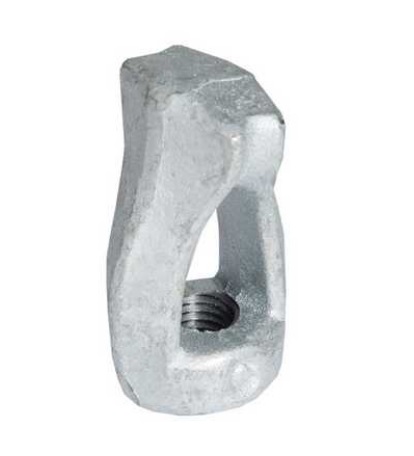

HUBBELL 6512 3/4 inch PISA THIMBLEYE NUT FOR PISA ANCHOR ROD**must order 20*** 096359073406
Available*
Item # 54973760
Model # 6512
$24.98
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Nut
Material and Supplies
Hardware- Screws- Bolts
Nuts - Bolts- Washers
Hubbell Power Systems
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
HUBBELL 6512 3/4 inch PISA THIMBLEYE NUT FOR PISA ANCHOR ROD**must order 20*** 096359073406
HUBBELL 6512 3/4 inch PISA THIMBLEYE NUT FOR PISA ANCHOR ROD**must order 20*** 096359073406
Item # 6512 HUBBELL 3/4 inch PISA THIMBLEYE NUT FOR PISA ANCHOR ROD**must order 20*** UPC: 096359073406
Thimbleye eyenut for 0.75" (19.1 mm) & 1" (25.4 mm) Pisa Rod.
Chance PISA eyenuts are designed to be used Chance PISA screw anchors. The eyenuts with 5/8" diameter threads are used with 5/8" diameter rods. The eyenuts with 1" threads are used with; 3/4" and 1" diameter rods. Rods are galvanized in accordance with ASTM A153. Eyenuts are availale in three configurations to be used with one, two or three guy wires.
For use the Pisa style anchor rods Eyes are dropped forged for better strength and reliability Hot dipped galvanized per ASTM A153
General Application Helical Anchoring Catalog Number 6512 Coating Galvanized, ASTM A-153 Eyenut Style Thimbleye Material Steel Strength Note Ultimate strength ratings apply to properly installed anchors only. Failure to install within 5 ° of alignment with the guy load may significantly lower strength. Tensile Strength 33500 lb. Type Power Installed Screw Anchor (PISA) UPC 096359073406
Dimensions Dimensions 4.000 in x 1.935 in x 2.334 in Distance From Pole N/A Height 2.334 in Length 4 in Rod Diameter 0.75 1 in Weight 1.911 lb Width 1.935 in
Certifications And Compliance RUS Listed Reference z – Anchors, screw, power installed
Logistics Pallet Quantity 960 Standard Package 25
HUBBELL 6512 3/4 inch PISA THIMBLEYE NUT FOR PISA ANCHOR ROD**must order 20*** 096359073406
Item # 6512 HUBBELL 3/4 inch PISA THIMBLEYE NUT FOR PISA ANCHOR ROD**must order 20*** UPC: 096359073406
Thimbleye eyenut for 0.75" (19.1 mm) & 1" (25.4 mm) Pisa Rod.
Chance PISA eyenuts are designed to be used Chance PISA screw anchors. The eyenuts with 5/8" diameter threads are used with 5/8" diameter rods. The eyenuts with 1" threads are used with; 3/4" and 1" diameter rods. Rods are galvanized in accordance with ASTM A153. Eyenuts are availale in three configurations to be used with one, two or three guy wires.
For use the Pisa style anchor rods Eyes are dropped forged for better strength and reliability Hot dipped galvanized per ASTM A153
General Application Helical Anchoring Catalog Number 6512 Coating Galvanized, ASTM A-153 Eyenut Style Thimbleye Material Steel Strength Note Ultimate strength ratings apply to properly installed anchors only. Failure to install within 5 ° of alignment with the guy load may significantly lower strength. Tensile Strength 33500 lb. Type Power Installed Screw Anchor (PISA) UPC 096359073406
Dimensions Dimensions 4.000 in x 1.935 in x 2.334 in Distance From Pole N/A Height 2.334 in Length 4 in Rod Diameter 0.75 1 in Weight 1.911 lb Width 1.935 in
Certifications And Compliance RUS Listed Reference z – Anchors, screw, power installed
Logistics Pallet Quantity 960 Standard Package 25
