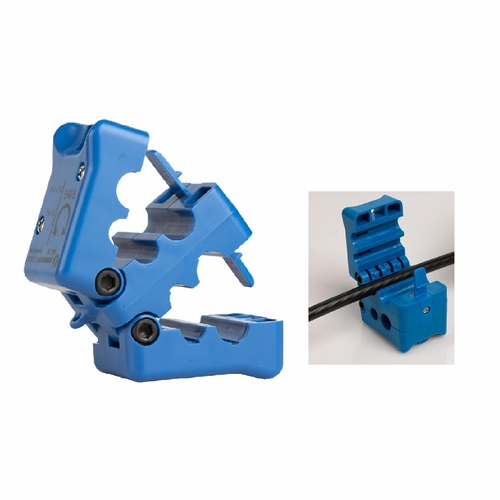

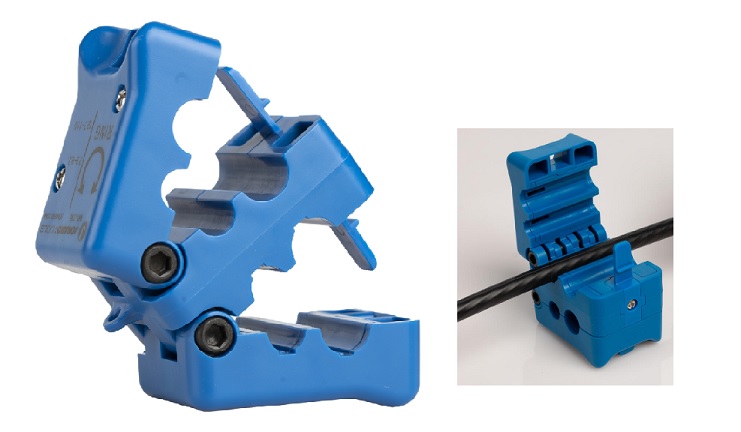

Jonard Ms-336 Mid Span Slit & Ring Tool (7.9Mm - 11.0Mm) 811490014770
Available*
Item # 53833480
Model # MS-336
$123.95
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
SLITTER
Fiber Optic Products
Hand Tools
Wire Strippers- Cable Sheath- Web Slitters
JONARD INDUSTRIES CORP
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
Jonard Ms-336 Mid Span Slit & Ring Tool (7.9Mm - 11.0Mm) 811490014770
The Patented Ms-336 Mid Span Slit And Ring Tool Is Designed To Provide Easy Access To Optical Fibers In Thin Walled Outer Jacketed Cables. The Ms-336 Is An Extension Of The Ms-326 Series Tool Targeting Larger Cables Such As Cornings Minixtend Hd 288 And 432 Fiber Count Cables.
Consists Of 2 Precision Slitting Grooves And 2 Precision Ring Grooves. Grooves Ranging In Sizes From 7.9-8.2 & 10.7-11 Mm One Side Of Tool Performs Radial/Ring Cuts And The Other Side Slits The Cable (Longitudinal Cut) Indicator Line On Top Of The Unit Indicates The Position Of The Blade For Accurate Slitting And Ringing This Tool Is Specifically Designed For Use On Corning Minixtend Hd 288F And Minixtend Hd 432F Cable. Both With Fastaccess Replacement Blades Available, Part Number Ms-336Rb Blades Last At Least 5,000 Slits/Cuts Groove Sizes: 7.9-8.2 | 10.7-11.0 Mm
Specifications Cut Type Slit, Ring
Number Of Slitting Grooves 4
Number Of Ringing Grooves 4
Cable Type Corning'S Minixtend Hd 288 And 432
Cable Diameter 7.9 - 11 Mm
Dimensions 2.3" X 1.5" X 2.2" (58.4Mm X 38.1Mm X 55.9Mm)
Weight 0.250 Lb (113 G)
Upc # 811490014770
The Patented Ms-336 Mid Span Slit And Ring Tool Is Designed To Provide Easy Access To Optical Fibers In Thin Walled Outer Jacketed Cables. The Ms-336 Is An Extension Of The Ms-326 Series Tool Targeting Larger Cables Such As Cornings Minixtend Hd 288 And 432 Fiber Count Cables.
Consists Of 2 Precision Slitting Grooves And 2 Precision Ring Grooves. Grooves Ranging In Sizes From 7.9-8.2 & 10.7-11 Mm One Side Of Tool Performs Radial/Ring Cuts And The Other Side Slits The Cable (Longitudinal Cut) Indicator Line On Top Of The Unit Indicates The Position Of The Blade For Accurate Slitting And Ringing This Tool Is Specifically Designed For Use On Corning Minixtend Hd 288F And Minixtend Hd 432F Cable. Both With Fastaccess Replacement Blades Available, Part Number Ms-336Rb Blades Last At Least 5,000 Slits/Cuts Groove Sizes: 7.9-8.2 | 10.7-11.0 Mm
Specifications Cut Type Slit, Ring
Number Of Slitting Grooves 4
Number Of Ringing Grooves 4
Cable Type Corning'S Minixtend Hd 288 And 432
Cable Diameter 7.9 - 11 Mm
Dimensions 2.3" X 1.5" X 2.2" (58.4Mm X 38.1Mm X 55.9Mm)
Weight 0.250 Lb (113 G)
Upc # 811490014770
