JONARD MS-326 Micro Duct Fiber Cable Slit And Ring Tool 811490019263
Available*
Item # 37302070
Model # MS-326
$123.95
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Slitter
Fiber Optic Products
Hand Tools
Wire Strippers- Cable Sheath- Web Slitters
Jonard Industries Corp
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

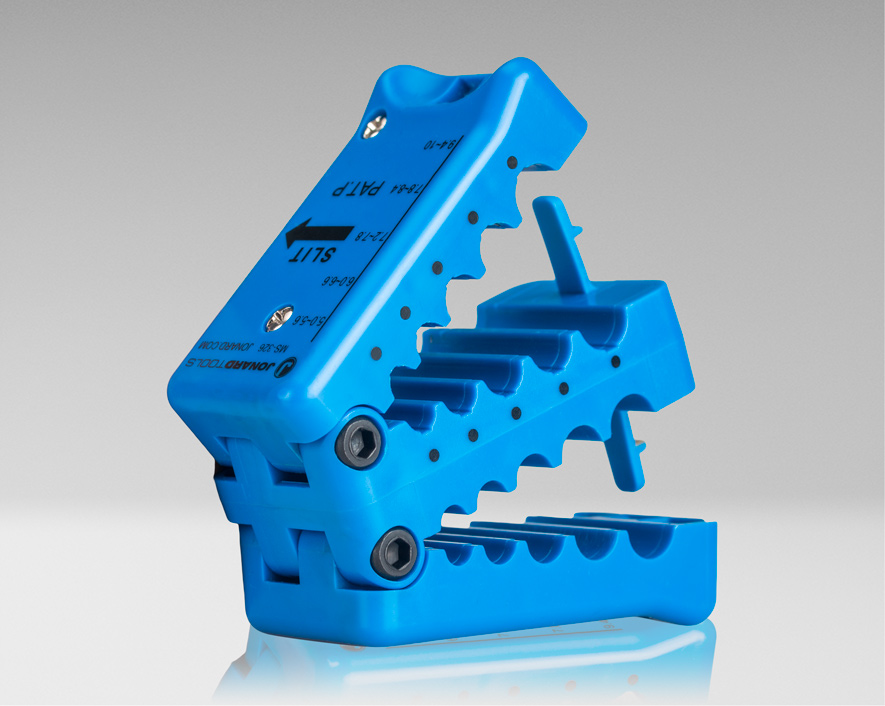

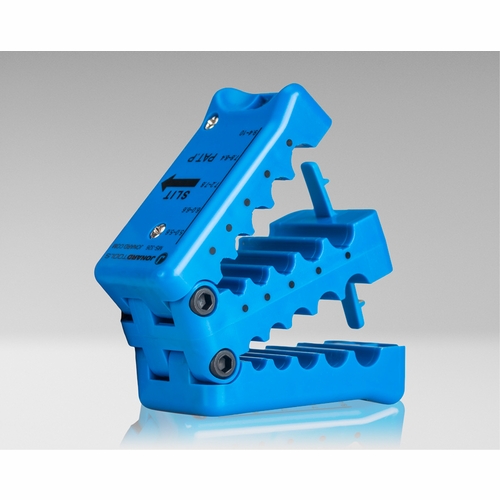

JONARD MS-326 MICRO DUCT FIBER CABLE SLIT AND RING TOOL
The patented MS-326 Fiber Optic Mid Span Slit and Ring Tool is designed to provide easy access into fiber optic cables specifically used in micro ducts. These cables have a thin wall jacket design that is difficult to open without causing damage to the buffer tubes inside, but the MS-326 addresses that concern. The MS-326 will also slit thin wall buffer tubes. Building on the popularity of the Jonard Tools MS-6 and MS-26 Fiber Optic Mid Span Slitting Tools, we have incorporated a ring feature in the tool to make it even more versatile.
The MS-326 consists of 5 precision slitting grooves and 5 ring grooves ranging in size from 5 mm to 10 mm.
Groove Sizes: 5.0 - 5.6 mm | 6.0 - 6.6 mm | 7.2 - 7.8 mm | 7.8 - 8.4 mm | 9.4 - 10 mm
Instructions:
Identify the correct side of the tool & groove size for your cable. Place cable in the tool and close to lock in place. To Ring: Rotate 3-6 times in direction of arrow To Slit: Pull in direction of arrow Open tool and remove cable. If slit, peel open the jacket along slit lines.
Note: This tool was designed for Corning fiber cables, "MiniXtend Fast Access Binderless" and "HD MiniXtend" as well as other similar styles.
Replacement blade set available, part number: MSB-5010
The patented MS-326 Fiber Optic Mid Span Slit and Ring Tool is designed to provide easy access into fiber optic cables specifically used in micro ducts. These cables have a thin wall jacket design that is difficult to open without causing damage to the buffer tubes inside, but the MS-326 addresses that concern. The MS-326 will also slit thin wall buffer tubes. Building on the popularity of the Jonard Tools MS-6 and MS-26 Fiber Optic Mid Span Slitting Tools, we have incorporated a ring feature in the tool to make it even more versatile.
The MS-326 consists of 5 precision slitting grooves and 5 ring grooves ranging in size from 5 mm to 10 mm.
Groove Sizes: 5.0 - 5.6 mm | 6.0 - 6.6 mm | 7.2 - 7.8 mm | 7.8 - 8.4 mm | 9.4 - 10 mm
Instructions:
Identify the correct side of the tool & groove size for your cable. Place cable in the tool and close to lock in place. To Ring: Rotate 3-6 times in direction of arrow To Slit: Pull in direction of arrow Open tool and remove cable. If slit, peel open the jacket along slit lines.
Note: This tool was designed for Corning fiber cables, "MiniXtend Fast Access Binderless" and "HD MiniXtend" as well as other similar styles.
Replacement blade set available, part number: MSB-5010
