OPTIX AMERICA 3XMC-SCU-OM1-09-10 3X 900um SC Multi Mode OM1 Mechancial Connector (Ten Pack)
Available*
Item # 53760715
Model # 3XMC-SCU-OM1-09
$74.25
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Connector
Fiber Optic Products
Fusion and Mechanical Splicing
Fiber Mechanical- Glue On Connector
Optix America
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
OPTIX AMERICA 3XMC-SCU-OM1-09-10 3X 900um SC Multi Mode OM1 Mechancial Connector (Ten Pack)
OPTIX AMERICA 3XMC-SCU-OM1-09-10 3X 900um SC Multi Mode OM1 Mechancial Connector (Ten Pack)
Part # 3XMC-SCU-OM1-09-10 Description SC OM1 PC 900um Housing Color Beige Boot Color Beige Quantity 10/Pack

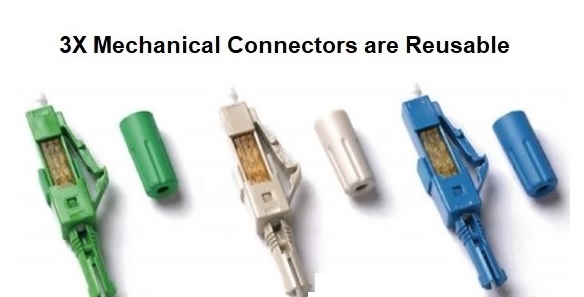

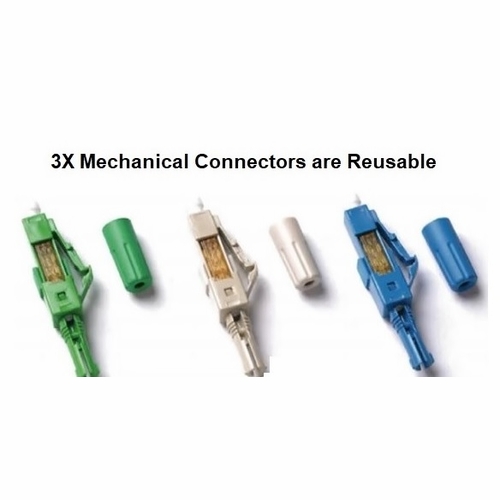

The Optix 3X 900um mechanical connector is a simple two piece design and features a fast and consistent field termination in less than two minutes. These connectors are reusable up to three opportunities avoiding costly scrapped connectors on "failed" connections. Our connectors use Corning fiber and are compliant to TIA/EIA 604-3. They are available in LC, SC, and ST styles and are designed to be spliced with 900um or 250um single strand tight buffer or loose tube cable. This connector simple termination allows for a reliable termination in field applications
Features Twenty Year Product Warranty Simple two piece design Fast & Consistent Field Termination Field installable in less than 2 minutes Reusable up to 3 Times Utilizing VFL through the connector window provides full proof results Flame Retardant Connector Housings Made with Corning Fiber Compliant to standard TIA/EIA 604-3
PROCEDURE FOR INSTALLATION
-SC Connectors: Mark 20mm and 38mm from the end of the cable -LC Connectors: Mark 20mm and 40mm from the end of the cable -Strip insulation and acrylate coating to 20mm -Cleave fiber to 10mm -Strip insulation to second mark -Take out the black jig on the connector on the opposite side of the window -Insert fiber into connector using guide rails until fiber "bends" -Press the window to engage mechanical connection -Screw on the boot
OPTIX AMERICA 3XMC-SCU-OM1-09-10 3X 900um SC Multi Mode OM1 Mechancial Connector (Ten Pack)
Part # 3XMC-SCU-OM1-09-10 Description SC OM1 PC 900um Housing Color Beige Boot Color Beige Quantity 10/Pack
The Optix 3X 900um mechanical connector is a simple two piece design and features a fast and consistent field termination in less than two minutes. These connectors are reusable up to three opportunities avoiding costly scrapped connectors on "failed" connections. Our connectors use Corning fiber and are compliant to TIA/EIA 604-3. They are available in LC, SC, and ST styles and are designed to be spliced with 900um or 250um single strand tight buffer or loose tube cable. This connector simple termination allows for a reliable termination in field applications
Features Twenty Year Product Warranty Simple two piece design Fast & Consistent Field Termination Field installable in less than 2 minutes Reusable up to 3 Times Utilizing VFL through the connector window provides full proof results Flame Retardant Connector Housings Made with Corning Fiber Compliant to standard TIA/EIA 604-3
PROCEDURE FOR INSTALLATION
-SC Connectors: Mark 20mm and 38mm from the end of the cable -LC Connectors: Mark 20mm and 40mm from the end of the cable -Strip insulation and acrylate coating to 20mm -Cleave fiber to 10mm -Strip insulation to second mark -Take out the black jig on the connector on the opposite side of the window -Insert fiber into connector using guide rails until fiber "bends" -Press the window to engage mechanical connection -Screw on the boot
