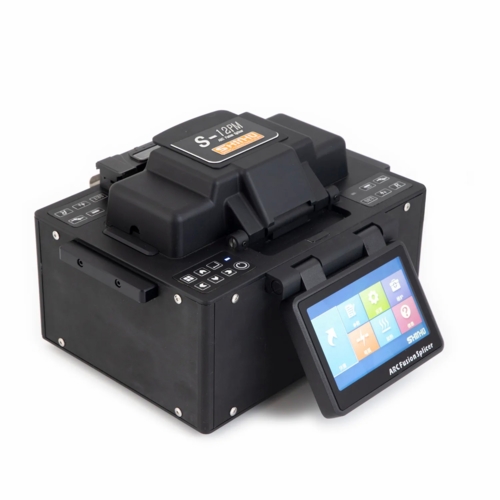

SHINHO S12 PM fiber fusion splicer
Polarization Maintaining (PM) Fiber Fusion Splicer S12PM Up to 250µm cladding diameter PM fiber optic cable Automatic Polarization maintaining(PM) Core to core alignment low splicing loss Dual End-view and Profile observation and alignment Arc automatic calibration and splicing PM fiber 0, 45 and 90 degree alignment Applicable to variety fibers splicing, such as Panda ,bow-tie and elliptical fiber
Compare our PM fusion splicer to ARCMaster® FSM-100P
SHINHO Polarization Maintaining (PM) Fiber Fusion Splicer S12
SHINHO S-12 Polarization Maintaining (PM) fiber fusion splicer is with the latest accurate fiber alignment technology, it has very stable performance and low fusion loss, it is specially designed for Panda,bow-tie and elliptical fibers.
Features
Up to 250µm cladding diameter PM fiber optic cable Automatic Polarization maintaining(PM) Core to core alignment low splicing loss Endview and Profile observation and alignment Arc automatic calibration and splicing PM fiber 0, 45 and 90 degree alignment Applicable to variety fibers splicing, such as Panda ,bow-tie and elliptical fiber
Specifications
Applicable fiber MMF(ITU-G651),SMF(ITU-G652), NZDS(ITU-G655),DS(ITU-G653)
PM fiber Panda fiber and other type PMF
Cladding diameter
80~250µm
Coating diameter
160~900µm
Typical splice loss
SMF:0.02dB MMF:0.01dB NZDS,DS:0.03dB,PMF 0.05dB
Extinction ratio
32dB(PANDA)
Cleaved length
10~16mm(coating diameter<250um); 16mm(coating diameter:250-1000um)
Alignment method
Profile and Endface alignment
Splicing program
40 groups
Heating program
20group; Automatic heating
Operation mode
Manual/ Automatic
Typical splice time
Unpolarized fiber: 15seconds; PM Fiber:45seconds
Typical heating time
30 seconds for 60mm and 40mm shrinkable sleeves
Fiber Identification
Automatically Identify SMF,MMF,NZDS,DS,PANDA PMF
Fiber magnification
180X (X or Y view), 90X (X and Y view)
Viewing display
Dual high sensitivity camera, 5 inch 800*480 LCD Monitor
Data storage
4000 groups data records
Tension test
1.8~2.25N
Interface
GUI menu interface, easy for operation
Power supply
Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V
Terminals
USB 2.0 port, for software upgrading, records exporting
Operating condition
0 ~ 40? Not frosted
Dimension/Weight
260mm(W)×202mm(D)×170mm(H) /5.1kg(incuding battery)
