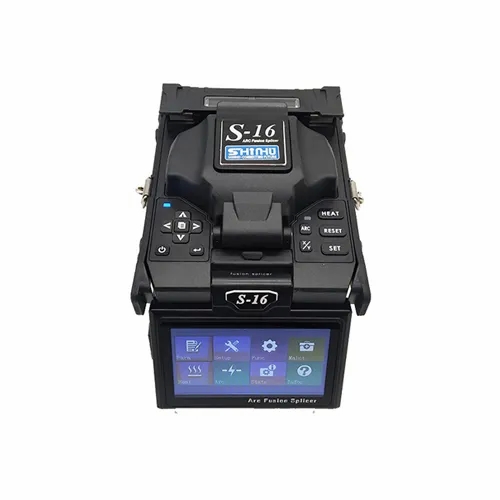

SHINHO S16 Active Clad Alignment Fusion Splicer Kit with X50B cleaver (Touch Screen Version)
Available*
Item # 53760020
Model # S16
$2,650.00
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Fusion Spl
Fiber Optic Products
Fusion and Mechanical Splicing
Fiber Fusion Splicer
Shinho America Inc
Fusion Splicers
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
SHINHO S16 Clad Alignment Fusion Splicer Kit with X50B cleaver(Touch Screen Version)
4 Motor Active V-groove Clad Alignment Fusion Splicer S16 Active V-groove Fusion Splicer 4 motors active v-groove accurate alignment Robust all alloy construction including top cover Economical and suitable for FTTx/ FTTH Automatic ARC & position calibration 1s boot up, 7s splicing, 26s heating Stable performance, average splice loss 0.02dB Inductive automatic heater, industrial CPU Big capacity battery, more than 250 cycles splice & heat Suitable for bare fiber, patch cords, drop cable etc.
Robust Multi Function ARC Fiber Fusion Splicer S16
S-16 Fiber fusion splicer is a robust and stable model, used for both indoor and outdoor projects. it is with the upgrade the CPU to get the faster operation speed. It is also with the latest fiber alignment technology to get the low fusion loss. It is suitable for MAN/Telecommunication/FTTx and other related fiber optical projects.
Features
1s boot up, 6s splicing, 18s heating 4 motors accurate fiber alignment technology Fast splicing and heating, automatic ARC calibration Inductive automatic heater, upgraded quad-core CPU 76cm dropping anti-shock, IP5X dustproof and IPX2 waterproof
Specifications
Applicable fiber SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G.655) Diameter of cladding 80 -150µm Diameter of coating 160-900µm Typical splice loss SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB Return loss > 60dB Fibe cleaved length 5-16mm ( coating diameter < 250um), 16mm (coating diameter:250-1000um) Splicing program 40 groups Operate mode Automatic/Manual Auto-heating Available Typical splicing time 6 seconds Typical heating time 18 seconds Fiber magnification 250X (X or Y view), 125X (X and Y view) Display screen 4.3 inch color LCD monitor Records storage 4000 results Loss evaluation Available Tension test 1.8-2.2 N Interface GUI menu interface, easy for operation Battery 5200mAh Li-battery, typical 250 cycles splicing and heating, support separating charging Power supply Adapter, input: AC 100-240 V(50/60HZ), output: 11-13.5V Electrodes life More than 4000 ARC discharges, can be replaced conveniently Ternimal USB2.0 port, for software upgrading and records exporting Operating conditions Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10?~+50?, Wind speed: Max 15m/s Dimension 160mm(L) * 136mm(W) * 140mm(H) (with rubber armor) Weight 2.20kg (including battery)
4 Motor Active V-groove Clad Alignment Fusion Splicer S16 Active V-groove Fusion Splicer 4 motors active v-groove accurate alignment Robust all alloy construction including top cover Economical and suitable for FTTx/ FTTH Automatic ARC & position calibration 1s boot up, 7s splicing, 26s heating Stable performance, average splice loss 0.02dB Inductive automatic heater, industrial CPU Big capacity battery, more than 250 cycles splice & heat Suitable for bare fiber, patch cords, drop cable etc.
Robust Multi Function ARC Fiber Fusion Splicer S16
S-16 Fiber fusion splicer is a robust and stable model, used for both indoor and outdoor projects. it is with the upgrade the CPU to get the faster operation speed. It is also with the latest fiber alignment technology to get the low fusion loss. It is suitable for MAN/Telecommunication/FTTx and other related fiber optical projects.
Features
1s boot up, 6s splicing, 18s heating 4 motors accurate fiber alignment technology Fast splicing and heating, automatic ARC calibration Inductive automatic heater, upgraded quad-core CPU 76cm dropping anti-shock, IP5X dustproof and IPX2 waterproof
Specifications
Applicable fiber SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G.655) Diameter of cladding 80 -150µm Diameter of coating 160-900µm Typical splice loss SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB Return loss > 60dB Fibe cleaved length 5-16mm ( coating diameter < 250um), 16mm (coating diameter:250-1000um) Splicing program 40 groups Operate mode Automatic/Manual Auto-heating Available Typical splicing time 6 seconds Typical heating time 18 seconds Fiber magnification 250X (X or Y view), 125X (X and Y view) Display screen 4.3 inch color LCD monitor Records storage 4000 results Loss evaluation Available Tension test 1.8-2.2 N Interface GUI menu interface, easy for operation Battery 5200mAh Li-battery, typical 250 cycles splicing and heating, support separating charging Power supply Adapter, input: AC 100-240 V(50/60HZ), output: 11-13.5V Electrodes life More than 4000 ARC discharges, can be replaced conveniently Ternimal USB2.0 port, for software upgrading and records exporting Operating conditions Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10?~+50?, Wind speed: Max 15m/s Dimension 160mm(L) * 136mm(W) * 140mm(H) (with rubber armor) Weight 2.20kg (including battery)
