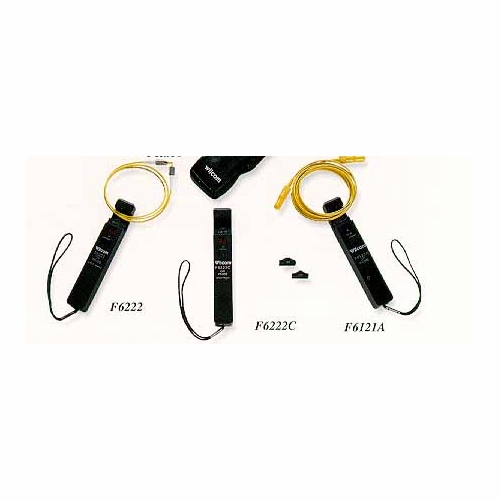

WILCOM F6222C OPTICAL FIBER IDENTIFIER,

WILCOM F6222C OPTICAL FIBER IDENTIFIER, NEW Hand-Held Optical Fiber Identifiers: Self-contained installation and maintenance instruments which identify optical fibers by detecting the optical signals being transmitted through them. The F6121A and F6222 Fiber Optic Probes eliminate the need to open the fiber at the splice point for identification, eliminating the possibility of service interruption. Optical Fiber Identifers are for single-mode cable only.

F6222 Advanced Optical Fiber Identifier The F6222 is the most feature-rich Optical Fiber Identifier on the market today. It has all the features of the F6121A with the addition of::

Measures and Displays Relative Core Power in dB Hands-Free operation

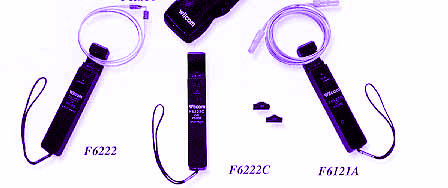

The Wilcom Models F6222 and F6222C Optical Fiber Identifier are a rugged, easy-to-use installation and maintenance instrument which identifies optical fibers by detecting the optical signals being transmitted through a singlemode fiber. The Model F6222C Optical Fiber Identifier is designed specifically to meet the needs of the CATV industry. By utilizing local detection technology (non-destructive macro-bend detection), both units eliminate the need to open the fiber at the splice point for identification; eliminating the probability of interrupting service. Both Optical Fiber Identifiers detect low frequency tones at 270 Hz, 1000 Hz and 2000 Hz. When traffic is present on the fiber under test, an audible tone can be heard as well as the traffic direction which is indicated by LEDs illuminating on the probe. During installations, maintenance, rerouting, or restorations it is often necessary to isolate a specific fiber without disrupting service. A light source such as Wilcom's Model FS1316 used in conjunction with the Optical Fiber Identifiers can make the job a lot easier. The Optical Fiber Identifiers include a carrying pouch containing three easy to use field interchangeable adapter heads to accommodate; 900 µm buffered fiber, ribbon or 250µm coated fiber and 3mm jacketed fiber. v Rugged Metal Case The units use the same field proven lightweight rugged metal housing as the rest of Wilcom's Optical FIber Identifier product line. v 850nm to 1700nm Range With the use of InGaAs detectors, the unit can be used on singlemode and multimode applications. v Audible Tone The unit provides an audible tone in the presence of a fiber optic signal. v Core Power Display Both the F6222 and F6222C can display Relative Core Power which is helpful in identifying bad connectors, splice points, etc. v LED Indication LEDs indicate tone detection, Traffic presence, Traffic Direction, and Low Battery. v Hands-Free-Operation With an easy to use thumb lock, hands-free operation can be enabled and disabled. Features and Benefits
