Buckingham 50063D OX BLOCK® CLEVIS TOP W/ Buck Pin and OX HORN™ - 50063D
Available*
Item # 376507660
Model # 50063D
$1,040.45
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Blocks
Safety Equipment
Personnel Retrieval
Blocks-Placing-Prelashing- Overlashing
Buckingham Manufacturing
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

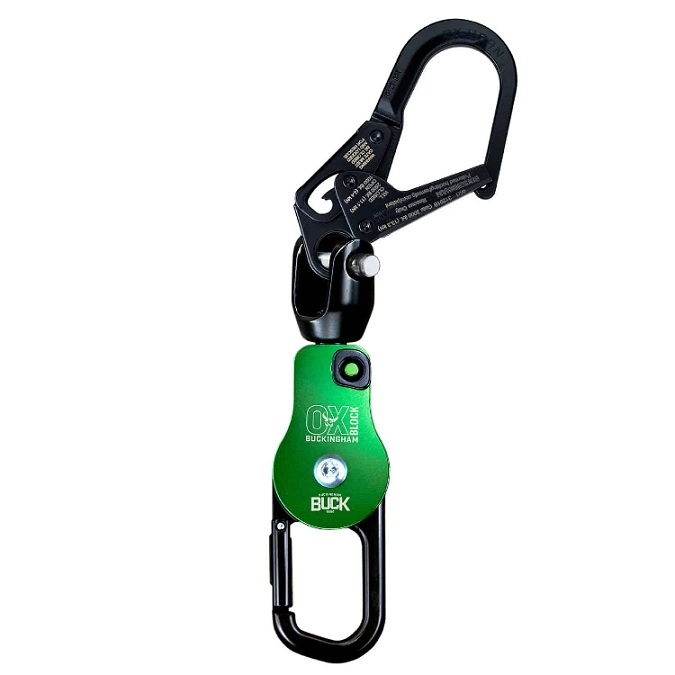

Buckingham 50063D OX BLOCK® CLEVIS TOP W/ Buck Pin and OX HORN™ - 50063D
Buckingham 50063D OX BLOCK® CLEVIS TOP W/ Buck Pin and OX HORN™ - 50063D
Takes Buckingham’s OX BLOCK® Clevis Top to the next level with the newest addition, the Buck Pin. The original design featured a shoulder bolt design which required a ratchet and a hex wrench to remove the lock nut. It also required a new lock nut every time you change accessories, but the Buck Pin makes this process much easier. Now you can simply remove the pin at the press of a button!
The patented OX BLOCK® replaces standard handline blocks, parted blocks and various snatch blocks. Has greater WLLs than blocks of similar size. When configured with optional pulleys, the OX BLOCK® can be used to create a 4:1, 5:1 or 6:1 mechanical advantage reducing the amount of force needed to lift heavy loads. The advantage of the pulleys used by Buckingham is the swivel side plate that allows for quick and easy rope installation without removing the pulley from the connecting device. ASME B30 Compliant
n OX BLOCK® Clevis Top with a Buck Pin and an orange hook is a versatile design allowing the user to customize the attachment options with authorized Buckingham accessories. The hook can also be attached directly to a suitable anchor point.
The Buck Pin is a SLIC Pin specifically customized to fit our Ox clevis top. The advantage of the Buck Pin is that it allows the user to add or remove accessories more quickly and easily than the shoulder bolt does. The OX BLOCK® is a rope snatchblock with an integrated friction bar used for:
Hurtman/self-rescue Lowering Raising Snubbing loads
Specifications Product Number: 50063D Product Name: OX BLOCK™ CLEVIS TOP W/ Buck Pin and OX HORN™ Material: Lightweight Aluminum Length: 10.5" Width: 2" Gate Opening Capacity: 1.5" Weight: 2.15 Adjustable Sling: No Connector WLL: OX Horn – 2,500 lbs. (Closed Gate) / 1,000 lbs. (Open Gate) HOOK TO EYE: MBS: 6,000 lbs WLL: 1,500 lbf SHEAVE TO EYE: MBS: 10,000 lbs WLL: 2,500 lbf OX Block™ Standards: ASME B30 Compliant Made In USA?: Yes
Buckingham 50063D OX BLOCK® CLEVIS TOP W/ Buck Pin and OX HORN™ - 50063D
Takes Buckingham’s OX BLOCK® Clevis Top to the next level with the newest addition, the Buck Pin. The original design featured a shoulder bolt design which required a ratchet and a hex wrench to remove the lock nut. It also required a new lock nut every time you change accessories, but the Buck Pin makes this process much easier. Now you can simply remove the pin at the press of a button!
The patented OX BLOCK® replaces standard handline blocks, parted blocks and various snatch blocks. Has greater WLLs than blocks of similar size. When configured with optional pulleys, the OX BLOCK® can be used to create a 4:1, 5:1 or 6:1 mechanical advantage reducing the amount of force needed to lift heavy loads. The advantage of the pulleys used by Buckingham is the swivel side plate that allows for quick and easy rope installation without removing the pulley from the connecting device. ASME B30 Compliant
n OX BLOCK® Clevis Top with a Buck Pin and an orange hook is a versatile design allowing the user to customize the attachment options with authorized Buckingham accessories. The hook can also be attached directly to a suitable anchor point.
The Buck Pin is a SLIC Pin specifically customized to fit our Ox clevis top. The advantage of the Buck Pin is that it allows the user to add or remove accessories more quickly and easily than the shoulder bolt does. The OX BLOCK® is a rope snatchblock with an integrated friction bar used for:
Hurtman/self-rescue Lowering Raising Snubbing loads
Specifications Product Number: 50063D Product Name: OX BLOCK™ CLEVIS TOP W/ Buck Pin and OX HORN™ Material: Lightweight Aluminum Length: 10.5" Width: 2" Gate Opening Capacity: 1.5" Weight: 2.15 Adjustable Sling: No Connector WLL: OX Horn – 2,500 lbs. (Closed Gate) / 1,000 lbs. (Open Gate) HOOK TO EYE: MBS: 6,000 lbs WLL: 1,500 lbf SHEAVE TO EYE: MBS: 10,000 lbs WLL: 2,500 lbf OX Block™ Standards: ASME B30 Compliant Made In USA?: Yes
