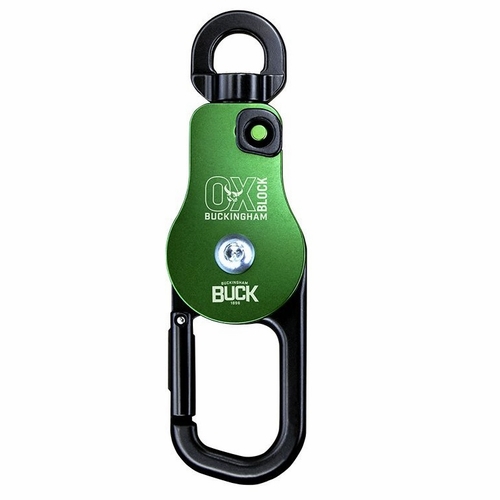

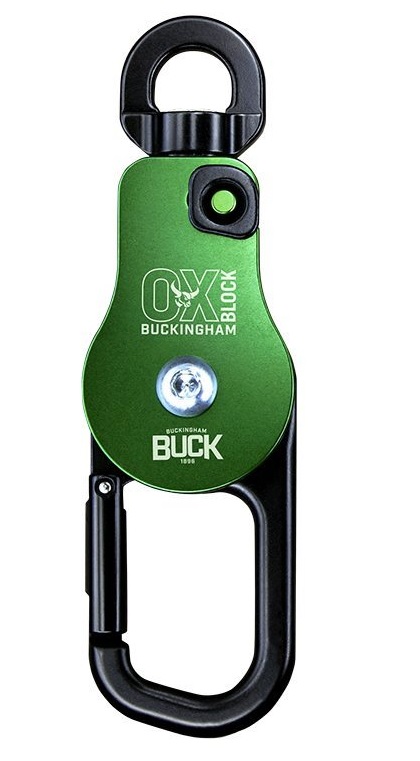

BUCKINGHAM 50061 OX BLOCK
BUCKINGHAM 50061 OX BLOCK
The OX BLOCK® is a rope snatchblock with an integrated friction bar used for: Hurtman/self-rescue Lowering Raising Snubbing loads
The patented OX BLOCK® replaces standard handline blocks, parted blocks and various snatch blocks. Has greater WLLs than blocks of similar size. When configured with optional pulleys, the OX BLOCK® can be used to create a 4:1, 5:1 or 6:1 mechanical advantage reducing the amount of force needed to lift heavy loads. The advantage of the pulleys used by Buckingham is the swivel side plate that allows for quick and easy rope installation without removing the pulley from the connecting device. ASME B30 Compliant
Product Number: 50061 Product Name: OX Block™ Material: Lightweight Aluminum Length: 10.5" Width: 2" Gate Opening Capacity: 1.5" Weight: 2.15 HOOK TO EYE: MBS: 6,000 lbs WLL: 1,500 lbf SHEAVE TO EYE: MBS: 10,000 lbs WLL: 2,500 lbf Made In USA?: Yes
