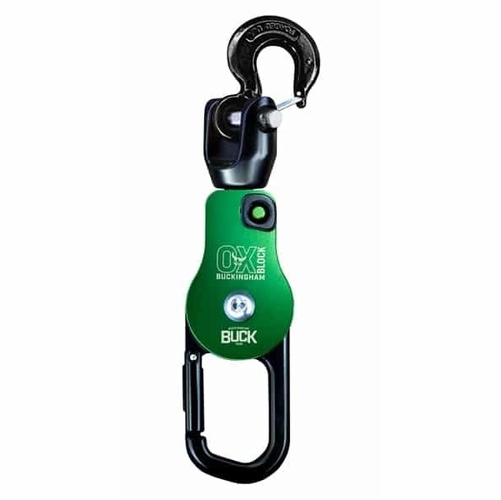

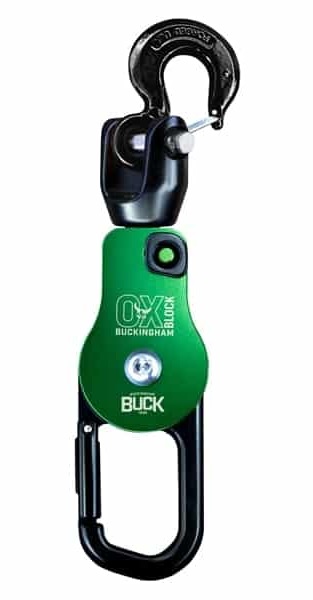

Buckingham 50063C OX BLOCK® CLEVIS TOP w/ Buck Pin and HOOK - 50063C
Buckingham 50063C OX BLOCK® CLEVIS TOP w/ Buck Pin and HOOK - 50063C
Takes Buckingham’s OX BLOCK® Clevis Top to the next level with the newest addition, the Buck Pin. The original design featured a shoulder bolt design which required a ratchet and a hex wrench to remove the lock nut. It also required a new lock nut every time you change accessories, but the Buck Pin makes this process much easier. Now you can simply remove the pin at the press of a button!
The patented OX BLOCK® replaces standard handline blocks, parted blocks and various snatch blocks. Has greater WLLs than blocks of similar size. When configured with optional pulleys, the OX BLOCK® can be used to create a 4:1, 5:1 or 6:1 mechanical advantage reducing the amount of force needed to lift heavy loads. The advantage of the pulleys used by Buckingham is the swivel side plate that allows for quick and easy rope installation without removing the pulley from the connecting device. ASME B30 Compliant
An OX BLOCK® Clevis Top with a Buck Pin and a black hook is a versatile design allowing the user to customize the attachment options with authorized Buckingham accessories. The hook can also be attached directly to a suitable anchor point.
The Buck Pin is a SLIC Pin specifically customized to fit our Ox clevis top. The advantage of the Buck Pin is that it allows the user to add or remove accessories more quickly and easily than the shoulder bolt does.
Specifications Product Number: 50063C Product Name: OX BLOCK™ CLEVIS TOP w/ Buck Pin and HOOK Material: Lightweight Aluminum Length: 10.5" Width: 2" Gate Opening Capacity: 1.5" Weight (OX Block™ ONLY): 2.15 Adjustable Sling: No Connector: Clevis Top Hook HOOK TO EYE: MBS: 6,000 lbs WLL: 1,500 lbf SHEAVE TO EYE: MBS: 10,000 lbs WLL: 2,500 lbf OX Block™ Standards: ASME B30 Compliant Made In USA?: Yes
