Buckingham 50063A-4/80 OX BLOCK® BUCK PIN CLEVIS TOP WITH CARABINER HANDLINE ASSEMBLY - 50063A-4/80
Available*
Item # 376507646
Model # 50063A-4/80
$1,692.97
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Blocks
Safety Equipment
Personnel Retrieval
Blocks-Placing-Prelashing- Overlashing
Buckingham Manufacturing
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
Buckingham 50063A-4/80 OX BLOCK® BUCK PIN CLEVIS TOP WITH CARABINER HANDLINE ASSEMBLY - 50063A-4/80
Buckingham 50063A-4/80 OX BLOCK® BUCK PIN CLEVIS TOP WITH CARABINER HANDLINE ASSEMBLY - 50063A-4/80
Takes Buckingham’s OX BLOCK® Clevis Top to the next level with the newest addition, the Buck Pin. The original design featured a shoulder bolt design which required a ratchet and a hex wrench to remove the lock nut. It also required a new lock nut every time you change accessories, but the Buck Pin makes this process much easier. Now you can simply remove the pin at the press of a button!
The patented OX BLOCK® replaces standard handline blocks, parted blocks and various snatch blocks. Has greater WLLs than blocks of similar size. When configured with optional pulleys, the OX BLOCK® can be used to create a 4:1, 5:1 or 6:1 mechanical advantage reducing the amount of force needed to lift heavy loads. The advantage of the pulleys used by Buckingham is the swivel side plate that allows for quick and easy rope installation without removing the pulley from the connecting device. ASME B30 Compliant
SKU: 50063A-4/80

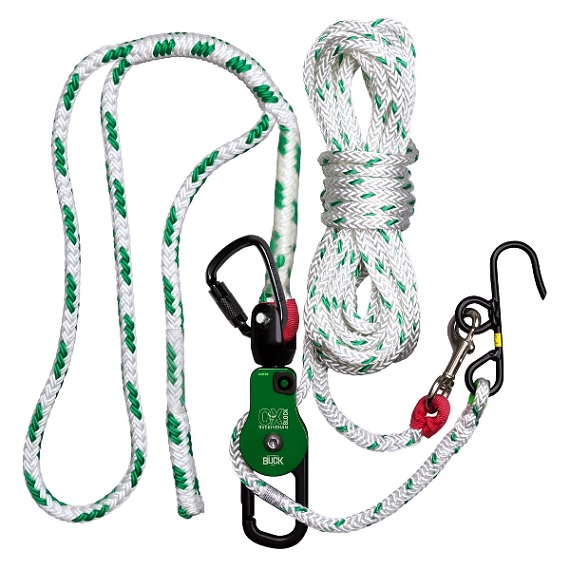

An OX BLOCK® Clevis top w/ Buck Pin (50063) that features a steel rigging carabiner (5005S5), 4' x 5/8" adjustable sling, and 80' handline assembly.
The Buck Pin is a SLIC Pin specifically customized to fit our Ox clevis top. The advantage of the Buck Pin is that it allows the user to add or remove accessories more quickly and easily than the shoulder bolt does. The OX BLOCK® is a rope snatch block with an integrated friction bar used for:
Hurtman/self-rescue Lowering Raising Snubbing loads *Handline hook and snap are not intended for human support.
Specifications Product Number: 50063A-4/80 Product Name: OX BLOCK™ BUCK PIN CLEVIS TOP WITH CARABINER HANDLINE ASSEMBLY Material: Lightweight Aluminum Length: 10.5" Width: 2" Gate Opening Capacity: 1.5" Weight: 9.7 lbs. Adjustable Sling: 4' x 5/8" Carabiner Steel Rigging Carabiner – 5005S5 Handline Assembly: 80' Handline Hook Handline Hook WLL: 500 lbs. Handline Snap MBS: 750 lbs. MBS: 6,000 lbs. WLL: 1,500 lbf. MBS: 10,000 lbs. WLL: 2,500 lbf. OX Block Standards: ASME B30 Compliant Made in USA?: Yes
Buckingham 50063A-4/80 OX BLOCK® BUCK PIN CLEVIS TOP WITH CARABINER HANDLINE ASSEMBLY - 50063A-4/80
Takes Buckingham’s OX BLOCK® Clevis Top to the next level with the newest addition, the Buck Pin. The original design featured a shoulder bolt design which required a ratchet and a hex wrench to remove the lock nut. It also required a new lock nut every time you change accessories, but the Buck Pin makes this process much easier. Now you can simply remove the pin at the press of a button!
The patented OX BLOCK® replaces standard handline blocks, parted blocks and various snatch blocks. Has greater WLLs than blocks of similar size. When configured with optional pulleys, the OX BLOCK® can be used to create a 4:1, 5:1 or 6:1 mechanical advantage reducing the amount of force needed to lift heavy loads. The advantage of the pulleys used by Buckingham is the swivel side plate that allows for quick and easy rope installation without removing the pulley from the connecting device. ASME B30 Compliant
SKU: 50063A-4/80
An OX BLOCK® Clevis top w/ Buck Pin (50063) that features a steel rigging carabiner (5005S5), 4' x 5/8" adjustable sling, and 80' handline assembly.
The Buck Pin is a SLIC Pin specifically customized to fit our Ox clevis top. The advantage of the Buck Pin is that it allows the user to add or remove accessories more quickly and easily than the shoulder bolt does. The OX BLOCK® is a rope snatch block with an integrated friction bar used for:
Hurtman/self-rescue Lowering Raising Snubbing loads *Handline hook and snap are not intended for human support.
Specifications Product Number: 50063A-4/80 Product Name: OX BLOCK™ BUCK PIN CLEVIS TOP WITH CARABINER HANDLINE ASSEMBLY Material: Lightweight Aluminum Length: 10.5" Width: 2" Gate Opening Capacity: 1.5" Weight: 9.7 lbs. Adjustable Sling: 4' x 5/8" Carabiner Steel Rigging Carabiner – 5005S5 Handline Assembly: 80' Handline Hook Handline Hook WLL: 500 lbs. Handline Snap MBS: 750 lbs. MBS: 6,000 lbs. WLL: 1,500 lbf. MBS: 10,000 lbs. WLL: 2,500 lbf. OX Block Standards: ASME B30 Compliant Made in USA?: Yes
