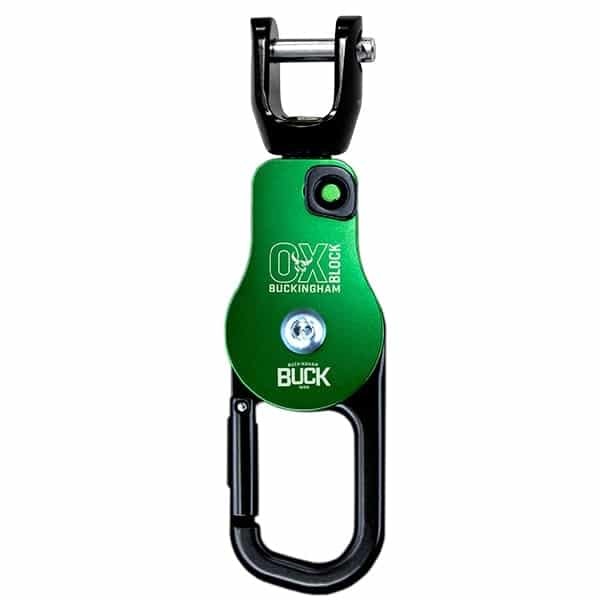

Buckingham 50063 Ox Clevis Top w/ Buck Pin - 50063
Available*
Item # 376506316
Model # 50063
$906.07
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Blocks
Safety Equipment
Personnel Retrieval
Blocks-Placing-Prelashing- Overlashing
Buckingham Manufacturing
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
Buckingham 50063 Ox Clevis Top w/ Buck Pin - 50063
Buckingham 50063 Ox Clevis Top w/ Buck Pin - 50063
Buckingham’s Ox Block® Clevis Top with the newest addition, the Buck Pin. The original design featured a shoulder bolt design which required a ratchet and a hex wrench to remove the lock nut. It also required a new lock nut every time you change accessories, but the Buck Pin makes this process much easier. Now you can simply remove the pin at the press of a button!
Tips/hints: If you want to attach something to the clevis while wearing insulated gloves, you could leave the pin engaged in only one hole so that the clevis is open before you put the gloves on. Then you can push it closed easily while wearing the gloves. The pin can be removed with a screwdriver while wearing the gloves, but it is much easier without them.
Specifications Product Number 50063 Product Name Ox Clevis Top w/ Buck Pin Material: Lightweight Aluminum Length: 10.5" Width: 2" Gate Opening Capacity: 1.5" Weight: 2.15 Adjustable Sling: No HOOK TO EYE: MBS: 6,000 lbs WLL: 1,500 lbf SHEAVE TO EYE: MBS: 10,000 lbs WLL: 2,500 lbf OX Block™ Standards: ASME B30 Compliant Made In USA?: Yes Product Number 223892R Product Name Buck Pin Effective Length (between head and plunger) 1.85" Overall Length 2.4" Diameter 1/2" Weight 2.1 oz Material Zinc Plated Alloy Steel For Use W/ Ox Block w/ Clevis Top Standards Pin itself not tested to a standard. Tensile tested in the Ox clevis to our 10,000 lbf MBS for the Ox Block. Made in the USA Yes
Buckingham 50063 Ox Clevis Top w/ Buck Pin - 50063
Buckingham’s Ox Block® Clevis Top with the newest addition, the Buck Pin. The original design featured a shoulder bolt design which required a ratchet and a hex wrench to remove the lock nut. It also required a new lock nut every time you change accessories, but the Buck Pin makes this process much easier. Now you can simply remove the pin at the press of a button!
Tips/hints: If you want to attach something to the clevis while wearing insulated gloves, you could leave the pin engaged in only one hole so that the clevis is open before you put the gloves on. Then you can push it closed easily while wearing the gloves. The pin can be removed with a screwdriver while wearing the gloves, but it is much easier without them.
Specifications Product Number 50063 Product Name Ox Clevis Top w/ Buck Pin Material: Lightweight Aluminum Length: 10.5" Width: 2" Gate Opening Capacity: 1.5" Weight: 2.15 Adjustable Sling: No HOOK TO EYE: MBS: 6,000 lbs WLL: 1,500 lbf SHEAVE TO EYE: MBS: 10,000 lbs WLL: 2,500 lbf OX Block™ Standards: ASME B30 Compliant Made In USA?: Yes Product Number 223892R Product Name Buck Pin Effective Length (between head and plunger) 1.85" Overall Length 2.4" Diameter 1/2" Weight 2.1 oz Material Zinc Plated Alloy Steel For Use W/ Ox Block w/ Clevis Top Standards Pin itself not tested to a standard. Tensile tested in the Ox clevis to our 10,000 lbf MBS for the Ox Block. Made in the USA Yes
