Buckingham 50061K33 Ultimate OX™ Kit w/ BuckRigger™ - 50061K33
Buckingham 50061K33 Ultimate OX™ Kit w/ BuckRigger™ - 50061K33
The Ultimate Ox™ Kit with BuckRigger™ is a complete rigging system that puts numerous rigging options at the user’s fingertips. It allows the rigging professional to handle loads with greater control. When lowering loads, tension is transferred from the worker to the OX BLOCK™. For example, the user can create a 4-to-1 mechanical advantage on up to a 50’ working height. Similarly, the user can create a 5-to-1 mechanical advantage on up to a 35’ working height.
The Ultimate Ox Kit fits in a small, self-contained bag and can be stored in the back of a truck with ease.
SKU: 50061K33

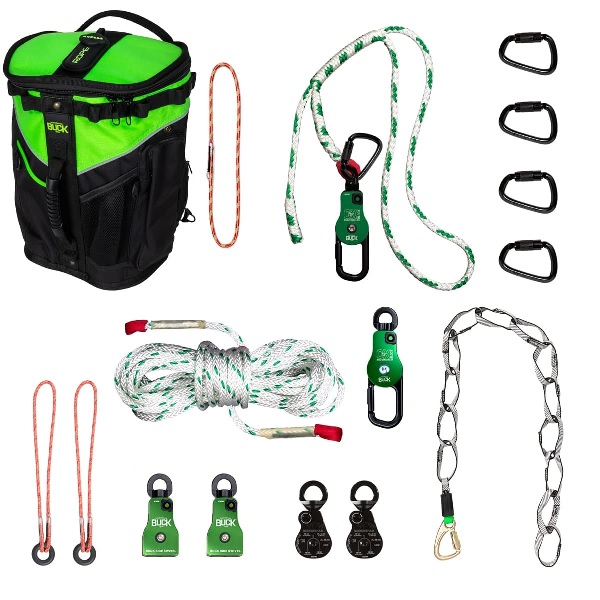

The Ultimate Ox™ Kit with BuckRigger™ contains:
OX BLOCK™ Swivel Eye & Carabiner w/4' Sling - 50061A-4 (Qty: 1) OX BLOCK™ - 50061 (Qty: 1) Buck Side Swivel Single Sheath - 50071B1 (Qty: 2) Single Sheave BuckRigger™ - 5007R1 (QTY: 2) Rope Bag - 4374 (Qty: 1) Rope (250') -39SAM27Q2-250 (Qty: 1) Steel Double Action Carabiner - 5005S5 (Qty: 4) Prusik Loop with Aluminum Ring - P9J8V- M-+34 (Qty: 2) 8mm Warpspeed 16" Endless Loop - P9C8V-10-16S (QTY: 1) BuckLink™ Sling - 3903S-6 (Qty: 1)
Specifications Ultimate OX™ Kit with BuckRigger™ Product Number: 50061A-4 Product Name: OX BLOCK™ HANDLINE ASSEMBLY Material: Polyester Rope, Aluminum OX Block (50061), Alloy Steel Snap (5005S3), Steel Hook (2406) Length: 4' Sling (Rope), 8.27" OX Block (50061), 4.68" snap (5005S3) Width: 5/8" Rope, 1.99" OX Block (50061), 3.07" snap (5005S3) Weight Rating: 5,000 lbs. Weight: 4.25 lbs. Breaking Strength: Snap (5005S3)- MBS 11,240lbs (50KN), OX Block (50061)- MBS (Sheave to eye)- 10,000lbf/MBS (Hook to eye)- 6,000lbf. WLL-50061A-4 (Sling Only)- Straight- 3,200 lbs, Choker- 2,560 lbs, Basket- 6,400lbs. SWL- 2406 (Hook) 500lbs. OX Block Standards: ASME B30 Compliant Made in the USA?: Yes Product Number: 50061 Product Name: OX Block™ Material: Lightweight Aluminum Length: 10.5" Width: 2" Gate Opening Capacity: 1.5" Weight: 2.15" Hook to Eye: MBS: 6,000 lbs. WLL: 1,500 LBF. Sheave to Eye: MBS: 10,000 lbs. WLL: 2,500 LBF> Made in the USA?: Yes Product Number: 50071B1 Product Name: BUCK SIDE SWIVEL™ Length: 7" Width: 3" Weight: 1.6 lbs. Material: Aluminum Diameter of Eye: Swivel Eye - 1" Breaking Strength: MBS - 10000 lbf (44KN) / WLL - 2500 lbf (11KN) Other: Max Rope Diameter - 5/8" (16mm) / 5/8" x 2 1/8" Sealed Ball Bearing Pulley Thickness - 1.813" (46mm) Made in the USA?: Yes Product Number: 5007R1 Weight: 9.2 oz Height: 5.3" (135mm) Width: 2.5" (63mm) Thickness: 1.2" (30mm) Material: Aluminum Pulley Size: 1.5" (38mm) Max Rope Diameter: 1/2" (13mm) Breaking Strength: 8000 lbf (36kN) Weight Rating: WLL - 2000 lbf (8kN) Made in the USA?: Yes Product Number: 4374 Product Name: LARGE ROPEPRO™ DELUXE BAG BY BUCKINGHAM INTERNATIONAL Height: 16" Width: 14" Depth: 16" Weight: 3.2 lbs. Number of Pockets: 6 Outside Pockets: 6 Inside Pockets: 0 Material: Water Resistant Canvas 2 Way Snap: No Rain Flap: Water-Resistant Back Straps / Shoulder Straps: Yes / Optional Back Pack Attachment - 4375 Closure Tab: Zipper Bottom Material: Water-Resistant Canvas Wheels: No Magnet: No Made in the USA?: Yes Product Number: 5005S5 Product Name: Steel Double Action Rigging Carabiner Option Number: N/A Length: 4.68" Width: 3.07" Weight: 10.5 oz Material: Alloy Steel Diameter of Eye: No Eye Gate Opening Capacity: 0.94" Gate Strength: 3,600 lbs. Breaking Strength: 11,240 lbs. (50KN) Standards Met: CSA Z259.12 / ANSI Z359.12 Other: Double Action (2) Made in the USA?: Yes Product Number: P9J8V-+M-34 Product Name: 5/16" PRUSIK LOOP WITH AN ALUMINUM RING Material: Warpspeed Red Rope Prusik Type: Prusik w/ Aluminum Ring Rope Size: 5/16" Length: 34" Max Weight Capacity: 350 lbs when fully equipped Standards: ANSI Z133 Weight: 0.3 lbs. Made in the USA?: Yes Product Number: P9C8V-10-16S Product Name: 8MM WARPSPEED 16" ENDLESS LOOP Material: 8MM DYNEEMA ROPE Prusik Type: Endless Loop Rope Size: 8MM Length: 16" MBS: 5,000 LBF Weight: .09 lbs. Made in the USA?: Yes Product Number: 3903S-6 Product Name: BuckLink™ Sling Overall Length: 6' Width: 3/4" Spectra Connector Material: N/A Material Type: Spectra Weight: 1 lb. User Capacity: 5,000 lbs. individual rated loops Product Type: Sling Standards: EN362-2004, ANSI/ASSE Z359.12-2009, CSA Z259.12-01 & CSA Z259.12-11 (1711 Snap). Made in the USA?: Yes Product Number: 39SAM27Q2-250 Product Name: OX Handline Length: 250' Width: 1/2" Stitched Eyes: Yes (2) w/ nylon tubing Made in the USA?: Yes
