Buckingham 50061K31 Ultimate OX™ Kit w/ BuckLink™ Slings - 50061K31 - 250ft
Available*
Item # 376507614
Model # 50061K31
$6,039.98
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Blocks
Safety Equipment
Personnel Retrieval
Blocks-Placing-Prelashing- Overlashing
Buckingham Manufacturing
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
Buckingham 50061K31 Ultimate OX™ Kit w/ BuckLink™ Slings - 50061K31 - 250ft
Buckingham 50061K31 Ultimate OX™ Kit w/ BuckLink™ Slings - 50061K31 - 250ft
The Ultimate OX™ Kit w/ BuckLink™ Slings is a complete rigging system that puts numerous rigging options at the user’s fingertips. It allows the rigging professional to handle loads with greater control. When lowering loads, tension is transferred from the worker to the Ox Block®. For example, the user can create a 4-to-1 mechanical advantage up to a 50’ working height. Similarly, the user can create a 5-to-1 mechanical advantage up to a 35’ working height.
The Ultimate Ox Kit fits in a small, self-contained bag and can be stored in the back of a truck with ease.
Handline Length 250 ft. SKU: 50061K31

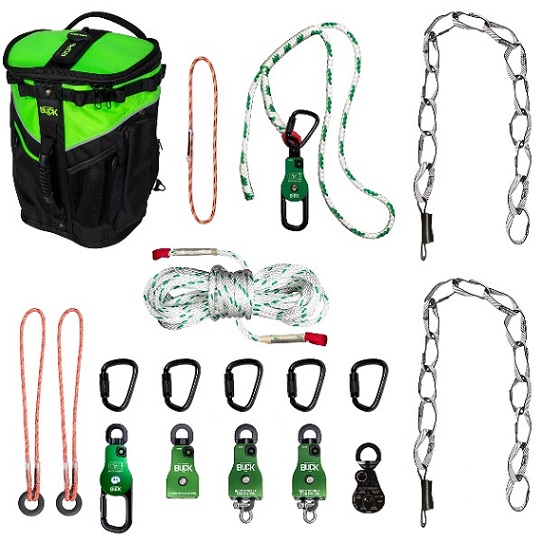

Description Ultimate OX™ Kit w/ BuckLink™ Slings contains:
OX BLOCK™ Swivel Eye & Carabiner w/4' Sling - 50061A-4 (Qty: 1) OX BLOCK™ – 50061 (Qty: 1) Buck Side Swivel Single Sheath - 50071B1 (Qty: 1) Buck Side Swivel Double Sheath - 50071B2 (Qty: 2) Single Sheave BuckRigger™ - 5007R1 (QTY: 1) Rope Bag - 4373 with 400ft version or 4374 with 250ft versions (Qty: 1) Rope (250') - 39SAM27Q2-250 (Qty: 1) or Rope (400') - 39SAM27Q2-400(Qty: 1) Steel Double Action Carabiner - 5005S5 (Qty: 5) Prusik Loop with Aluminum Ring - P9J8V-+M-34 (Qty: 2) 8mm Warpspeed 16" Endless Loop - P9C8V-10-16S (QTY: 1) BuckLink™ Sling - 3903SQ2-6 -903S (Qty: 2)
Specifications Ultimate OX™ Kit w/ BuckLink™ Slings Product Number 50061A-4 Product Name OX BLOCK™ HANDLINE ASSEMBLY Material Polyester Rope, Aluminum OX Block (50061), Alloy Steel Snap (5005S3), Steel Hook (2406) Length 4' Sling (Rope), 8.27" OX Block (50061), 4.68" snap (5005S3) Width 5/8" Rope, 1.99" OX Block (50061), 3.07" snap (5005S3) Weight Rating 5,000 lbs Weight 4.25 lbs Breaking Strength Snap (5005S3)- MBS 11,240lbs (50KN), OX Block (50061)- MBS (Sheave to eye)- 10,000lbf/MBS (Hook to eye)- 6,000lbf. WLL-50061A-4 (Sling Only)- Straight- 3,200 lbs, Choker- 2,560 lbs, Basket- 6,400lbs. SWL- 2406 (Hook) 500lbs. Links to Relevant Hardware 50061 OX Block™/ 5005S3 Carabiner OX Block Standards ASME B30 Compliant Made in the USA Yes Product Number 50061 Product Name OX Block™ Material Lightweight Aluminum Length 10.5" Width 2" Gate Opening Capacity 1.5" Weight 2.15" Hook to Eye MBS 6,000 lbs WLL 1,500 LBF Sheave to Eye MBS 10,000 Lbs WLL 2,500 LBF Made in the USA Yes Product Number 50071B1 Product Name BUCK SIDE SWIVEL™ Length 7" Width 3" Weight 1.6 lbs Material Aluminum Diameter of Eye Swivel Eye - 1" Breaking Strength MBS - 10000 lbf (44KN) / WLL - 2500 lbf (11KN) Other Max Rope Diameter - 5/8" (16mm) / 5/8" x 2 1/8" Sealed Ball Bearing Pulley Thickness - 1.813" (46mm) Made in the USA Yes Product Number 50071B2 Product Name Dual Buck Side Swivel Length 8" Width 3" Weight 2.6 lbs Material Aluminum Option Number N/A Diameter of Eye Swivel Eye (upper eye) - 1" / Becket Eye (lower eye) - 0.8" Lower Eye Shackle: Yes Breaking Strength MBS 10000 lbf 44(kn) Diameter Rope Capacity 5/8" (16mm) Other Double Pulley Made in the USA Yes Product Number: 5007R1 Weight: 9.2 oz Height: 5.3" (135mm) Width: 2.5" (63mm) Thickness: 1.2" (30mm) Material: Aluminum Pulley Size: 1.5" (38mm) Max Rope Diameter: 1/2" (13mm) Breaking Strength: 8000 lbf (36kN) Weight Rating: WLL - 2000 lbf (8kN) Made in the USA Yes Product Number: 4373(400' version) or 4374(250' version) Product Name ROPEPRO™ DELUXE BAG BY BUCKINGHAM INTERNATIONAL Height 16" Width 14" Depth 16" Weight 3.2 lbs Number of Pockets 6 Outside Pockets 6 Inside Pockets 0 Material Water Resistant Canvas 2 Way Snap No Rain Flap Water-Resistant Back Straps / Shoulder Straps Yes / Optional Back Pack Attachment - 4375 Closure Tab Zipper Bottom Material Water-Resistant Canvas Wheels No Magnet No Attachment Type Rope Bag Bucket Hooks Included N/A Bucket Hook Model N/A Standards N/A Made in the USA Yes Product Number: 5005S5 Product Name Steel Double Action Rigging Carabiner Option Number N/A Length 4.68" Width 3.07" Weight 10.5 oz Material Alloy Steel Diameter of Eye No Eye Gate Opening Capacity 0.94" Gate Strength 3,600 lbs. Breaking Strength 11,240 lbs. (50KN) Standards Met CSA Z259.12 / ANSI Z359.12 Other Double Action (2) Made in the USA Yes Product Number: P9J8V-+M-34 Product Name 5/16" PRUSIK LOOP WITH AN ALUMINUM RING Material Warpspeed Red Rope Prusik Type Prusik w/ Aluminum Ring Rope Size 5/16" Length 34" Max Weight Capacity 350 lbs when fully equipped Standards ANSI Z133 Weight 0.3 lbs Made in the USA Yes Product Number: P9C8V-10-16S Product Name: 8MM WARPSPEED 16" ENDLESS LOOP Material: 8MM DYNEEMA ROPE Prusik Type: Endless Loop Rope Size: 8MM Length: 16" MBS: 5,000 LBF Weight: .09 lbs Made In USA?: Yes Product Number: 3903SQ2-6 Product Name BuckLink™ Sling Overall Length 6' Width 3/4" Spectra Connector Material N/A Material Type Spectra Weight 1 lb. User Capacity 5,000 lbs. individual rated loops Product Type Sling Standards EN362-2004, ANSI/ASSE Z359.12-2009, CSA Z259.12-01 & CSA Z259.12-11 (1711 Snap). Links to Relevant Hardware N/A Made in the USA Yes Product Number: 39SAM27Q2-250 or 39SAM27Q2-400 Product Name: OX Handline Length: 250' or 400' Width: 1/2" Stitched Eyes: Yes (2) w/ nylon tubing Made in the USA: Yes Total Kit Weight 39 lbs.
Buckingham 50061K31 Ultimate OX™ Kit w/ BuckLink™ Slings - 50061K31 - 250ft
The Ultimate OX™ Kit w/ BuckLink™ Slings is a complete rigging system that puts numerous rigging options at the user’s fingertips. It allows the rigging professional to handle loads with greater control. When lowering loads, tension is transferred from the worker to the Ox Block®. For example, the user can create a 4-to-1 mechanical advantage up to a 50’ working height. Similarly, the user can create a 5-to-1 mechanical advantage up to a 35’ working height.
The Ultimate Ox Kit fits in a small, self-contained bag and can be stored in the back of a truck with ease.
Handline Length 250 ft. SKU: 50061K31
Description Ultimate OX™ Kit w/ BuckLink™ Slings contains:
OX BLOCK™ Swivel Eye & Carabiner w/4' Sling - 50061A-4 (Qty: 1) OX BLOCK™ – 50061 (Qty: 1) Buck Side Swivel Single Sheath - 50071B1 (Qty: 1) Buck Side Swivel Double Sheath - 50071B2 (Qty: 2) Single Sheave BuckRigger™ - 5007R1 (QTY: 1) Rope Bag - 4373 with 400ft version or 4374 with 250ft versions (Qty: 1) Rope (250') - 39SAM27Q2-250 (Qty: 1) or Rope (400') - 39SAM27Q2-400(Qty: 1) Steel Double Action Carabiner - 5005S5 (Qty: 5) Prusik Loop with Aluminum Ring - P9J8V-+M-34 (Qty: 2) 8mm Warpspeed 16" Endless Loop - P9C8V-10-16S (QTY: 1) BuckLink™ Sling - 3903SQ2-6 -903S (Qty: 2)
Specifications Ultimate OX™ Kit w/ BuckLink™ Slings Product Number 50061A-4 Product Name OX BLOCK™ HANDLINE ASSEMBLY Material Polyester Rope, Aluminum OX Block (50061), Alloy Steel Snap (5005S3), Steel Hook (2406) Length 4' Sling (Rope), 8.27" OX Block (50061), 4.68" snap (5005S3) Width 5/8" Rope, 1.99" OX Block (50061), 3.07" snap (5005S3) Weight Rating 5,000 lbs Weight 4.25 lbs Breaking Strength Snap (5005S3)- MBS 11,240lbs (50KN), OX Block (50061)- MBS (Sheave to eye)- 10,000lbf/MBS (Hook to eye)- 6,000lbf. WLL-50061A-4 (Sling Only)- Straight- 3,200 lbs, Choker- 2,560 lbs, Basket- 6,400lbs. SWL- 2406 (Hook) 500lbs. Links to Relevant Hardware 50061 OX Block™/ 5005S3 Carabiner OX Block Standards ASME B30 Compliant Made in the USA Yes Product Number 50061 Product Name OX Block™ Material Lightweight Aluminum Length 10.5" Width 2" Gate Opening Capacity 1.5" Weight 2.15" Hook to Eye MBS 6,000 lbs WLL 1,500 LBF Sheave to Eye MBS 10,000 Lbs WLL 2,500 LBF Made in the USA Yes Product Number 50071B1 Product Name BUCK SIDE SWIVEL™ Length 7" Width 3" Weight 1.6 lbs Material Aluminum Diameter of Eye Swivel Eye - 1" Breaking Strength MBS - 10000 lbf (44KN) / WLL - 2500 lbf (11KN) Other Max Rope Diameter - 5/8" (16mm) / 5/8" x 2 1/8" Sealed Ball Bearing Pulley Thickness - 1.813" (46mm) Made in the USA Yes Product Number 50071B2 Product Name Dual Buck Side Swivel Length 8" Width 3" Weight 2.6 lbs Material Aluminum Option Number N/A Diameter of Eye Swivel Eye (upper eye) - 1" / Becket Eye (lower eye) - 0.8" Lower Eye Shackle: Yes Breaking Strength MBS 10000 lbf 44(kn) Diameter Rope Capacity 5/8" (16mm) Other Double Pulley Made in the USA Yes Product Number: 5007R1 Weight: 9.2 oz Height: 5.3" (135mm) Width: 2.5" (63mm) Thickness: 1.2" (30mm) Material: Aluminum Pulley Size: 1.5" (38mm) Max Rope Diameter: 1/2" (13mm) Breaking Strength: 8000 lbf (36kN) Weight Rating: WLL - 2000 lbf (8kN) Made in the USA Yes Product Number: 4373(400' version) or 4374(250' version) Product Name ROPEPRO™ DELUXE BAG BY BUCKINGHAM INTERNATIONAL Height 16" Width 14" Depth 16" Weight 3.2 lbs Number of Pockets 6 Outside Pockets 6 Inside Pockets 0 Material Water Resistant Canvas 2 Way Snap No Rain Flap Water-Resistant Back Straps / Shoulder Straps Yes / Optional Back Pack Attachment - 4375 Closure Tab Zipper Bottom Material Water-Resistant Canvas Wheels No Magnet No Attachment Type Rope Bag Bucket Hooks Included N/A Bucket Hook Model N/A Standards N/A Made in the USA Yes Product Number: 5005S5 Product Name Steel Double Action Rigging Carabiner Option Number N/A Length 4.68" Width 3.07" Weight 10.5 oz Material Alloy Steel Diameter of Eye No Eye Gate Opening Capacity 0.94" Gate Strength 3,600 lbs. Breaking Strength 11,240 lbs. (50KN) Standards Met CSA Z259.12 / ANSI Z359.12 Other Double Action (2) Made in the USA Yes Product Number: P9J8V-+M-34 Product Name 5/16" PRUSIK LOOP WITH AN ALUMINUM RING Material Warpspeed Red Rope Prusik Type Prusik w/ Aluminum Ring Rope Size 5/16" Length 34" Max Weight Capacity 350 lbs when fully equipped Standards ANSI Z133 Weight 0.3 lbs Made in the USA Yes Product Number: P9C8V-10-16S Product Name: 8MM WARPSPEED 16" ENDLESS LOOP Material: 8MM DYNEEMA ROPE Prusik Type: Endless Loop Rope Size: 8MM Length: 16" MBS: 5,000 LBF Weight: .09 lbs Made In USA?: Yes Product Number: 3903SQ2-6 Product Name BuckLink™ Sling Overall Length 6' Width 3/4" Spectra Connector Material N/A Material Type Spectra Weight 1 lb. User Capacity 5,000 lbs. individual rated loops Product Type Sling Standards EN362-2004, ANSI/ASSE Z359.12-2009, CSA Z259.12-01 & CSA Z259.12-11 (1711 Snap). Links to Relevant Hardware N/A Made in the USA Yes Product Number: 39SAM27Q2-250 or 39SAM27Q2-400 Product Name: OX Handline Length: 250' or 400' Width: 1/2" Stitched Eyes: Yes (2) w/ nylon tubing Made in the USA: Yes Total Kit Weight 39 lbs.
