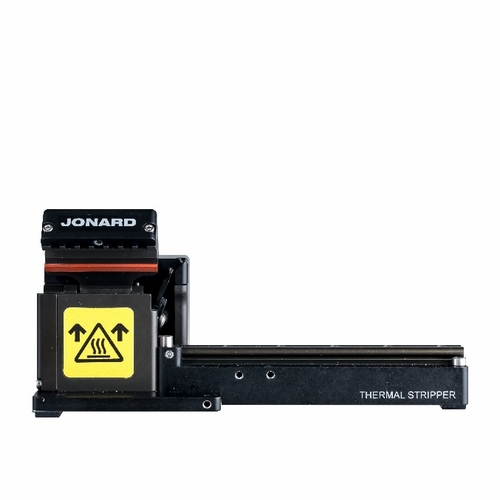

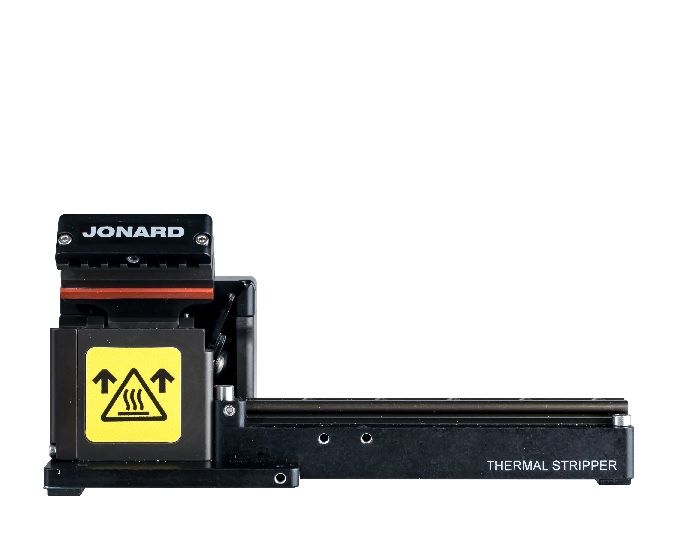

Jonard Tsfb-125 Thermal Stripper Fixed Blade 811490011236

Jonard Tsfb-125 Thermal Stripper Fixed Blade 811490011236

Designed To Thermomechanically Remove Coatings From Optical Fibers With Cladding, This Thermal Stripper Is Perfect For Stripping Extremely Difficult Or Baked-On Coatings With Ease. This Thermal Stripper Also Features The Following:

Heater Is Adjustable Up To 200�C, Far Hotter Than Any Competing Product Has The Ability To Remove Some Fluoroacrylate Undercoatings Using High Temperature Adjustable Temperature And Time Settings Allow It To Adapt To A Wide Range Of Acrylate Coatings And Cladding Sizes Supports Optical Fibers With Cladding Diameter Of 125 �m, With Buffer Diameters From 250 �m To 900 �m, Including 250 �m, 400 �m, And 900 �m Coated Fibers Compact And Low-Maintenance Benchtop Design Makes This Easy And Convenient To Use Compatible With Fitel, Fujikura, And Ericsson Fiber Holder Platforms, And A Universal Clamp For Ldf Or Any Other Type Of Fiber (Each Sold Separately) Includes: Fixed Thermal Stripper, Power Supply, Power Cord, Cleaning Brush

Specifications Blade Type Fixed

Supported Fiber Buffers 250 �m-900 �m

Supported Fiber Types 125 �m Cladding

Adjustable Temperature Range 60�C-200�C, Or Ambient

Adjustable Heat Time Range 0-30 Seconds (2 Second Increments)

External Power Supply 100-240 Vac, 47-63 Hz

Dimensions 5.1" X 2.9" X 2.8" (129.5 Mm X 73.5 Mm X 71 Mm)

Weight 2.56 Lb (1.16 Kg)

Upc No. 811490011236Read More
