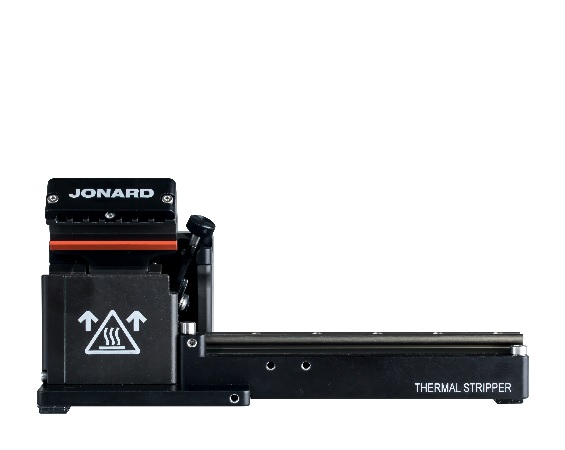

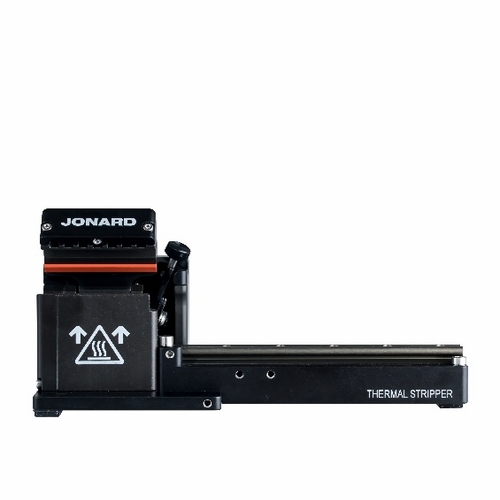

JONARD TSAB-40 Thermal Stripper Adjustable Blade 811490011243
Available*
Item # 37304840
Model # TSAB-40
$2,779.85
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Stripper
Fiber Optic Products
Hand Tools
Wire Strippers- Cable Sheath- Web Slitters
Jonard Industries Corp
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
JONARD TSAB-40 Thermal Stripper Adjustable Blade 811490011243
Designed to thermomechanically remove coatings from optical fibers with cladding, this adjustable thermal stripper is perfect for stripping extremely difficult or baked-on coatings with ease. This thermal stripper also features the following:
Heater is adjustable up to 200°C, far hotter than any competing product Has the ability to remove some fluoroacrylate undercoatings using high temperature Adjustable temperature and time settings allow it to adapt to a wide range of acrylate coatings and cladding sizes Supports optical fibers with cladding diameters from 30 µm to 1000 µm, with buffer diameters up to 1200 µm, including 250 µm, 400 µm, and 900 µm coated fibers Compact and low-maintenance benchtop design makes this easy and convenient to use Supports Fitel, Fujikura, and Ericsson fiber holder platforms, and a Universal Clamp for LDF or any other type of fiber (each sold separately) Includes: Adjustable Thermal Stripper, Power Supply, Power Cord, Cleaning Brush
Specifications Blade Type Adjustable
Supported Fiber Buffers = 1200 µm
Supported Fiber Types 30 µm-1000 µm cladding
Adjustable Temperature Range 60-200°C, or ambient
Adjustable Heat Time Range 0-30 seconds (2 second increments)
External Power Supply 100-240 VAC, 47-63 Hz
Dimensions 5.1" x 2.9" x 2.8" (129.5 mm x 73.5 mm x 71 mm)
Weight 2.79 lb (1.27 kg)
UPC No. 811490011243
Designed to thermomechanically remove coatings from optical fibers with cladding, this adjustable thermal stripper is perfect for stripping extremely difficult or baked-on coatings with ease. This thermal stripper also features the following:
Heater is adjustable up to 200°C, far hotter than any competing product Has the ability to remove some fluoroacrylate undercoatings using high temperature Adjustable temperature and time settings allow it to adapt to a wide range of acrylate coatings and cladding sizes Supports optical fibers with cladding diameters from 30 µm to 1000 µm, with buffer diameters up to 1200 µm, including 250 µm, 400 µm, and 900 µm coated fibers Compact and low-maintenance benchtop design makes this easy and convenient to use Supports Fitel, Fujikura, and Ericsson fiber holder platforms, and a Universal Clamp for LDF or any other type of fiber (each sold separately) Includes: Adjustable Thermal Stripper, Power Supply, Power Cord, Cleaning Brush
Specifications Blade Type Adjustable
Supported Fiber Buffers = 1200 µm
Supported Fiber Types 30 µm-1000 µm cladding
Adjustable Temperature Range 60-200°C, or ambient
Adjustable Heat Time Range 0-30 seconds (2 second increments)
External Power Supply 100-240 VAC, 47-63 Hz
Dimensions 5.1" x 2.9" x 2.8" (129.5 mm x 73.5 mm x 71 mm)
Weight 2.79 lb (1.27 kg)
UPC No. 811490011243
