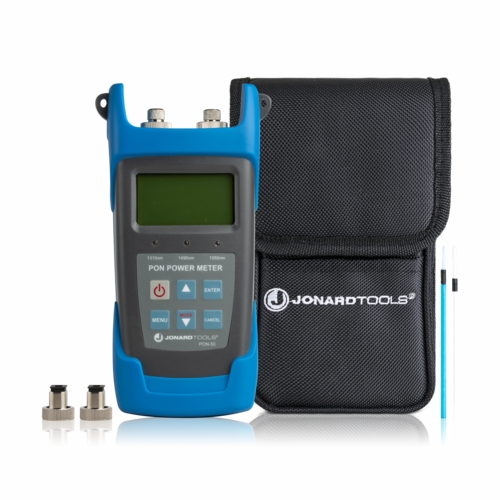

JONARD PON-50 Passive Optical Network Power Meter for BPON/EPON/GPON 811490016095 1G
Available*
Item # 37301995
Model # PON-50
$409.95
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Power Mtr
Fiber Optic Products
OTDR- Power Meter- Light Source- Idenitifiers- VFL
Fiber Power Meter
Jonard Industries Corp
Fiber Optic Power Meter
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
JONARD PON-50 Passive Optical Network Power Meter for BPON/EPON/GPON
Designed to perform live testing with OLT equipment, this PON Power Meter is perfect for use during FTTx/PON service tune-up or maintenance. It is able to simultaneously test and measure the signal power of voice, data, and video connections, and is essential for the construction and maintenance of PON systems. This Power Meter also features the following:
Includes FC and SC adapters to directly connect to UPC/PC FC and SC fiber connectors Analyzes voice, data, and video signals in BPON/EPON/GPON FTTx systems Concurrently measures 1310 nm Upstream Burst Signals and 1490/1550 nm Downstream Signal Measurements anywhere in the network Three pass, warning, and fail LED indicators to allow you to quickly assess your network's power level Supports 1310 nm Upstream Burst Signal and 1490/1550 nm Downstream Signal Measurements USB port allows quick transfer of data, and up to 1,000 measurement items can be saved at once Optional 10 minute auto-off can be activated or deactivated Shatter-resistant sleeve protects it from accidental falls or other damage Included software allows you to set the thresholds, transfer data, and calibrate the wavelength from your PC Specifications Network Types BPON/EPON/GPON
1G
Connector Types FC/SC
Wavelengths 1310 nm, 1490 nm, 1550 nm
Measurement Range -35 dBm?+10 dBm @ 1310/1490 nm, -35~+20 dBm @ 1550 nm
Max Output Power 15 dBm @ 1310/1490 nm, 25 dBm @ 1550 nm
Detector Type InGaAs
Connatural Uncertainty (dB) ±0.5 dB
Linearity (dB) ±0.1 dB
Batteries (3) 1.5V AA
Tool Length 3.5" (8.89 cm)
Tool Weight 0.93 lb (0.423 kg)
Dimensions 6.25" x 9" x 2.8" (15.88 cm x 22.86 cm x 7.11 cm)
UPC # 811490016095
Designed to perform live testing with OLT equipment, this PON Power Meter is perfect for use during FTTx/PON service tune-up or maintenance. It is able to simultaneously test and measure the signal power of voice, data, and video connections, and is essential for the construction and maintenance of PON systems. This Power Meter also features the following:
Includes FC and SC adapters to directly connect to UPC/PC FC and SC fiber connectors Analyzes voice, data, and video signals in BPON/EPON/GPON FTTx systems Concurrently measures 1310 nm Upstream Burst Signals and 1490/1550 nm Downstream Signal Measurements anywhere in the network Three pass, warning, and fail LED indicators to allow you to quickly assess your network's power level Supports 1310 nm Upstream Burst Signal and 1490/1550 nm Downstream Signal Measurements USB port allows quick transfer of data, and up to 1,000 measurement items can be saved at once Optional 10 minute auto-off can be activated or deactivated Shatter-resistant sleeve protects it from accidental falls or other damage Included software allows you to set the thresholds, transfer data, and calibrate the wavelength from your PC Specifications Network Types BPON/EPON/GPON
1G
Connector Types FC/SC
Wavelengths 1310 nm, 1490 nm, 1550 nm
Measurement Range -35 dBm?+10 dBm @ 1310/1490 nm, -35~+20 dBm @ 1550 nm
Max Output Power 15 dBm @ 1310/1490 nm, 25 dBm @ 1550 nm
Detector Type InGaAs
Connatural Uncertainty (dB) ±0.5 dB
Linearity (dB) ±0.1 dB
Batteries (3) 1.5V AA
Tool Length 3.5" (8.89 cm)
Tool Weight 0.93 lb (0.423 kg)
Dimensions 6.25" x 9" x 2.8" (15.88 cm x 22.86 cm x 7.11 cm)
UPC # 811490016095
