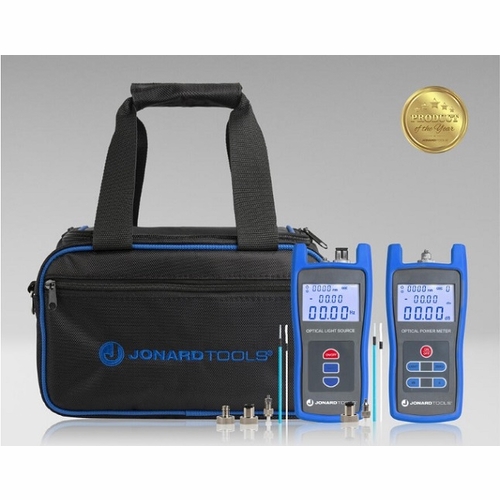

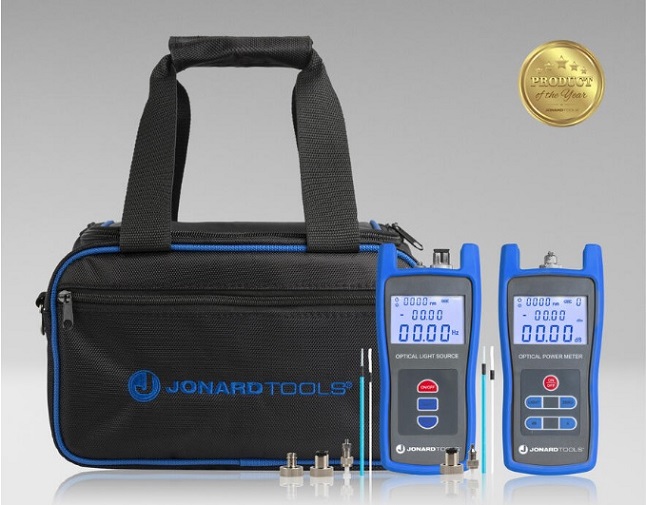

JONARD FPL-5050 Fiber Power Meter & Optical Light Source Kit (-50 to +26 dBm, SM) UPC 810053350492
Available*
Item # 28620092
Model # FPL-5050
$554.95
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Power Mtr
Fiber Optic Products
OTDR- Power Meter- Light Source- Idenitifiers- VFL
Fiber Power Meter
Jonard Industries Corp
Fiber Optic Power Meter
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
JONARD FPL-5050 Fiber Power Meter & Optical Light Source Kit (-50 to +26 dBm, SM) UPC 810053350492
JONARD FPL-5050 Fiber Power Meter & Optical Light Source Kit (-50 to +26 dBm, SM) UPC 810053350492
This tool kit provides everything you need to measure power and provide a stable light source for fiber optic cable testing. The FPL-5050 Fiber Power Meter & Optical Light Source Kit (-50 to +26 dBm, single-mode) includes:
The FPM-50A Fiber Optic Power Meter to measure wavelengths from 800-1650 nm, with a mere 0.01 dB resolution Measures 6 preset calibrated wavelengths with high precision to determine absolute or relative power Includes FC/SC adapters for APC/PC/UPC connectors and an LC adapter for PC/UPC connectors only The FLS-50 Fiber Optic Light Source to provide either 1310 nm or 1550 nm wavelengths for a stable light source for single-mode fiber measurements Has four different modulation outputs (CW, 270 Hz, 1 kHz, 2 kHz) at 1310 nm and 1550 nm wavelengths Includes FC, SC, and LC adapters to directly connect to UPC/PC FC, SC, and LC fiber connectors A FREE BAG! The H-22 Rugged Carrying Case with Straps ($35 value)! Nylon Carry Case (FPM-50A) Protective Cover (FPM-50A) Storage Pouch (FLS-50) With both the FPM-50A and FLS-50 Instruction Manuals (3) AA Batteries each (required for operation) (2) Cleaning Swabs each FC Adapter, LC Adapter, and SC Adapters
Specifications Connector Types FC, SC (APC/PC/UPC) & LC (PC/UPC)
Power Meter Wavelengths 850, 980, 1300, 1310, 1490, 1550, 1625, 1650
Light Source Wavelengths 1310, 1550
Power Measurement Range -50 dBm to +26 dBm
Dimensions 10.5 in x 8.5 in x 6 in (26.67 cm x 21.59 cm x 15.24 cm) Weight 3.5 lb (1589 g) UPC # 810053350492
JONARD FPL-5050 Fiber Power Meter & Optical Light Source Kit (-50 to +26 dBm, SM) UPC 810053350492
This tool kit provides everything you need to measure power and provide a stable light source for fiber optic cable testing. The FPL-5050 Fiber Power Meter & Optical Light Source Kit (-50 to +26 dBm, single-mode) includes:
The FPM-50A Fiber Optic Power Meter to measure wavelengths from 800-1650 nm, with a mere 0.01 dB resolution Measures 6 preset calibrated wavelengths with high precision to determine absolute or relative power Includes FC/SC adapters for APC/PC/UPC connectors and an LC adapter for PC/UPC connectors only The FLS-50 Fiber Optic Light Source to provide either 1310 nm or 1550 nm wavelengths for a stable light source for single-mode fiber measurements Has four different modulation outputs (CW, 270 Hz, 1 kHz, 2 kHz) at 1310 nm and 1550 nm wavelengths Includes FC, SC, and LC adapters to directly connect to UPC/PC FC, SC, and LC fiber connectors A FREE BAG! The H-22 Rugged Carrying Case with Straps ($35 value)! Nylon Carry Case (FPM-50A) Protective Cover (FPM-50A) Storage Pouch (FLS-50) With both the FPM-50A and FLS-50 Instruction Manuals (3) AA Batteries each (required for operation) (2) Cleaning Swabs each FC Adapter, LC Adapter, and SC Adapters
Specifications Connector Types FC, SC (APC/PC/UPC) & LC (PC/UPC)
Power Meter Wavelengths 850, 980, 1300, 1310, 1490, 1550, 1625, 1650
Light Source Wavelengths 1310, 1550
Power Measurement Range -50 dBm to +26 dBm
Dimensions 10.5 in x 8.5 in x 6 in (26.67 cm x 21.59 cm x 15.24 cm) Weight 3.5 lb (1589 g) UPC # 810053350492
