GMP 70364 SUPPORT MANHOLE PLATFORM ALUMINUM 32.50 inch -78 inch
Available*
Item # 32310060
Model # 70364
$325.46
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Platforms
Tools
Manhole- Confined Space
Confined Space Manhole
GMP General Machine Products
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

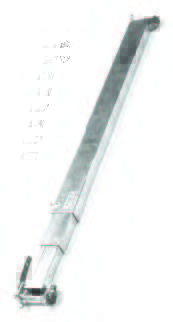

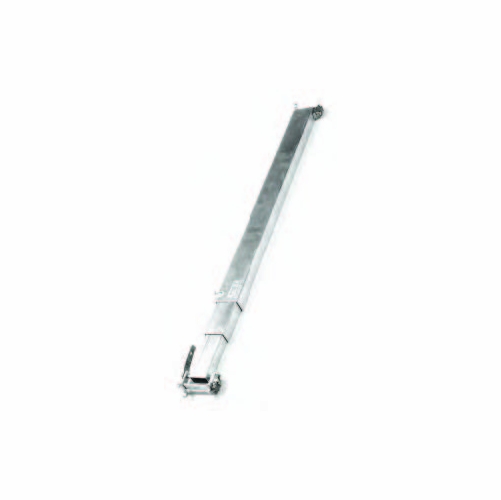

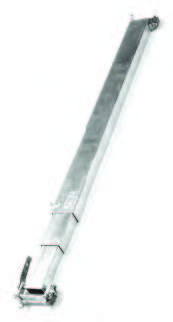

GENERAL MACHINE PRODUCTS 70364 SUPPORT MANHOLE PLATFORM ALUMINUM 32.5"-78
Use two or more of these handy tools with planking to form a temporary platform in a manhole or cable vault.
Available in two lengths, with the smaller unit providing a maximum open working position of 78 in. (198 cm) and a minimum closed working position of 35 in. (89 cm). The larger unit has a maximum open working position of 108 in. (274 cm) and a minimum closed working position of 46 in. (117 cm). The Manhole Platform Support is constructed of high strength 6061 T6 rectangular tubing and provides a maximum working load limit of 500 lbs.
Featured are three telescoping tube lengths, connected to two hangers that fit on the cable racks at opposite sides of the manhole
The inner tube section has a reinforced rubber latch that locks onto the outside of the outer tube to keep the tubes from accidentally extending during handling
The hangers pivot so that you can use the supports even if the racks aren't directly across from each other
There is a spring latch on each end for locking the support in place when in use
Reinforced rubber latch safely keeps the sections together until ready for use
Each unit features three telescoping tube lengths
Spring latch locks the support in place --------------------------------------------------------------------------------
70363 46 - 108 in. (117-274 cm) 16 lbs. (7 kg) 70364 35 - 78 in. (89 - 198 cm) 12 lbs. (5 kg) 13.5LBS
Use two or more of these handy tools with planking to form a temporary platform in a manhole or cable vault.
Available in two lengths, with the smaller unit providing a maximum open working position of 78 in. (198 cm) and a minimum closed working position of 35 in. (89 cm). The larger unit has a maximum open working position of 108 in. (274 cm) and a minimum closed working position of 46 in. (117 cm). The Manhole Platform Support is constructed of high strength 6061 T6 rectangular tubing and provides a maximum working load limit of 500 lbs.
Featured are three telescoping tube lengths, connected to two hangers that fit on the cable racks at opposite sides of the manhole
The inner tube section has a reinforced rubber latch that locks onto the outside of the outer tube to keep the tubes from accidentally extending during handling
The hangers pivot so that you can use the supports even if the racks aren't directly across from each other
There is a spring latch on each end for locking the support in place when in use
Reinforced rubber latch safely keeps the sections together until ready for use
Each unit features three telescoping tube lengths
Spring latch locks the support in place --------------------------------------------------------------------------------
70363 46 - 108 in. (117-274 cm) 16 lbs. (7 kg) 70364 35 - 78 in. (89 - 198 cm) 12 lbs. (5 kg) 13.5LBS
