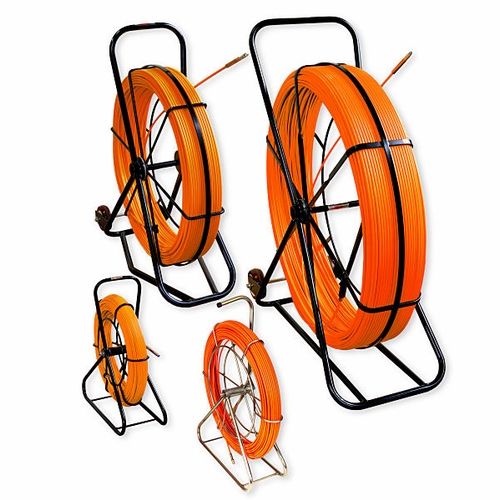

GMP 89210 RODDER DUCT 1/4 inch X 500 foot
Available*
Item # 31251220
Model # 89210
$721.62
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Rodders
Tools
Line Construction- Placing
Rodders- Duct
GMP General Machine Products
Rodder 301 to 600 feet
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GENERAL MACHINE PRODUCTS 89210 RODDER DUCT 1/4" X 500' NEW

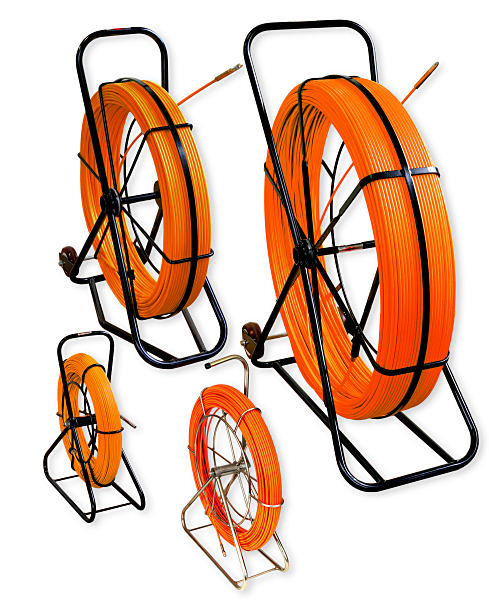

Continuous Duct Rodders One of the new additions to our line as a result of the acquisition of CBS Products in the UK is our superior line of duct rodders. We’ve brought this technology to GENERAL MACHINE PRODUCTS where we now produce what are the best performing and most durable duct rodders available anywhere - at a price that represents the very best value. Decades of in-field use have proven this high visibility orange rod material to have the ideal combination of the mechanical properties of tensile strength, modulus, stiffness and bending behavior. When loaded onto our durable yet maneuverable dispenser/carriers these duct rodders are fundamentally essential tools for underground tasks such as cleaning and locating ducts, threading lines or pulling cables Rodders come equipped with a male threaded end fitting and tapered head on the leading end and a female threaded fitting on the back end Our carriers are made of tubular steel alloy and are powder coated or electro-galvanized for corrosion resistance. Larger diameter carriers have inboard wheels for easier transport at the jobsite. Each carrier is fitted with a hand-operated brake to control payout. Please refer to the following tables for specific lengths in each size.
Our fiberglass rod is not pultruded like others. It is produced instead using a proprietary process where glass fibers are strictly unidirectional with optimal fiber density of 80%. The fibers are fully impregnated in resin and then bi-axially wound with hi-strength filaments before being completely embedded in the orange polypropylene thermoplastic jacket. This gives our rod its excellent handling characteristics throughout its long life without the protruding reinforcement fibers that can appear over time in other rods.
Nominal End Fitting Rod Tensile Rated Pull Minimum Size Threads Strength 1 Strength 2 Bend Radius 1/4 in. 6600 lb. - f 500 lb. - f 7.4 in. (6.7 mm) 5/16 - 18 (29.5 kN) (2.2 kN) (188 mm) 3/8 in. 10,000 lb. - f 1400 lb. - f 9 in. (9 mm) 3/8 - 16 (45.2 kN) (6.2 kN) (230 mm) 1/2 in. 21,000 lb. - f 1800 lb. - f 18 in. (12 mm) 3/8 - 16 (95.2 kN) (8.0 kN) (450 mm) 1 These values are supplied for relative comparison only and are not to be used as a working load rating. 2 Based on a factor of 2:1 of the glued end fitting conection.
P/N 1/4 in. (6.7 mm) Duct Rodders Weight 89202 1/4 in. (6.7 mm) X 100 ft. (30 m) 13 lbs. (6 kgs) 89204 1/4 in. (6.7 mm) X 200 ft. (61 m) 15 lbs. (7 kgs) 89206 1/4 in. (6.7 mm) X 300 ft. (91 m) 17 lbs. (8 kgs) 89208 1/4 in. (6.7 mm) X 400 ft. (122 m) 19 lbs. (9 kgs) 89210 1/4 in. (6.7 mm) X 500 ft. (152 m) 21 lbs. (10 kgs)
