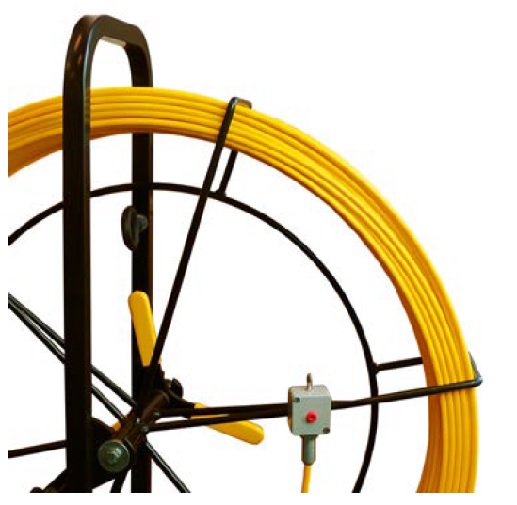

DCD 52200-400 Detectable Reel Rod - Deluxe With Accessories 3/16 inch X 400 Ft.
Available*
Item # 30509346
Model # 52200-400
$1,048.22
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Rodders
Tools
Line Construction- Placing
Rodders- Duct
DCD Design And Manufacturing Ltd
Rodder 301 to 600 feet
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
DCD 52200-400 Detectable Reel Rod - Deluxe With Accessories 3/16 inch X 400 Ft.
DCD 52200-400 Detectable Reel Rod - Deluxe With Accessories 3/16 inch X 400 Ft.
Part # 52200-400 Description Detectable Reel Rod - Deluxe With Accessories 3/16 inch X 400 Ft. Weight 12.0 lb Deluxe Rod Accessories include: Splice Connectors (2) Flexible Guide Head (1) Roller Guide (1) Male Rod End (1) Fiberglass Adhesive (1) Rod Gripper (1) Accessory Pouch (1)
DCD Detectable Duct Rodders purpose is to be able to accurately locate existing ducting underground or to locate the position of a blockage within a duct. Each DCD detectable duct rod unit is supplied with a terminal box mounted on the frame with male and female banana terminals for external hook up. It is recommended that a Roller Guide (57150 series) be used in order to better make the connection between the end of the rod and the wall of the ducting. This is necessary in order to complete the circuit back to earth. Any transmitter can then be hooked up to the terminal box with the second lead from the transmitter going to ground (spike into earth). Once switched on, the signal will be transmitted along the duct rod and a standard locator can then be used to locate the signal source from above ground. DCD also offers various stainless steel Sonde Adapters (57170 series) for attaching a sonde unit to the Swivel Rod End (57135 series). The Detectable Duct Rodders use 20 to 25 gauge copper wire. Note: Caution should be exercised when ordering long lengths because the signal will diminish with distance traveled.
DCD 52200-400 Detectable Reel Rod - Deluxe With Accessories 3/16 inch X 400 Ft.
Part # 52200-400 Description Detectable Reel Rod - Deluxe With Accessories 3/16 inch X 400 Ft. Weight 12.0 lb Deluxe Rod Accessories include: Splice Connectors (2) Flexible Guide Head (1) Roller Guide (1) Male Rod End (1) Fiberglass Adhesive (1) Rod Gripper (1) Accessory Pouch (1)
DCD Detectable Duct Rodders purpose is to be able to accurately locate existing ducting underground or to locate the position of a blockage within a duct. Each DCD detectable duct rod unit is supplied with a terminal box mounted on the frame with male and female banana terminals for external hook up. It is recommended that a Roller Guide (57150 series) be used in order to better make the connection between the end of the rod and the wall of the ducting. This is necessary in order to complete the circuit back to earth. Any transmitter can then be hooked up to the terminal box with the second lead from the transmitter going to ground (spike into earth). Once switched on, the signal will be transmitted along the duct rod and a standard locator can then be used to locate the signal source from above ground. DCD also offers various stainless steel Sonde Adapters (57170 series) for attaching a sonde unit to the Swivel Rod End (57135 series). The Detectable Duct Rodders use 20 to 25 gauge copper wire. Note: Caution should be exercised when ordering long lengths because the signal will diminish with distance traveled.
