HASTINGS 8401-B-D 4 foot Platform with Horizontal Rail and Short Clearance Pivot Style Attachment N
Available*
Item # 30853100
Model # 8401-B-D
$3,383.10
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

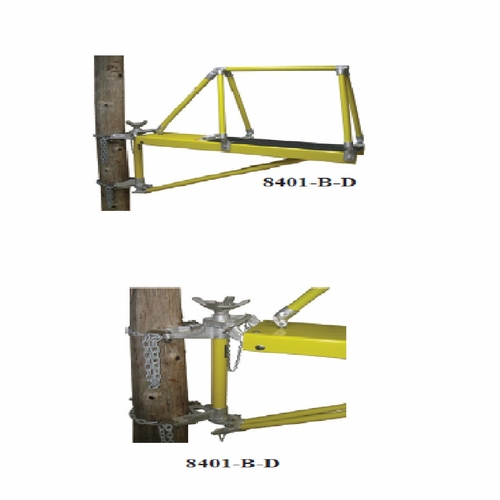

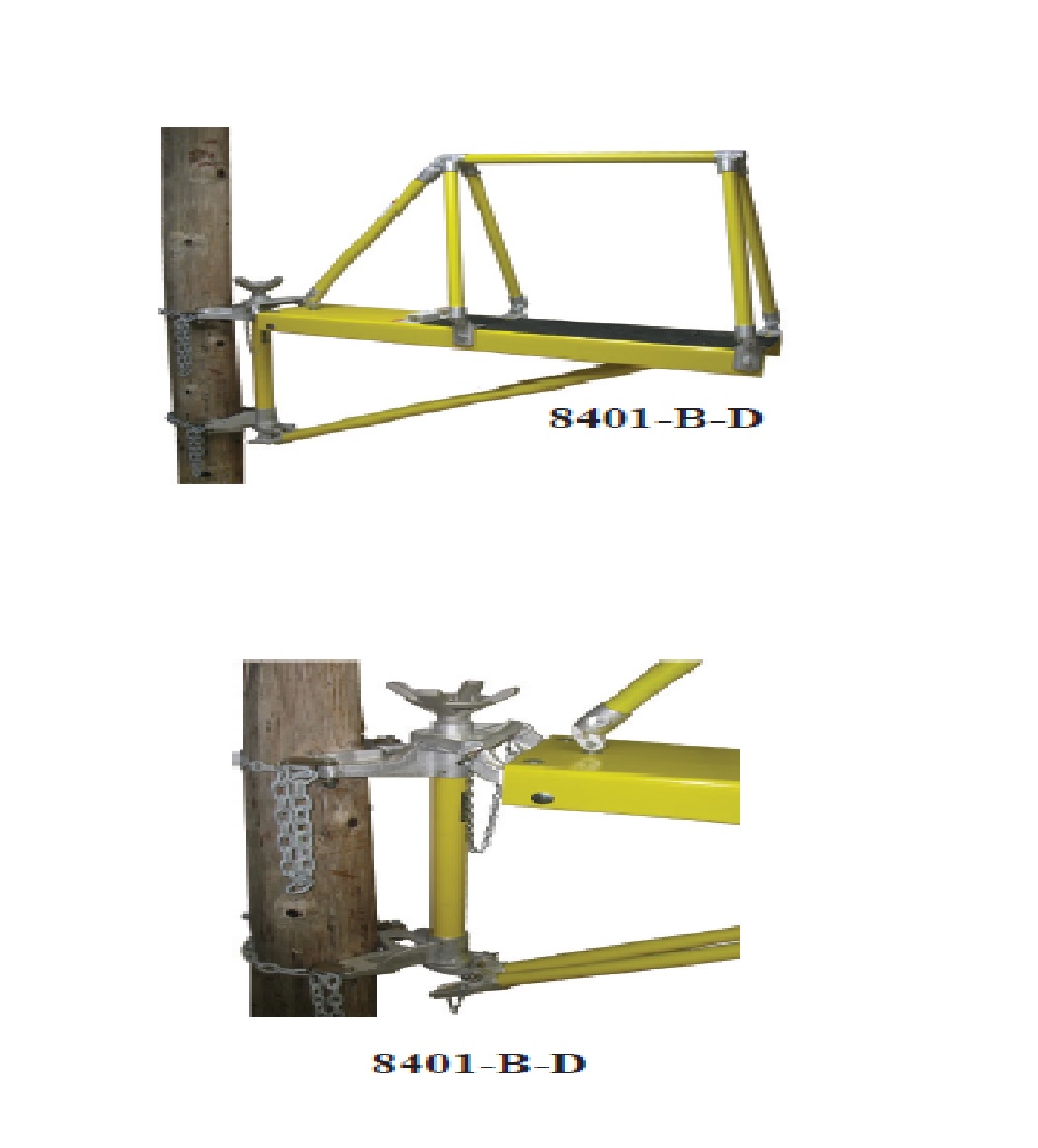

HASTINGS FIBER GLASS PRODUCTS 8401-B-D Platform 4' with Horizontal Rail and Short Clearance Pivot Style Attachment NEW
FIXED OR ADJUSTABLE FIBERGLASS PLATFORM #8401 - 32 lbs o Platform becomes adjustable when used with pivot assembly attachment o Moves 180° under load o If pivot is not used, the platform is non-adjustable o Twin adjustable struts for stability o 4' model will accept tripod rail assembly option o All models will accept the horizontal rail assembly o Complete with braces and chain tightener
"B" HORIZONTAL FIBERGLASS RAIL ASSEMBLY - 12 LBS o Designed to be used with platforms 4', 6', 8', and 10' long o The rail assembly hinges and stores on top of the platform by removing the keeper pin o The horizontal rail assembly is a positioning device that will allow the worker to maintain proper work positioning and balance o Not to be used as an anchor point
"C" PIVOT STYLE ATTACHMENT - 23 LBS o STANDARD PIVOT STYLE ATTACHMENT DISTANCE BETWEEN CHAIN BINDERS - 33" o Pivot style mounting base can be ordered as an option on adjustable style platforms only o Designed to be used with platforms 4', 6', 8', and 10' long o Platform can be positioned in 30 degree increments up to 180 degrees under load by loosening wheel tightener. o Two models available - standard and short clearance models
"D" SHORT CLEARANCE PIVOT STYLE ATTACHMENT -17 lbs o DISTANCE BETWEEN CHAIN BINDERS - 21" o TO BE USED WITH CATALOG NUMBERS 8401 AND 8402
SPECIFICATIONS o 4' PLATFORM with HORIZONTAL FIBERGLASS RAIL ASSEMBLY, PIVOT STYLE ATTACHMENT, SHORT CLEARANCE PIVOT STYLE ATTACHMENT o LOAD LIMIT - 500 LBS
WEIGHT: 84 LBS
FIXED OR ADJUSTABLE FIBERGLASS PLATFORM #8401 - 32 lbs o Platform becomes adjustable when used with pivot assembly attachment o Moves 180° under load o If pivot is not used, the platform is non-adjustable o Twin adjustable struts for stability o 4' model will accept tripod rail assembly option o All models will accept the horizontal rail assembly o Complete with braces and chain tightener
"B" HORIZONTAL FIBERGLASS RAIL ASSEMBLY - 12 LBS o Designed to be used with platforms 4', 6', 8', and 10' long o The rail assembly hinges and stores on top of the platform by removing the keeper pin o The horizontal rail assembly is a positioning device that will allow the worker to maintain proper work positioning and balance o Not to be used as an anchor point
"C" PIVOT STYLE ATTACHMENT - 23 LBS o STANDARD PIVOT STYLE ATTACHMENT DISTANCE BETWEEN CHAIN BINDERS - 33" o Pivot style mounting base can be ordered as an option on adjustable style platforms only o Designed to be used with platforms 4', 6', 8', and 10' long o Platform can be positioned in 30 degree increments up to 180 degrees under load by loosening wheel tightener. o Two models available - standard and short clearance models
"D" SHORT CLEARANCE PIVOT STYLE ATTACHMENT -17 lbs o DISTANCE BETWEEN CHAIN BINDERS - 21" o TO BE USED WITH CATALOG NUMBERS 8401 AND 8402
SPECIFICATIONS o 4' PLATFORM with HORIZONTAL FIBERGLASS RAIL ASSEMBLY, PIVOT STYLE ATTACHMENT, SHORT CLEARANCE PIVOT STYLE ATTACHMENT o LOAD LIMIT - 500 LBS
WEIGHT: 84 LBS
