Product Description

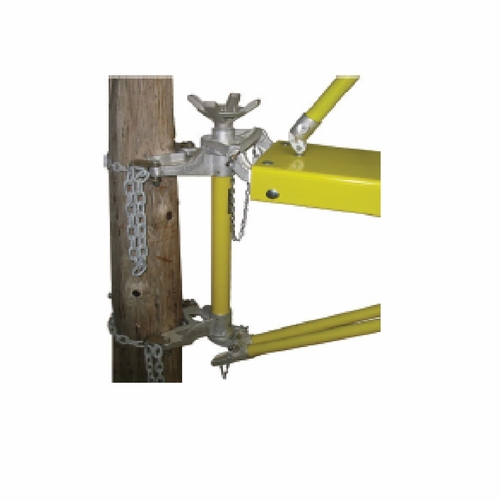

Hastings Fiber Glass Products 8401-B-C Platform 4' With Horizontal Rail And Standard Pivot Style Attachment New
"A" Fixed Or Adjustable Fiberglass Platform #8401 - 32 Lbs
O Platform Becomes Adjustable When Used With Pivot Assembly Attachment
O Moves 180� Under Load
O If Pivot Is Not Used, The Platform Is Non-Adjustable
O Twin Adjustable Struts For Stability
O 4' Model Will Accept Tripod Rail Assembly Option
O All Models Will Accept The Horizontal Rail Assembly
O Complete With Braces And Chain Tightener
"B" Horizontal Fiberglass Rail Assembly - 12 Lbs
O Designed To Be Used With Platforms 4', 6', 8', And 10' Long
O The Rail Assembly Hinges And Stores On Top Of The Platform By Removing The Keeper Pin
O The Horizontal Rail Assembly Is A Positioning Device That Will Allow The Worker To Maintain Proper Work Positioning And Balance
O Not To Be Used As An Anchor Point

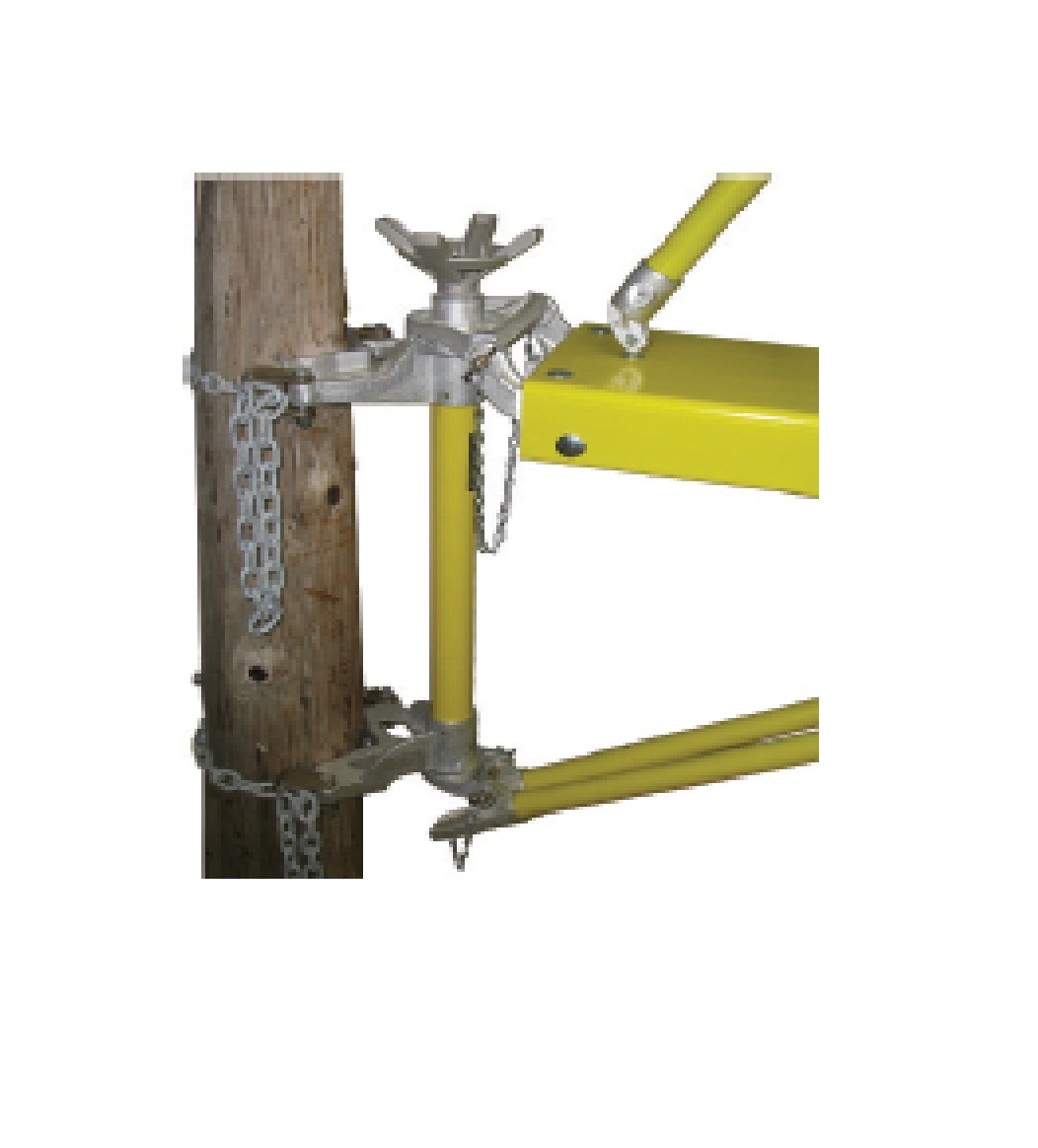

"C" Pivot Style Attachment - 23 Lbs
O Standard Pivot Style Attachment Distance Between Chain Binders - 33"
O Pivot Style Mounting Base Can Be Ordered As An Option On Adjustable Style Platforms Only
O Designed To Be Used With Platforms 4', 6', 8', And 10' Long
O Platform Can Be Positioned In 30 Degree Increments Up To 180 Degrees Under Load By Loosening Wheel Tightener.
O Two Models Available - Standard And Short Clearance Models
Specifications
O 4' Platform With Horizontal Fiberglass Rail Assembly
O Load Limit - 500 Lbs
Weight: 67 LbsRead More
