HASTINGS 13762 Ground Clamp Mtd. On 1 1/4 inch  x 8 foot  Splice Pole

HASTINGS 13762 Ground Clamp Mtd. On 1 1/4 inch x 8 foot Splice Pole

Available*
Item # 30848225
Model # 13762
$700.77
Peac Financing financing available. Learn More
Qty:

* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)

  • Product Description
  • You Might Also like
  • Recently Viewed
CA Prop 65 Warning Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov

Product Description

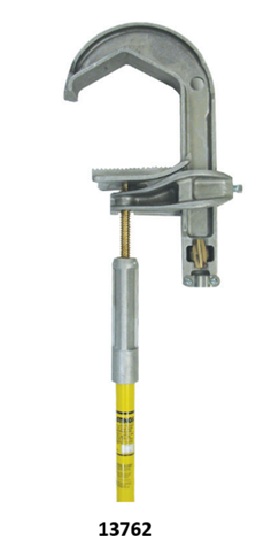

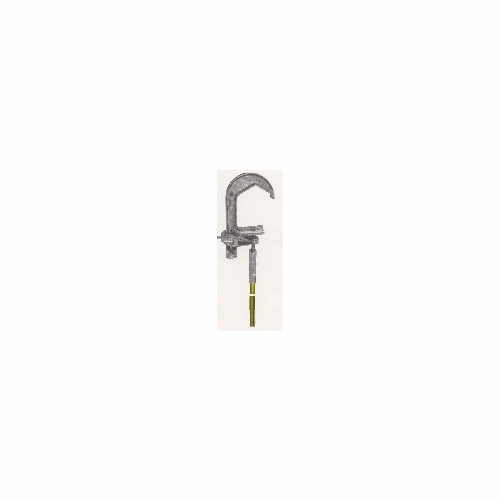

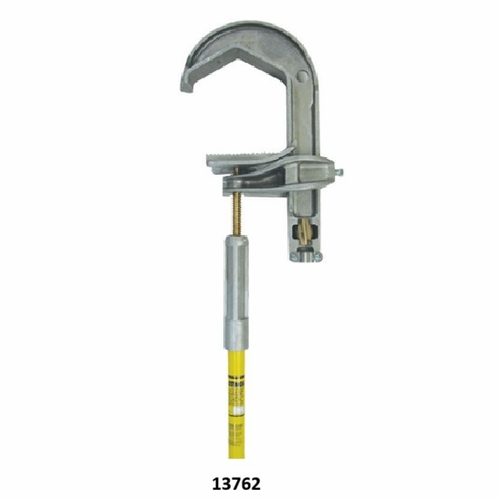

HASTINGS FIBER GLASS PRODUCTS 13762 Ground Clamp Mtd. On 1-1/4" x 8' Splice Pole NEW

SUBSTATION GROUNDING SET AND GROUND LIFTING TOOL o These tools enable operating personnel the capability of grounding de-energized substations safely and easily with use of the ground lifting tool. o Two ranges of ground clamps, both with bolted type pressure terminals. o Ground clamps mounted on an 1-1/4" X 8' fiberglass pole. The bottom end of the clamp mounted pole has a fiberglass male splice to allow extension sections to be added to meet the required height for applying the ground set. o The ground lifting tool has a universal end and has a large opening "C" hook that is coated for protection. o Complete with handline block, adjustable block clamp and 50' of 3/8" polypropylene rope. o Hook and block clamp are mounted on an 8' fiberglass pole with a male splice on the bottom end to allow additional lengths of extensions to be added as required.

SPECIFICATIONS: o MAIN LINE RANGE MAXIMUM : 6.625 inch dia Bus or Cable o MAIN LINE RANGE MINIMUM : 1/0 STR .398 DIA o MAXIMUM CABLE SIZE : 4/0 o MAXIMUM FAULT CURRENT RATING : 54KA@ 15 CYCLES / 39KA@ 30 CYCLES

WEIGHT : 8.5 LBS
