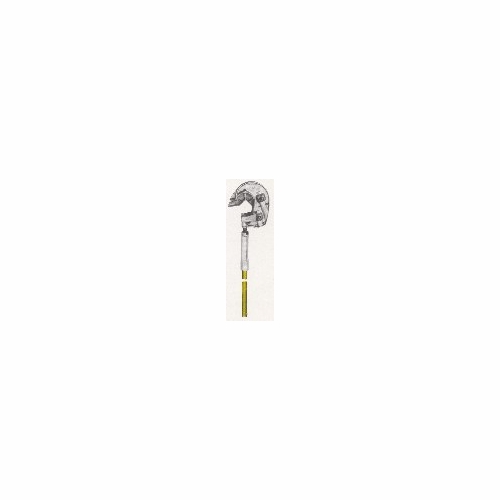

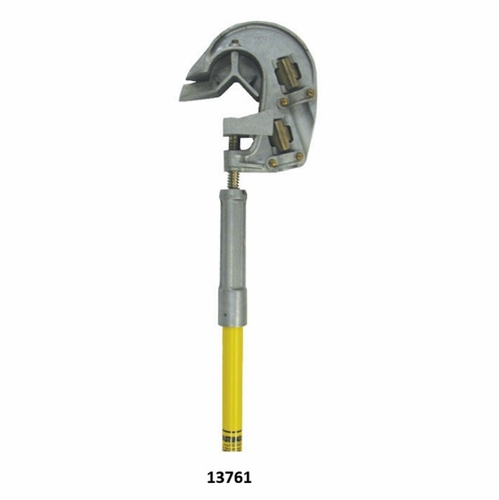

HASTINGS 13761 Ground Clamp Mtd. On 1 1/4 inch x8 foot Splice Pole
Available*
Item # 30848220
Model # 13761
$628.90
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

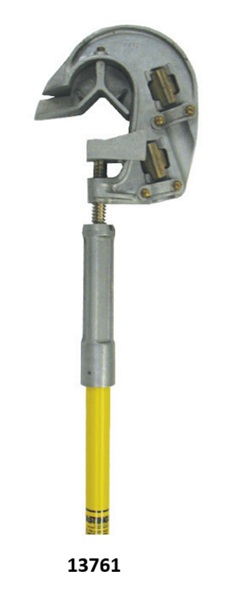

HASTINGS FIBER GLASS PRODUCTS 13761 Ground Clamp Mtd. On 1 1/4"x8' Splice Pole NEW
SUBSTATION GROUNDING SET AND GROUND LIFTING TOOL o These tools enable operating personnel the capability of grounding de-energized substations safely and easily with use of the ground lifting tool. o Two ranges of ground clamps, both with bolted type pressure terminals. o Ground clamps mounted on an 1-1/4" X 8' fiberglass pole. The bottom end of the clamp mounted pole has a fiberglass male splice to allow extension sections to be added to meet the required height for applying the ground set. o The ground lifting tool has a universal end and has a large opening "C" hook that is coated for protection. o Complete with handline block, adjustable block clamp and 50' of 3/8" polypropylene rope. o Hook and block clamp are mounted on an 8' fiberglass pole with a male splice on the bottom end to allow additional lengths of extensions to be added as required.
SPECIFICATIONS: o MAIN LINE RANGE MAXIMUM : 3 inch dia Bus or Cable o MAIN LINE RANGE MINIMUM : 6 Str - 18 dia o MAXIMUM CABLE SIZE : 4/0 o MAXIMUM FAULT CURRENT RATING : 54KA@ 15 CYCLES / 39KA@ 30 CYCLES
WEIGHT : 7.5 LBS
SUBSTATION GROUNDING SET AND GROUND LIFTING TOOL o These tools enable operating personnel the capability of grounding de-energized substations safely and easily with use of the ground lifting tool. o Two ranges of ground clamps, both with bolted type pressure terminals. o Ground clamps mounted on an 1-1/4" X 8' fiberglass pole. The bottom end of the clamp mounted pole has a fiberglass male splice to allow extension sections to be added to meet the required height for applying the ground set. o The ground lifting tool has a universal end and has a large opening "C" hook that is coated for protection. o Complete with handline block, adjustable block clamp and 50' of 3/8" polypropylene rope. o Hook and block clamp are mounted on an 8' fiberglass pole with a male splice on the bottom end to allow additional lengths of extensions to be added as required.
SPECIFICATIONS: o MAIN LINE RANGE MAXIMUM : 3 inch dia Bus or Cable o MAIN LINE RANGE MINIMUM : 6 Str - 18 dia o MAXIMUM CABLE SIZE : 4/0 o MAXIMUM FAULT CURRENT RATING : 54KA@ 15 CYCLES / 39KA@ 30 CYCLES
WEIGHT : 7.5 LBS
